Switching and protective devices

Electronic earth leakage add-on block 4P 125A Sensitivity fix HBA128H

EAN

3250613121075

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

Download the data sheet

Complete your system

Referenced by 22 products available

Technical properties

Rated current

125 A
Rated residual operating current Idn

300 mA

Number of poles

4

Residual current type

A HI

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6,000 V

Cross-section of input and output with screws, for massive conductors

2.5 - 95.0 mm²
Cross-section of input and output with screws, for flexible conductors

2.5 - 70.0 mm²

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration HBA128H

PDF

Hager RoHS report HBA128H

PDF

Downloads

Product image

Product Image HBA128H

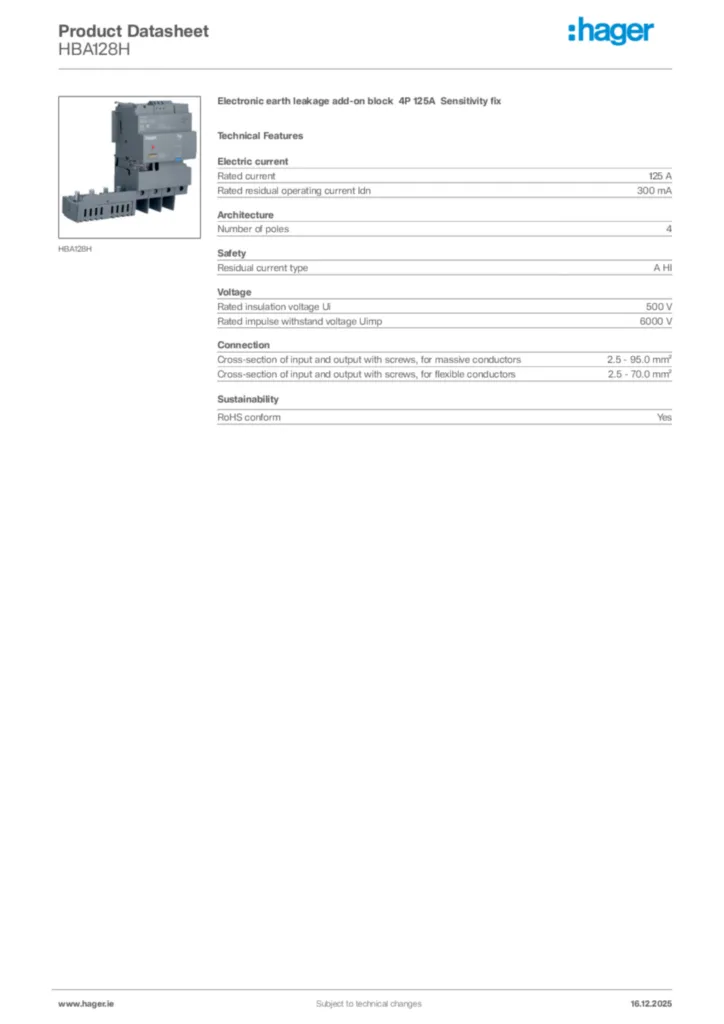

Product datasheet

Hager Product data sheet HBA128H

Electronic earth leakage add-on block 4P 125A Sensitivity fix

PDF
Installation manual

Installation manual fr-FR, en-GB, de-DE, it-IT, es-ES, nl-NL, pt-PT, nn-NO, el-GR, pl-PL, ru-RU 2024-01-05

PDF

5,77 MB
Declaration of conformity

Declaration

Declaration of conformity International 2022-08-08

PDF

1,16 MB
