Shunt trip Release h1600 24V DC HXF001H
EAN
3250613113438
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 16 products available
Referenced by
-
HNF990HMoulded Case Circuit Breaker h1600 3P 50kA 1600A LSI
-
HCF990HSwitch h1600 3P 1600A
-
HCF991HSwitch h1600 4P 1600A
-
HEF980HMoulded Case Circuit Breaker h1600 3P 70kA 1250A LSI
-
HNF991HMoulded Case Circuit Breaker h1600 4P 50kA 1600A LSI
-
HNE800HMoulded Case Circuit Breaker h1000 3P 50kA 800A LSI
-
HEE801HMoulded Case Circuit Breaker h1000 4P 70kA 800A LSI
-
HEF981HMoulded Case Circuit Breaker h1600 4P 70kA 1250A LSI
-
HNF981HMoulded Case Circuit Breaker h1600 4P 50kA 1250A LSI
-
HEF990HMoulded Case Circuit Breaker h1600 3P 70kA 1600A LSI
-
HEF991HMoulded Case Circuit Breaker h1600 4P 70kA 1600A LSI
-
HNE801HMoulded Case Circuit Breaker h1000 4P 50kA 800A LSI
-
HCF981HSwitch h1600 4P 1250A
-
HNF980H
Moulded Case Circuit Breaker h1600 3P 50kA 1250A LSI
-
HCF980HSwitch h1600 3P 1250A
-
HEE800HMoulded Case Circuit Breaker h1000 3P 70kA 800A LSI
Technical properties
Power
-
Inrush power absorbed0.72 VA
Safety
-
Ingress Protection (IP) classIP4X
Voltage
-
Command voltage AC0 - 0 V
-
Command voltage DC24 - 24 V
-
Rated operational voltage Ue0 - 0 V
-
Rated operational voltage in DC24 - 24 V
Downloads
-
Product image
-

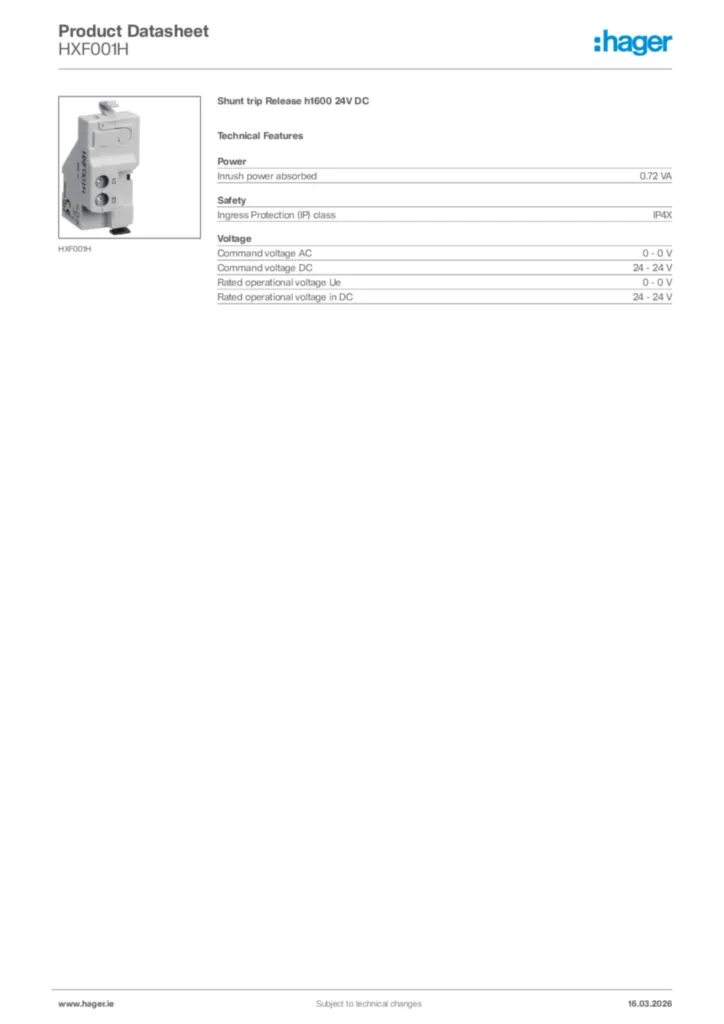

Product datasheet
Hager Product data sheet HXF001H
Shunt trip Release h1600 24V DC
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-06-20
PDF329,36 kB
