Moulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 50kA FTC HMW250NR

EAN

3250613197490

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

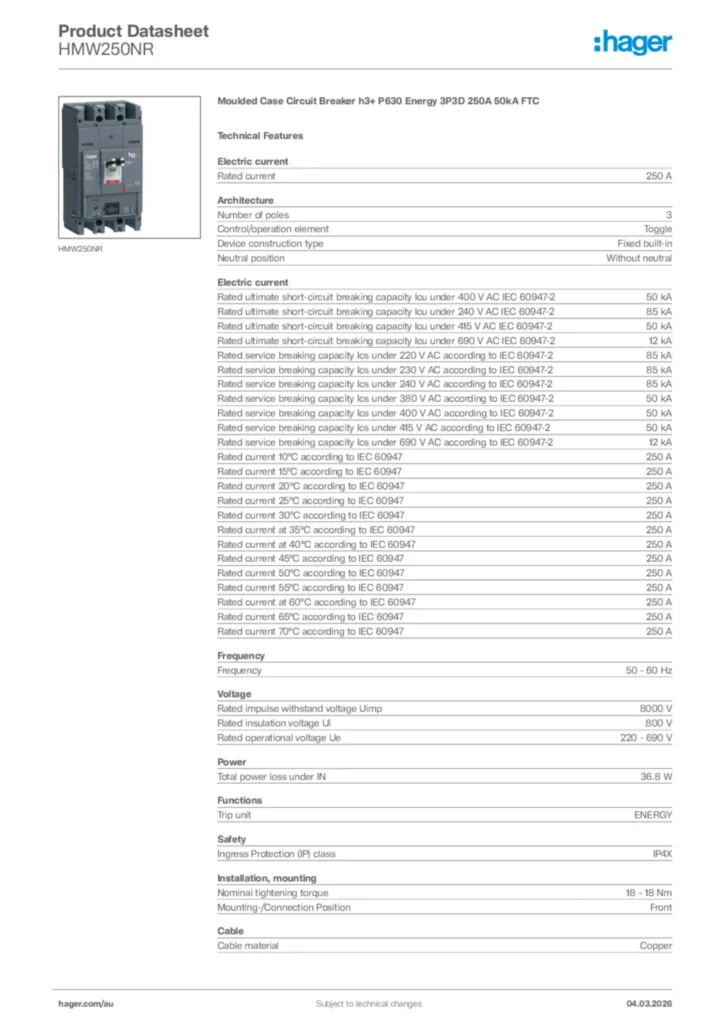

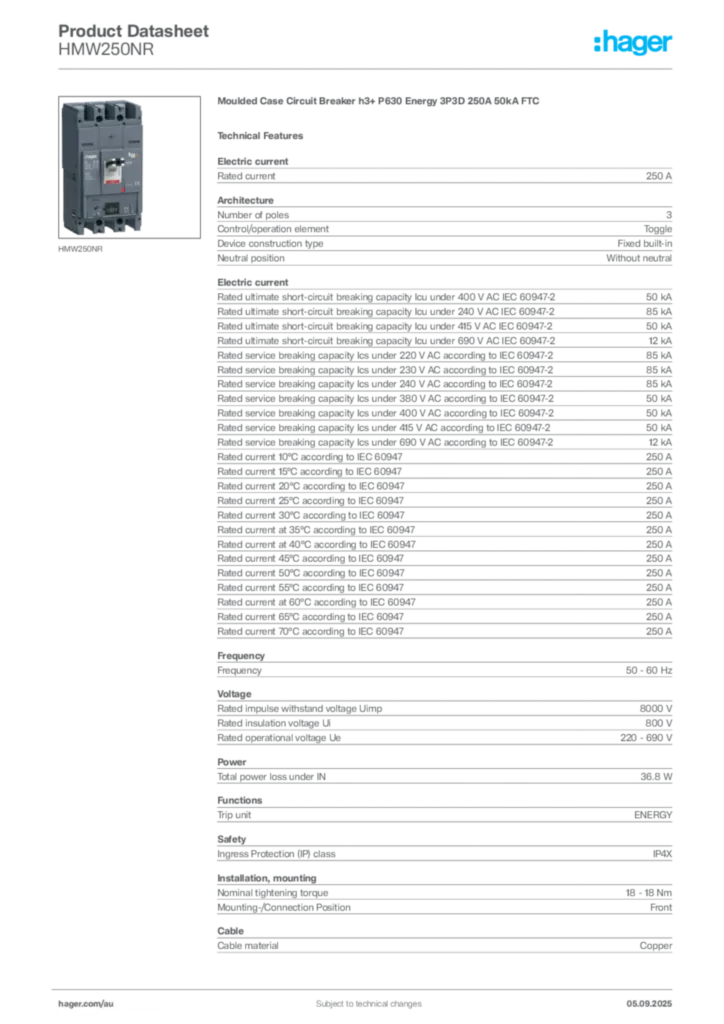

Download the data sheet

Complete your system

Optional accessories

Mechanic accessories for low-voltage components 1 products available
Auxiliaries data cable adaptor 6 products available
Auxiliaries network functions 1 products available
Shunt release 4 products available
Under voltage coil 1 products available
See more 29 other products available

Technical properties

Rated current

250 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

50 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-2

50 kA
Rated ultimate short-circuit breaking capacity Icu under 690 V AC IEC 60947-2

12 kA
Rated service breaking capacity Ics under 220 V AC according to IEC 60947-2

85 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

85 kA
Rated service breaking capacity Ics under 240 V AC according to IEC 60947-2

85 kA
Rated service breaking capacity Ics under 380 V AC according to IEC 60947-2

50 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

50 kA
Rated service breaking capacity Ics under 415 V AC according to IEC 60947-2

50 kA
Rated service breaking capacity Ics under 690 V AC according to IEC 60947-2

12 kA
Rated current 10°C according to IEC 60947

250 A
Rated current 15°C according to IEC 60947

250 A
Rated current 20°C according to IEC 60947

250 A
Rated current 25°C according to IEC 60947

250 A
Rated current 30°C according to IEC 60947

250 A
Rated current at 35°C according to IEC 60947

250 A
Rated current at 40°C according to IEC 60947

250 A
Rated current 45°C according to IEC 60947

250 A
Rated current 50°C according to IEC 60947

250 A
Rated current 55°C according to IEC 60947

250 A
Rated current at 60°C according to IEC 60947

250 A
Rated current 65°C according to IEC 60947

250 A
Rated current 70°C according to IEC 60947

250 A

Number of poles

3
Control/operation element

Toggle
Device construction type

Fixed built-in
Neutral position

Without neutral

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8000 V
Rated insulation voltage Ui

800 V
Rated operational voltage Ue

220 - 690 V

Trip unit

ENERGY

Total power loss under IN

36,80 W

Nominal tightening torque

18 - 18 Nm
Mounting-/Connection Position

Front

Ingress Protection (IP) class

IP4X

Cable material

Copper

Compatible with RDC AOB

Yes
Suitable for DIN Rail

No
Suitable for distribution board

Yes

Height

260 mm
Width

140 mm
Depth

150 mm

Adjustment range short-term delayed short-circuit release

122,85 - 2500,0 A

Long-time overload protection (ltd): delay (tr)

0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
Short-time protection (std): current (Isd)

1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
Short-time protection (std): delay (tsd)

50 ms, 100 ms, 200 ms, 300 ms, 400 ms
Instantaneous protection (li): dial setting coefficient

3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes
