Hager The Hager cage terminal for x630/P630 molded case circuit breakers ensures secure, high-capacity connections on 3-pole devices. It accepts one Cu or Al conductor per pole from 35 to 300 mm², providing robust clamping and low-resistance contact. Ideal for reliable power distribution in commercial and industrial panels, simplifying installation and enhancing connection durability.
EAN
3250613200954
Packaging
1 Piece
Cage terminal for x630/P630 MCCB 3P Cu/Al 1x35-300mm² HYW001H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 16 products available
Suitable with
-
HHJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 25kA FTC
-
HMJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 50kA FTC
-
HMW250JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 250A 50kA FTC
-
HMW400JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 400A 50kA FTC
-
HMW630JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
-
HNJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 40kA FTC
-
HNW250JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 250A 40kA FTC
-
HNW400JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 400A 40kA FTC
-
HNW630JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 40kA FTC
-
HCW400ARLoad Break Switch Disconnector h3+ P630 3P 400A FTC
-
HMW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 50kA FTC
-
HMW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 50kA FTC
-
HMW630NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 630A 50kA FTC
-
HNW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 40kA FTC
-
HNW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 40kA FTC
-
HNW630NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 630A 40kA FTC
Technical properties
Electric current
-
Rated current630 A
Architecture
-
Number of poles3
-
Type of pole3P
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

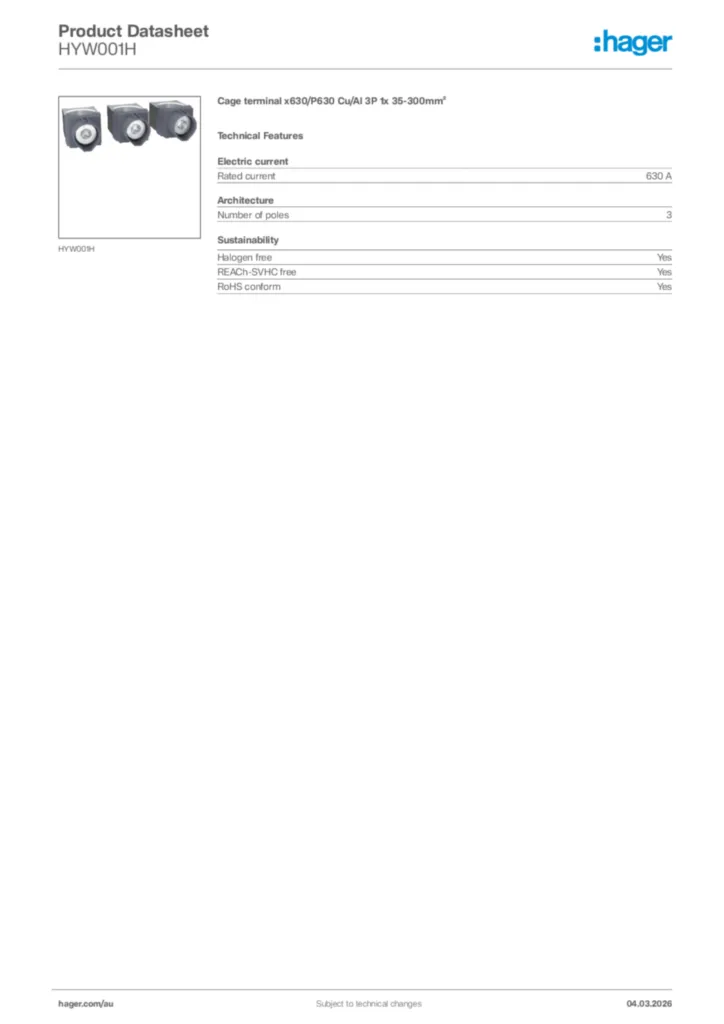

Hager Product data sheet HYW001H
Cage terminal x630/P630 Cu/Al 3P 1x 35-300mm²
PDF -
Instruction manual
Instruction manual International 2025-01-21
PDF10,29 MB
Instruction manual International 2025-05-06
PDF445,41 kB -
Handbook
Technical catalogue
h3+ Moulded Case Circuit breakers up to 630A
PDF48,86 MB
