Hager The Hager earth plate for spread terminal extension P630 3P is an accessory for moulded case circuit breakers, providing a robust grounding interface for 3‑pole P630 devices. It enhances safety and fault dissipation, ensures low‑impedance earth continuity, and supports larger cable spreads. Durable and easy to fit, it streamlines installation and maintains compliance in industrial and commercial switchboards.
EAN
3250613138943
Packaging
1 Piece
Earth plate for spread terminal extension, P630 3P moulded case HYW052H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 16 products available
Suitable with
-
HHJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 25kA FTC
-
HMJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 50kA FTC
-
HMW250JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 250A 50kA FTC
-
HMW400JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 400A 50kA FTC
-
HMW630JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
-
HNJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 40kA FTC
-
HNW250JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 250A 40kA FTC
-
HNW400JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 400A 40kA FTC
-
HNW630JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 40kA FTC
-
HCW400ARLoad Break Switch Disconnector h3+ P630 3P 400A FTC
-
HMW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 50kA FTC
-
HMW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 50kA FTC
-
HMW630NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 630A 50kA FTC
-
HNW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 40kA FTC
-
HNW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 40kA FTC
-
HNW630NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 630A 40kA FTC
Technical properties
Architecture
-
Type of pole3P
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

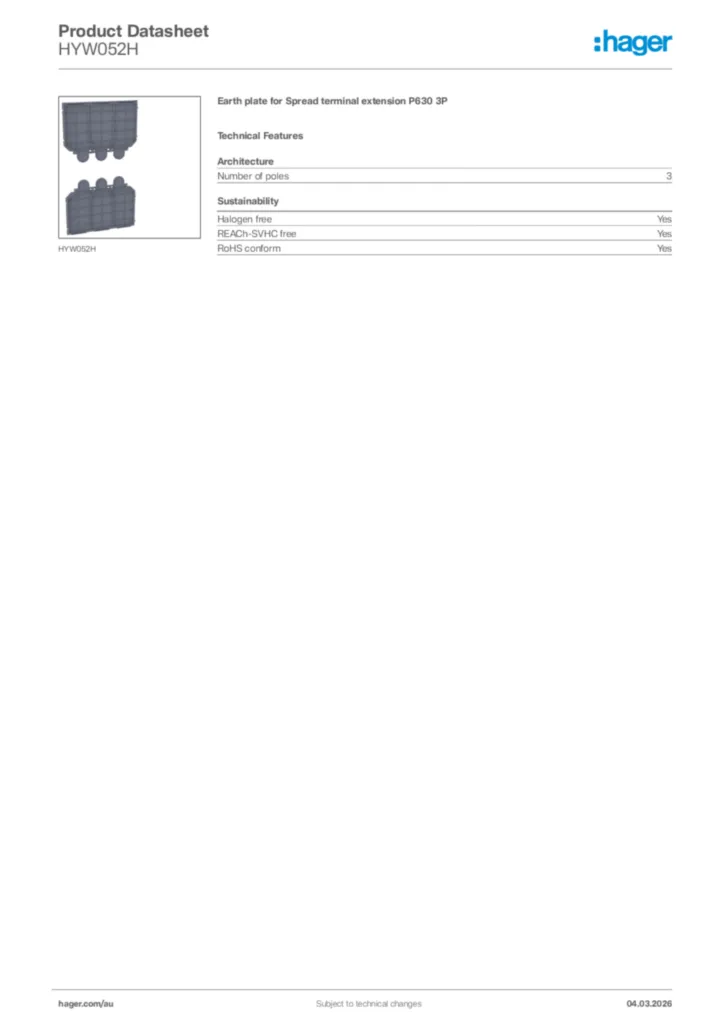

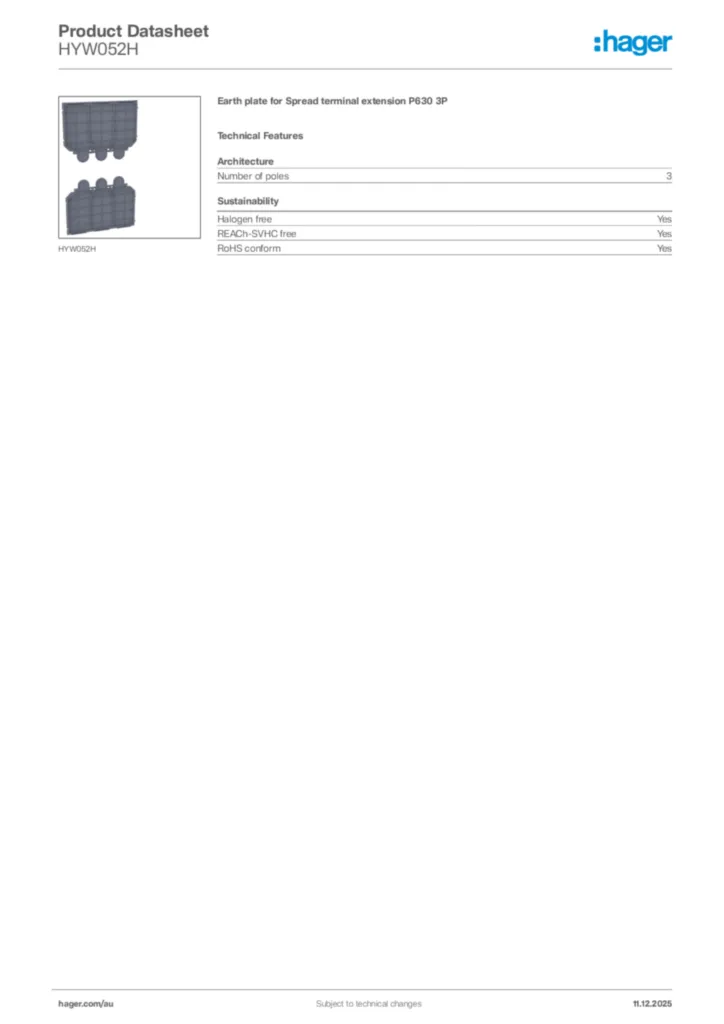

Hager Product data sheet HYW052H
Earth plate for Spread terminal extension P630 3P
PDF -
Instruction manual
Instruction manual International 2025-01-21
PDF10,29 MB -
Handbook
Technical catalogue
h3+ Moulded Case Circuit breakers up to 630A
PDF48,86 MB
