Hager The Hager Shaft 14x14mm 500mm (10x10mm) is a transmission shaft for rotary operating mechanisms, ensuring reliable coupling between door-mounted handles and switchgear. With a 500 mm length and 14x14 mm square profile plus 10x10 mm adaptability, it offers easy integration, precise torque transfer, and secure operation in enclosure installations. Ideal for panel and switchboard assemblies.
EAN
3250613160265
Packaging
1 Piece
Extension shaft 14x14 mm, 500 mm length, adapter 10x10 mm HXW915H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 17 products available
Suitable with
-
HHJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 25kA FTC
-
HCW400ARLoad Break Switch Disconnector h3+ P630 3P 400A FTC
-
HNW630JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 40kA FTC
-
HNW400JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 400A 40kA FTC
-
HNW250JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 250A 40kA FTC
-
HNJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 40kA FTC
-
HMW630JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
-
HMW400JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 400A 50kA FTC
-
HMW250JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 250A 50kA FTC
-
HMJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 50kA FTC
-
HXW901HHandle size 2 IP55 (10x10mm)
-
HMW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 50kA FTC
-
HMW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 50kA FTC
-
HMW630NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 630A 50kA FTC
-
HNW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 40kA FTC
-
HNW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 40kA FTC
-
HNW630NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 630A 40kA FTC
Technical properties
Dimensions
-
Length500 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

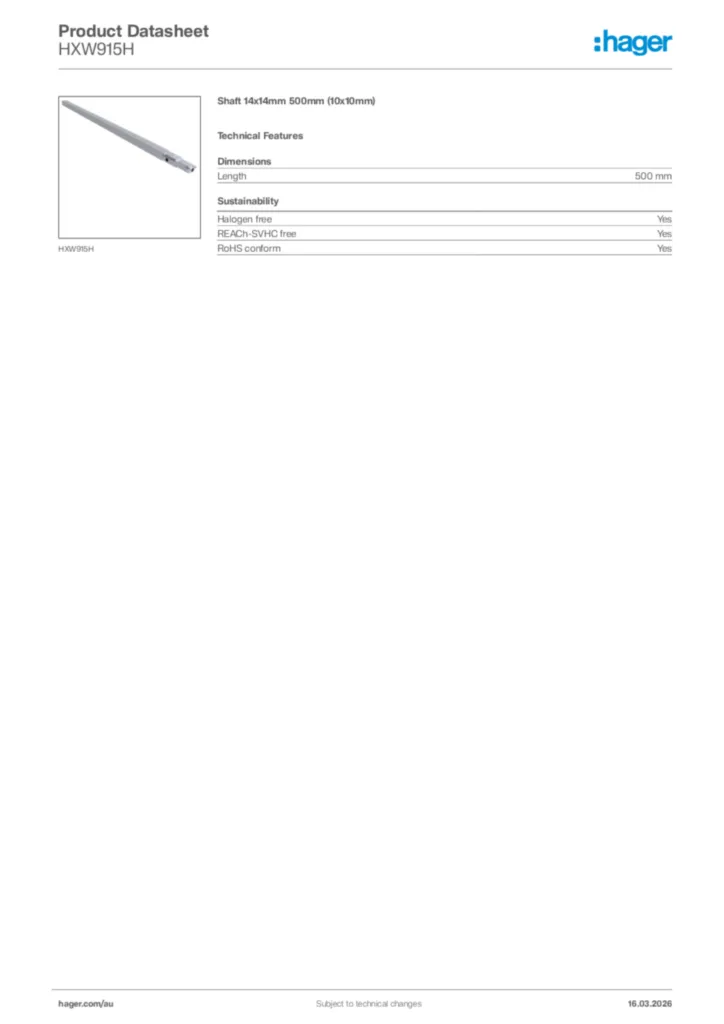

Hager Product data sheet HXW915H
Shaft 14x14mm 500mm (10x10mm)
PDF -
Instruction manual
Instruction manual International 2024-10-01
PDF7,71 MB -
Handbook
Technical catalogue
h3+ Moulded Case Circuit breakers up to 630A
PDF48,86 MB
