    • HXA013H
    EAN
    3250613346386
    Packaging
    1 Piece
    • MCCBs - Accessories

    Undervoltage release 100-120V AC for MCCB x160/P160/x250/P250/x630/P630 HXA013H

    Available soon

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Undervoltage release 100-120V AC for MCCB x160/P160/x250/P250/x630/P630

    HXA013H

    • Technical properties
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Power
    • Inrush power absorbed
      1,40 VA
    • Power dissip­a­tion at IN
      1,40 W
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Voltage
    • Command voltage AC
      110 - 120 V
    • Command voltage DC
      0 - 0 V
    Func­tions
    • Delayed
      No

    Downloads

    • Product image

      Image HXA013H | Hager Australia

      Product Image HXA013H

    • Product datasheet

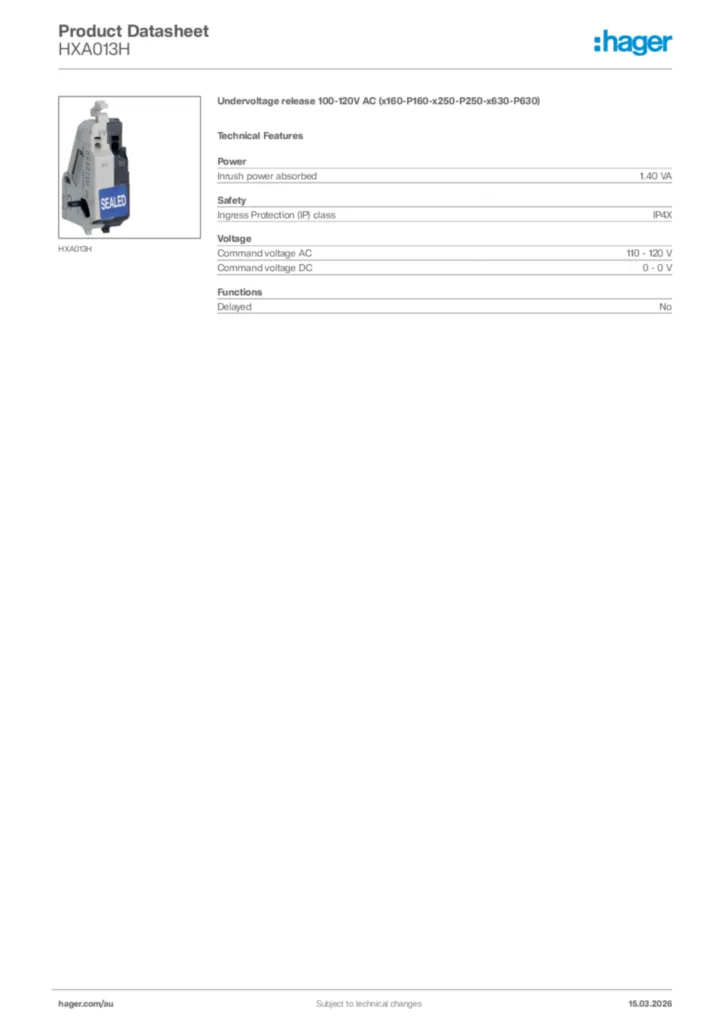

      Image Hager Product data sheet HXA013H | Hager Australia

      Hager Product data sheet HXA013H

      Undervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)

      PDF

    • Installation manual

      Image Manual for HXA0xx - Shunt trip, undervoltage release (Date: 2020-06) | Hager Australia

      Manual for HXA0xx - Shunt trip, undervoltage release (Date: 2020-06)

      Installation manual International 2017-06-20

      PDF
      6,65 MB

    • Handbook

      Image Technical catalogue | Hager Australia

      Technical catalogue

      h3+ Moulded Case Circuit breakers up to 630A

      PDF
      48,91 MB

    • Declaration of conformity

      Image Declaration of conformity en-US 2026-07-14 | Hager Australia

      Declaration of conformity en-US 2026-07-14

      PDF
      343,86 kB
      Image Declaration of conformity en-US 2026-07-14 | Hager Australia

      Declaration of conformity en-US 2026-07-14

      PDF
      437,81 kB
