            HMT250JR - Moulded Case Circuit Breaker h3+ P250 LSI 3P3D 250A 50kA FTC
            HMT250JR - Moulded Case Circuit Breaker h3+ P250 LSI 3P3D 250A 50kA FTC

            Moulded Case Circuit Breaker h3+ P250 LSI 3P3D 250A 50kA FTC

            HMT250JR

            HMT250JR - Moulded Case Circuit Breaker h3+ P250 LSI 3P3D 250A 50kA FTC
            HMT250JR - Moulded Case Circuit Breaker h3+ P250 LSI 3P3D 250A 50kA FTC
            • Main Switchgear

            Moulded Case Circuit Breaker h3+ P250 LSI 3P3D 250A 50kA FTC HMT250JR

            EAN
            3250613176587
            Packaging
            1 Piece

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in
            • Accessories
            • Technical properties
            • Environmental value
            • Documentations
            • More products

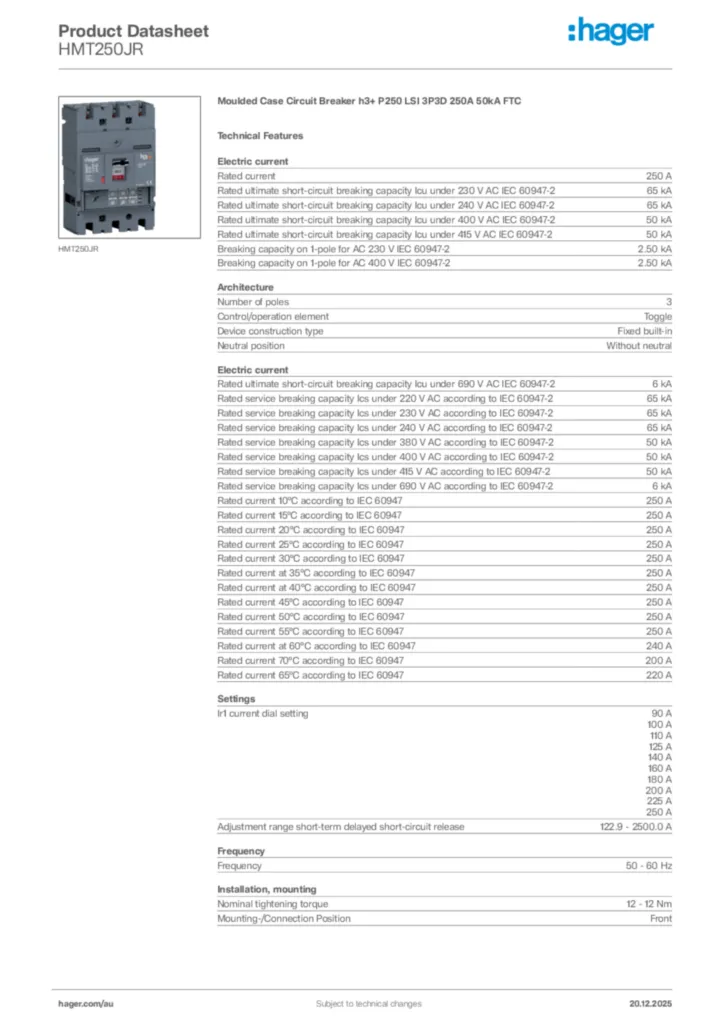

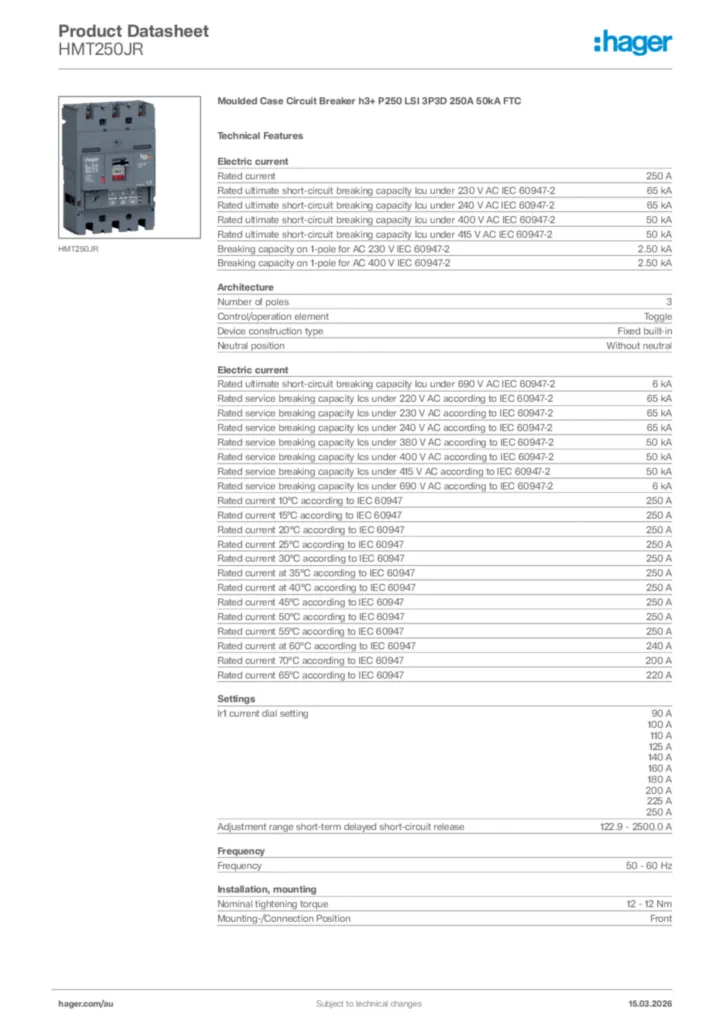

            Download the data sheet

            Complete your system

            Optional accessories

            • Auxil­i­aries data cable adaptor 1 products available
            • Shunt release 4 products available
            • Under voltage coil 1 products available
            • Auxil­i­aries contact block 6 products available
            • Locking inter­locking func­tions 5 products available
            • See more 14 other products available

            Complete your system

            • Auxil­i­aries data cable adaptor
            • Shunt release
            • Under voltage coil
            • Auxil­i­aries contact block
            • Locking inter­locking func­tions
            • Auxil­i­aries inter­locking cable
            • Handle for power circuit breaker
            • Door coup­ling handle
            • Handle with inter­lock for power breaker
            • Motor oper­ator
            • Connec­tion Func­tions
            • Phase separ­a­tion func­tions
            • Terminal cover
            • HTC130H

              OAC/PTA adaptor for h3+ length 1,20 m

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXA001H

              Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXA002H

              Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXA004H

              Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXA005H

              Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXA014H

              Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXA021H

              Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXA024H

              Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXA025H

              Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXA026H

              Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXA027H

              Alarm contact NO-NC right side (x630/P630)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXA028H

              Alarm contact-Low level NO-NC right side (x630/P630)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXA039H

              Padlock (x160-P160-x250-P250-x630)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXB070H

              Interlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXB071H

              Interlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXT066H

              Mechanical interlocking front cover P250

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXT165H

              Direct interlocking kit P250 3P

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXB068H

              Electrical interlock for Motor type A (x250-P250-h250)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXB069H

              Electrical interlock for Motor type B (x250-P250-h250-h400-h630-h800-h1000)

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXT030H

              Direct rotary handle for P250

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXT031H

              Rotary handle on door P250

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXT032H

              Direct rotary handle P250 with interlocking

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXT042H

              Motor Operator P250 230-240VAC with Auto-Reset

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HXT044H

              Motor Operator P250 230-240VAC without Auto-Reset

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HYB011H

              Spreader (x/P250-P250) 3P

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HYB031H

              Rear connection (x/P250-P250) - 3P

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HYT019H

              Interphase barrier for P250 3/4P

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HYT021H

              Terminal cover for Straight terminal extension P250 3P

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HYT023H

              Terminal cover for Spread terminal extension P250 3P

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HYT050H

              Earth plate for Straight terminal extension P250 3P

              EUR 0.00  / *
              Add to a list
              Add to a list
            • HYT052H

              Earth plate for Spread terminal extension P250 3P

              EUR 0.00  / *
              Add to a list
              Add to a list

            Technical properties

            Elec­tric current
            • Rated current
              250 A
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 230 V AC IEC 60947-2
              65 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
              65 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
              50 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
              50 kA
            • Breaking capa­city on 1-pole for AC 230 V IEC 60947-2
              2,50 kA
            • Breaking capa­city on 1-pole for AC 400 V IEC 60947-2
              2,50 kA
            • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 690 V AC IEC 60947-2
              6 kA
            • Rated service breaking capa­city Ics under 220 V AC according to IEC 60947-2
              65 kA
            • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
              65 kA
            • Rated service breaking capa­city Ics under 240 V AC according to IEC 60947-2
              65 kA
            • Rated service breaking capa­city Ics under 380 V AC according to IEC 60947-2
              50 kA
            • Rated service breaking capa­city Ics under 400 V AC according to IEC 60947-2
              50 kA
            • Rated service breaking capa­city Ics under 415 V AC according to IEC 60947-2
              50 kA
            • Rated service breaking capa­city Ics under 690 V AC according to IEC 60947-2
              6 kA
            • Rated current 10°C according to IEC 60947
              250 A
            • Rated current 15°C according to IEC 60947
              250 A
            • Rated current 20°C according to IEC 60947
              250 A
            • Rated current 25°C according to IEC 60947
              250 A
            • Rated current 30°C according to IEC 60947
              250 A
            • Rated current at 35°C according to IEC 60947
              250 A
            • Rated current at 40°C according to IEC 60947
              250 A
            • Rated current 45°C according to IEC 60947
              250 A
            • Rated current 50°C according to IEC 60947
              250 A
            • Rated current 55°C according to IEC 60947
              250 A
            • Rated current at 60°C according to IEC 60947
              240 A
            • Rated current 70°C according to IEC 60947
              200 A
            • Rated current 65°C according to IEC 60947
              220 A
            Archi­tec­ture
            • Number of poles
              3
            • Control/­op­er­a­tion element
              Toggle
            • Device construc­tion type
              Fixed built-in
            • Neutral posi­tion
              Without neutral
            Settings
            • Ir1 current dial setting
              90 A, 100 A, 110 A, 125 A, 140 A, 160 A, 180 A, 200 A, 225 A, 250 A
            • Adjust­ment range short-term delayed short-­cir­cuit release
              122,9 - 2500,0 A
            Frequency
            • Frequency
              50 - 60 Hz
            Install­a­tion, mounting
            • Nominal tight­ening torque
              12 - 12 Nm
            • Mount­ing-/­Con­nec­tion Posi­tion
              Front
            Voltage
            • Rated impulse with­stand voltage Uimp
              8000 V
            • Rated insu­la­tion voltage Ui
              800 V
            • Rated oper­a­tional voltage Ue
              220 - 690 V
            Func­tions
            • Trip unit
              LSI
            Power
            • Total power loss under IN
              45 W
            • Power loss per pole at In
              15 W
            Endur­ance
            • Elec­tric endur­ance in number of cycles
              10000
            • Number of mech­an­ical oper­a­tions
              40000
            Equip­ment
            • Number of auxil­iary contacts as change-over contact
              0
            • Number of auxil­iary contacts as normally closed contact
              0
            • Number of auxil­iary contacts as normally open contact
              0
            Safety
            • Ingress Protec­tion (IP) class
              IP4X
            Use condi­tions
            • Oper­ating temper­ature
              -25 - 70 °C
            • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
              3
            Connec­tion
            • Cross-sec­tion flex­ible conductor
              35 - 150 mm²
            • Cross-sec­tion rigid conductor
              35 - 185 mm²
            • Connect­or/plug type
              Terminal
            Cover, door
            • Inter­lock­able
              Yes
            Cable
            • Cable material
              Copper, Aluminium
            Dimen­sions
            • Height
              165 mm
            • Width
              105 mm
            • Depth
              97 mm
            Controls and indic­ators
            • Motor drive integ­rated
              No
            Compat­ib­ility
            • Suit­able for DIN Rail
              No
            • Compat­ible with RDC AOB
              No
            • Suit­able for distri­bu­tion board
              Yes
            Power supply
            • Posi­tion power supply
              Bidirec­tional
            Elec­trical protec­tion
            • Long-­time over­load protec­tion (ltd): delay (tr)
              0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
            • Short-­time protec­tion (std): current (Isd)
              1.5, 2, 3, 4, 5, 6, 7, 8, 10
            • Short-­time protec­tion (std): delay (tsd)
              50 ms, 100 ms, 200 ms, 300 ms, 400 ms
            • Instant­an­eous protec­tion (li): dial setting coef­fi­cient
              3, 4, 5, 6, 7, 8, 9, 10, 11

            Environmental value

            We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

            RoHS conform Yes

            Certifications and documents

            REACH declaration HMT250JR (english)
            PDF
            103,34 kB
            RoHS declaration HMT250JR (english)
            PDF
            103,84 kB

            Downloads

            • Product image

              Image HMT250JR  | Hager Australia

              Product Image HMT250JR

            • Operating manual

              Image Operating manual International 2020-09-21  | Hager Australia

              Operating manual International 2020-09-21

              PDF
              13,53 MB
            • Installation manual

              Image Installation manual International 2018-06-04  | Hager Australia

              Installation manual International 2018-06-04

              PDF
              2,86 MB
              Image Manual for moulded case circuit breaker h3+ P250 (Date: 2020-03)  | Hager Australia

              Manual for moulded case circuit breaker h3+ P250 (Date: 2020-03)

              Installation manual International 2015-11-02

              PDF
              4,67 MB
            • STEP files

              Image CAD file for MCCB 250A 3P  | Hager Australia

              CAD file for MCCB 250A 3P

              STEP files International 2023-11-24

              STP
              640,83 kB
            • Handbook

              Image Handbook International 26-08-2024  | Hager Australia

              Handbook International 26-08-2024

              Handbook International 2019-10-09

              PDF
              48,75 MB
            • Declaration of conformity

              Image Declaration  | Hager Australia

              Declaration

              Declaration of conformity International 2022-04-25

              PDF
              349,41 kB
              Image Declaration  | Hager Australia

              Declaration

              Declaration of conformity International 2022-04-25

              PDF
              461,97 kB
            More documentation

            Discover more of this product range

              5
            • 1
              HEC040H - Moulded Case Circuit Breaker h250 3P 70kA 40A LSI
              HEC040H
              Moulded Case Circuit Breaker h250 3P 70kA 40A LSI
            • 2
              HEC041H - Moulded Case Circuit Breaker h250 4P 70kA 40A LSI
              HEC041H
              Moulded Case Circuit Breaker h250 4P 70kA 40A LSI
            • 3
              HEC125H - Moulded Case Circuit Breaker h250 3P 70kA 125A LSI
              HEC125H
              Moulded Case Circuit Breaker h250 3P 70kA 125A LSI
            • 4
              HEC126H - Moulded Case Circuit Breaker h250 4P 70kA 125A LSI
              HEC126H
              Moulded Case Circuit Breaker h250 4P 70kA 125A LSI
            • 5
              HEC250H - Moulded Case Circuit Breaker h250 3P 70kA 250A LSI
              HEC250H
              Moulded Case Circuit Breaker h250 3P 70kA 250A LSI

            Products

            • Enclosures
            • DIN rail-mounted devices
            • Main Switchgear
            • Switches and Sockets
            • Motion and Presence Detectors
            • Trunking Systems

            Project Solutions

            • Product and Installations Solutions
            • Case Studies
            • Electrical Contractor Solutions
            • Architects and Specifiers Solutions
              Panelboard Builder Solutions
            • Builder and Developer Solutions

            Contact and Support

            • Safety Recalls
            • FAQs
            • How to Videos
            • Find a Wholesaler
            • Contact Us
            • Career

            Who we are

            Our international family business has been the partner of professionals in electrical engineering for over 65 years.

            Solutions for reliable energy distribution, cable management, attractive switchgear, and building automation: we are driven to deliver. Always in close cooperation with partners and customers. Our products and systems distinguish themselves in quality, simplicity in installation and use, and an attractive design.

            More about us & Working with us



            Follow us!

            • Terms and conditions
            • Privacy
            • Cookies
            • Hagergroup
            • Report a vulnerability

            © Ha­ger Group
