Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630) HXA024H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 86 products available
Suitable with
-
HHS125DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 125A 25kA FTC
-
HNT250DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 3P3D 250A 40kA FTC
-
HNS063DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 63A 40kA FTC
-
HMT160JRMoulded Case Circuit Breaker h3+ P250 LSI 3P3D 160A 50kA FTC
-
HMT100JRMoulded Case Circuit Breaker h3+ P250 LSI 3P3D 100A 50kA FTC
-
HMT100DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 3P3D 100A 50kA FTC
-
HMT050DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 3P3D 50A 50kA FTC
-
HMT040JRMoulded Case Circuit Breaker h3+ P250 LSI 3P3D 40A 50kA FTC
-
HMJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 50kA FTC
-
HHS160DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 160A 25kA FTC
-
HMT200DRMoulded Case Circuit Breaker h3+ P250 TM ADJ 3P3D 200A 50kA FTC
-
HHA025UMoulded Case Circuit Breaker h3 x160 TM ADJ 3P3D 25A 25kA CTC
-
HHS080DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 80A 25kA FTC
-
HHS063DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 63A 25kA FTC
-
HHS040DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 40A 25kA FTC
-
HHS025DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 25A 25kA FTC
-
HHJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 25kA FTC
-
HCA160ZLoad Break Switch Disconnector h3 x160 3P 160A CTC
-
HCA125ZLoad Break Switch Disconnector h3 x160 3P 125A CTC
-
HNS080DRMoulded Case Circuit Breaker h3+ P160 TM ADJ 3P3D 80A 40kA FTC
Technical properties
Electric current
-
Rated current3 A
-
Rated current 230 V AC153 A
Connectivity
-
Type of connectionquickconnect
-
Mounting typeClick mounting
Connection
-
Type of contacts1NC+1NO
-
Cross-section flexible conductor0.5 - 1.25 mm²
-
Cross-section rigid conductor0.5 - 1.25 mm²
Voltage
-
Rated insulation voltage Ui250 V
-
Rated impulse withstand voltage Uimp1500 V
-
Type voltage supplyAC/DC
Power
-
Total power loss under IN3 W
Equipment
-
Number of INV contacts1
-
Number of NC contacts0
Safety
-
Ingress Protection (IP) classIP4X
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

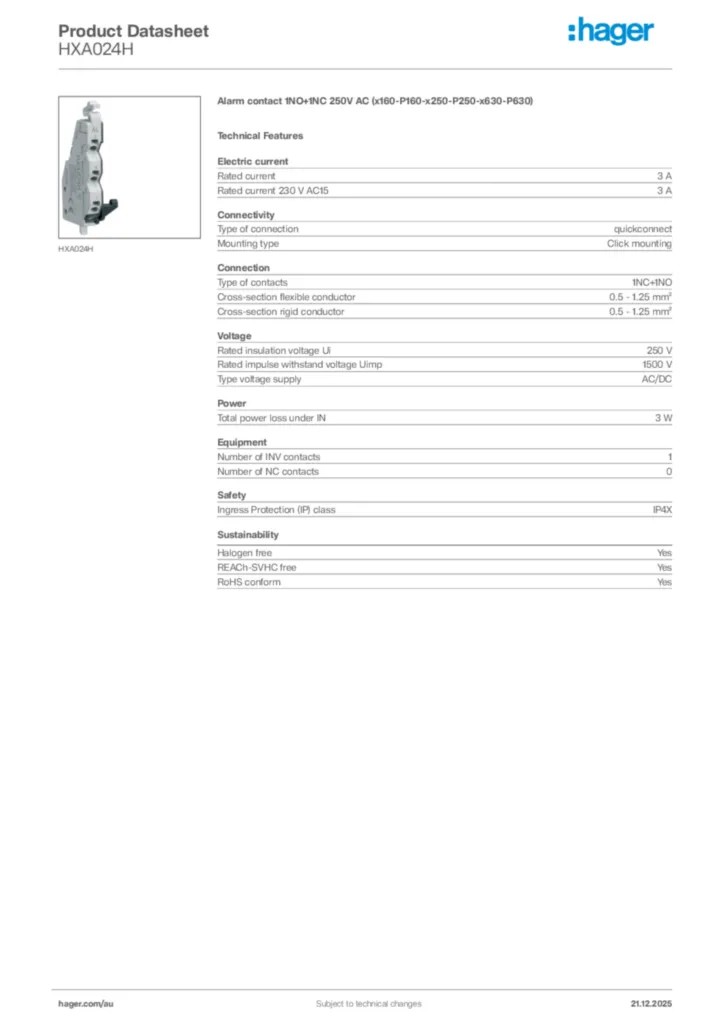

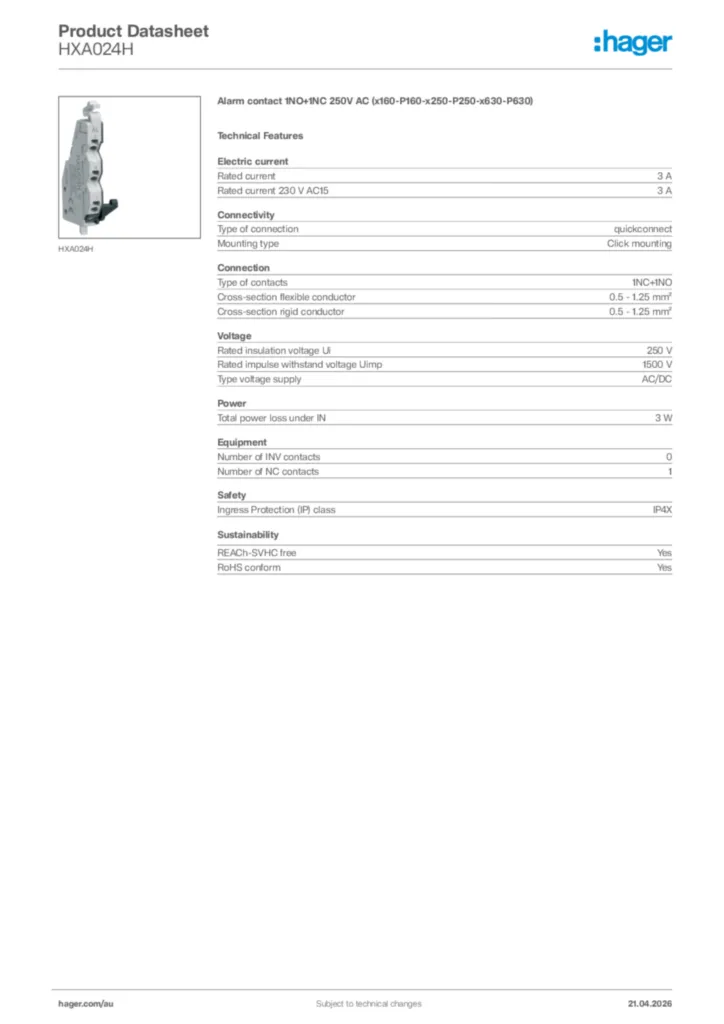

Hager Product data sheet HXA024H
Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
PDF -
Installation manual
Manual for HXA0xx - Shunt trip, undervoltage release (Date: 2020-06)
Installation manual International 2017-06-20
PDF6,65 MB -
Handbook
Technical catalogue
h3+ Moulded Case Circuit breakers up to 630A
PDF48,86 MB
