    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC

    Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC

    HMW630JR

    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    HMW630JR - Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC
    • Main Switchgear

    Moulded Case Circuit Breaker h3+ P630 LSI 3P3D 630A 50kA FTC HMW630JR

    EAN
    3250613198237
    Packaging
    1 Piece

    You have to log in with your myHager profile to see prices and to order.

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in
    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products

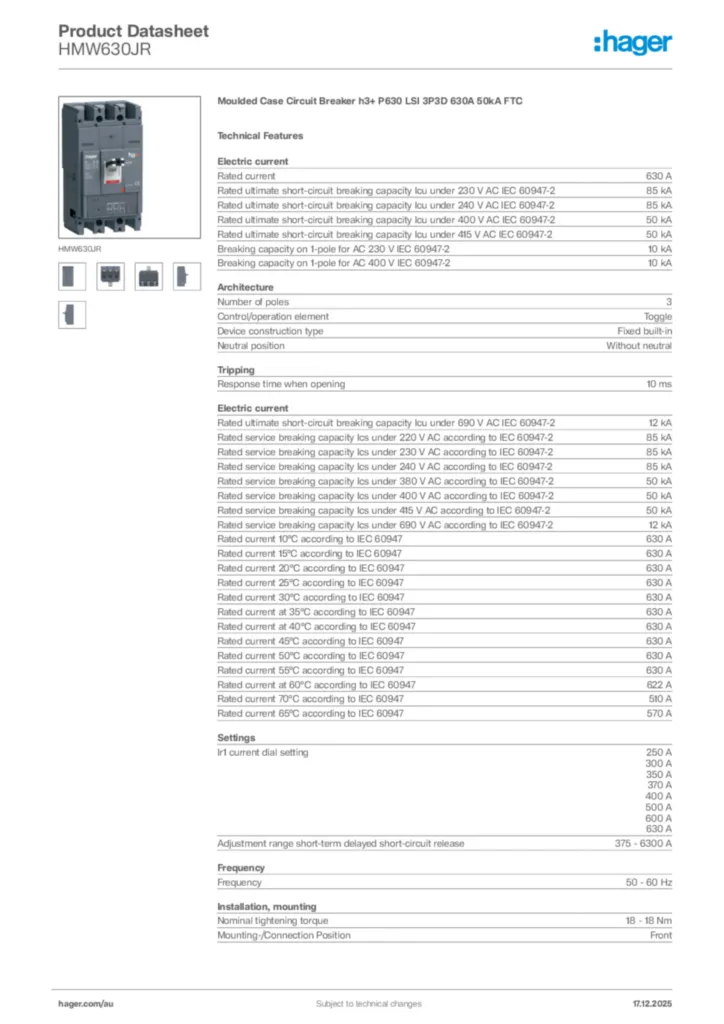

    Download the data sheet

    Complete your system

    Optional accessories

    • Auxil­i­aries data cable adaptor 1 products available
    • Shunt release 4 products available
    • Under voltage coil 1 products available
    • Auxil­i­aries contact block 6 products available
    • Locking inter­locking func­tions 5 products available
    • See more 15 other products available

    Complete your system

    • Auxil­i­aries data cable adaptor
    • Shunt release
    • Under voltage coil
    • Auxil­i­aries contact block
    • Locking inter­locking func­tions
    • Auxil­i­aries inter­locking cable
    • Handle for power circuit breaker
    • Handle with inter­lock for power breaker
    • Motor oper­ator
    • Door coup­ling handle
    • Connec­tion Func­tions
    • Phase separ­a­tion func­tions
    • Terminal cover
    • HTC130H

      OAC/PTA adaptor for h3+ length 1,20 m

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXA027H

      Alarm contact NO-NC right side (x630/P630)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXA028H

      Alarm contact-Low level NO-NC right side (x630/P630)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXA039H

      Padlock (x160-P160-x250-P250-x630)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXB070H

      Interlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXB071H

      Interlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXW066H

      Mechanical interlock front cover x630/P630

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXW165H

      Link interlock kit x630/P630 - 3P

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXB069H

      Electrical interlock for Motor type B (x250-P250-h250-h400-h630-h800-h1000)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXD068H

      Electrical interlock for Motor type A (h400-h630-x630-P630-h800-h1000)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXW030H

      Direct rotary handle for x630/P630

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXW031H

      Rotary grey handle on door x/P630

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXW032H

      Direct rotary handle for x630/P630, with door lock

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXW042H

      Motor Operator x630/P630 100-240VAC with Auto-Reset

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXW044H

      Motor Operator x630/P630 100-240VAC without Auto-Reset

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HXW901H

      Handle size 2 IP55 (10x10mm)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HYD033H

      Rear connection h/x/P 3P 630A

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HYW014H

      Spread terminal extension x630/P630 3P (up to 630A)

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HYW019H

      Interphase barrier for x630/P630 3/4P

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HYW021H

      Terminal cover for Straight terminal extension x630/P630 3P

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HYW023H

      Terminal cover for Spread terminal extension x630/P630 3P

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HYW050H

      Earth plate for Straight terminal extension P630 3P

      EUR 0.00  / *
      Add to a list
      Add to a list
    • HYW052H

      Earth plate for Spread terminal extension P630 3P

      EUR 0.00  / *
      Add to a list
      Add to a list

    Technical properties

    Elec­tric current
    • Rated current
      630 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 230 V AC IEC 60947-2
      85 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      85 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      50 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
      50 kA
    • Breaking capa­city on 1-pole for AC 230 V IEC 60947-2
      10 kA
    • Breaking capa­city on 1-pole for AC 400 V IEC 60947-2
      10 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 690 V AC IEC 60947-2
      12 kA
    • Rated service breaking capa­city Ics under 220 V AC according to IEC 60947-2
      85 kA
    • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
      85 kA
    • Rated service breaking capa­city Ics under 240 V AC according to IEC 60947-2
      85 kA
    • Rated service breaking capa­city Ics under 380 V AC according to IEC 60947-2
      50 kA
    • Rated service breaking capa­city Ics under 400 V AC according to IEC 60947-2
      50 kA
    • Rated service breaking capa­city Ics under 415 V AC according to IEC 60947-2
      50 kA
    • Rated service breaking capa­city Ics under 690 V AC according to IEC 60947-2
      12 kA
    • Rated current 10°C according to IEC 60947
      630 A
    • Rated current 15°C according to IEC 60947
      630 A
    • Rated current 20°C according to IEC 60947
      630 A
    • Rated current 25°C according to IEC 60947
      630 A
    • Rated current 30°C according to IEC 60947
      630 A
    • Rated current at 35°C according to IEC 60947
      630 A
    • Rated current at 40°C according to IEC 60947
      630 A
    • Rated current 45°C according to IEC 60947
      630 A
    • Rated current 50°C according to IEC 60947
      630 A
    • Rated current 55°C according to IEC 60947
      630 A
    • Rated current at 60°C according to IEC 60947
      622 A
    • Rated current 70°C according to IEC 60947
      510 A
    • Rated current 65°C according to IEC 60947
      570 A
    Archi­tec­ture
    • Number of poles
      3
    • Control/­op­er­a­tion element
      Toggle
    • Device construc­tion type
      Fixed built-in
    • Neutral posi­tion
      Without neutral
    Trip­ping
    • Response time when opening
      10 ms
    Settings
    • Ir1 current dial setting
      250 A, 300 A, 350 A, 370 A, 400 A, 500 A, 600 A, 630 A
    • Adjust­ment range short-term delayed short-­cir­cuit release
      375 - 6300 A
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      18 - 18 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Front
    Voltage
    • Rated impulse with­stand voltage Uimp
      8000 V
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated oper­a­tional voltage Ue
      220 - 690 V
    Func­tions
    • Trip unit
      LSI
    Power
    • Total power loss under IN
      131,6 W
    • Power loss per pole at In
      46,2 W
    Equip­ment
    • Number of auxil­iary contacts as change-over contact
      0
    • Number of auxil­iary contacts as normally closed contact
      0
    • Number of auxil­iary contacts as normally open contact
      0
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 70 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      3
    Connec­tion
    • Connect­or/plug type
      Terminal
    Cable
    • Cable material
      Copper, Aluminium
    Dimen­sions
    • Height
      260 mm
    • Width
      140 mm
    • Depth
      150 mm
    Controls and indic­ators
    • Motor drive integ­rated
      No
    Compat­ib­ility
    • Suit­able for DIN Rail
      No
    • Compat­ible with RDC AOB
      Yes
    • Suit­able for distri­bu­tion board
      Yes
    Power supply
    • Posi­tion power supply
      Bidirec­tional
    Elec­trical protec­tion
    • Long-­time over­load protec­tion (ltd): delay (tr)
      0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
    • Short-­time protec­tion (std): current (Isd)
      1.5, 2, 3, 4, 5, 6, 7, 8, 10
    • Short-­time protec­tion (std): delay (tsd)
      50 ms, 100 ms, 200 ms, 300 ms, 400 ms
    • Instant­an­eous protec­tion (li): dial setting coef­fi­cient
      3, 4, 5, 6, 7, 8, 9, 10, 11

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP document International 2024-03-05
    PDF
    426,06 kB
    REACH declaration HMW630JR (english)
    PDF
    103,34 kB
    RoHS declaration HMW630JR (english)
    PDF
    103,84 kB

    Downloads

    • Product image

      Image HMW630JR  | Hager Australia

      Product Image HMW630JR

    • Operating manual

      Image Operating manual International 2020-09-21  | Hager Australia

      Operating manual International 2020-09-21

      PDF
      13,53 MB
    • Instruction manual

      Image Instruction manual International 2025-01-21  | Hager Australia

      Instruction manual International 2025-01-21

      PDF
      10,29 MB
    • Installation manual

      Image Installation manual International 2019-01-25  | Hager Australia

      Installation manual International 2019-01-25

      PDF
      1,15 MB
    • STEP files

      Image CAD file for MCCB 630A 3P  | Hager Australia

      CAD file for MCCB 630A 3P

      STEP files International 2023-11-24

      STP
      921,20 kB
    • Handbook

      Image Handbook International 26-08-2024  | Hager Australia

      Handbook International 26-08-2024

      Handbook International 2019-10-09

      PDF
      48,75 MB
    • Declaration of conformity

      Image EU Declaration of Conformity  | Hager Australia

      EU Declaration of Conformity

      PDF
      588,41 kB
      Image EU declaration of conformity  | Hager Australia

      EU declaration of conformity

      PDF
      569,34 kB
    More documentation

    Discover more of this product range

      5
    • 1
      HEC040H - Moulded Case Circuit Breaker h250 3P 70kA 40A LSI
      HEC040H
      Moulded Case Circuit Breaker h250 3P 70kA 40A LSI
    • 2
      HEC041H - Moulded Case Circuit Breaker h250 4P 70kA 40A LSI
      HEC041H
      Moulded Case Circuit Breaker h250 4P 70kA 40A LSI
    • 3
      HEC125H - Moulded Case Circuit Breaker h250 3P 70kA 125A LSI
      HEC125H
      Moulded Case Circuit Breaker h250 3P 70kA 125A LSI
    • 4
      HEC126H - Moulded Case Circuit Breaker h250 4P 70kA 125A LSI
      HEC126H
      Moulded Case Circuit Breaker h250 4P 70kA 125A LSI
    • 5
      HEC250H - Moulded Case Circuit Breaker h250 3P 70kA 250A LSI
      HEC250H
      Moulded Case Circuit Breaker h250 3P 70kA 250A LSI

    Products

    • Enclosures
    • DIN rail-mounted devices
    • Main Switchgear
    • Switches and Sockets
    • Motion and Presence Detectors
    • Trunking Systems

    Project Solutions

    • Product and Installations Solutions
    • Case Studies
    • Electrical Contractor Solutions
    • Architects and Specifiers Solutions
      Panelboard Builder Solutions
    • Builder and Developer Solutions

    Contact and Support

    • Safety Recalls
    • FAQs
    • How to Videos
    • Find a Wholesaler
    • Contact Us
    • Career

    Who we are

    Our international family business has been the partner of professionals in electrical engineering for over 65 years.

    Solutions for reliable energy distribution, cable management, attractive switchgear, and building automation: we are driven to deliver. Always in close cooperation with partners and customers. Our products and systems distinguish themselves in quality, simplicity in installation and use, and an attractive design.

    More about us & Working with us



    Follow us!

    • Terms and conditions
    • Privacy
    • Cookies
    • Hagergroup
    • Report a vulnerability

    © Ha­ger Group
