Hager The Hager straight terminal extension for x630/P630 4P moulded case devices (up to 400A) enables secure, accessible cable terminations on MCCBs. Providing straight outgoing connections, it increases wiring space, accepts large cross-section conductors, and simplifies panel assembly. Ideal for front cabling in power distribution boards, it improves safety, clearances, and heat dissipation.
EAN
3250613200992
Packaging
1 Piece
Straight terminal extension 4P up to 400A for x630/P630 MCCB HYW010H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Suitable with 12 products available
Suitable with
-
HHJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 25kA FTC
-
HMJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 50kA FTC
-
HMW250JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 250A 50kA FTC
-
HMW400JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 400A 50kA FTC
-
HNJ400DRMoulded Case Circuit Breaker h3 x630 TM ADJ 3P3D 400A 40kA FTC
-
HNW250JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 250A 40kA FTC
-
HNW400JRMoulded Case Circuit Breaker h3+ P630 LSI 3P3D 400A 40kA FTC
-
HCW400ARLoad Break Switch Disconnector h3+ P630 3P 400A FTC
-
HMW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 50kA FTC
-
HMW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 50kA FTC
-
HNW250NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 250A 40kA FTC
-
HNW400NRMoulded Case Circuit Breaker h3+ P630 Energy 3P3D 400A 40kA FTC
Technical properties
Electric current
-
Rated current400 A
Architecture
-
Number of poles4
-
Type of pole4P
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

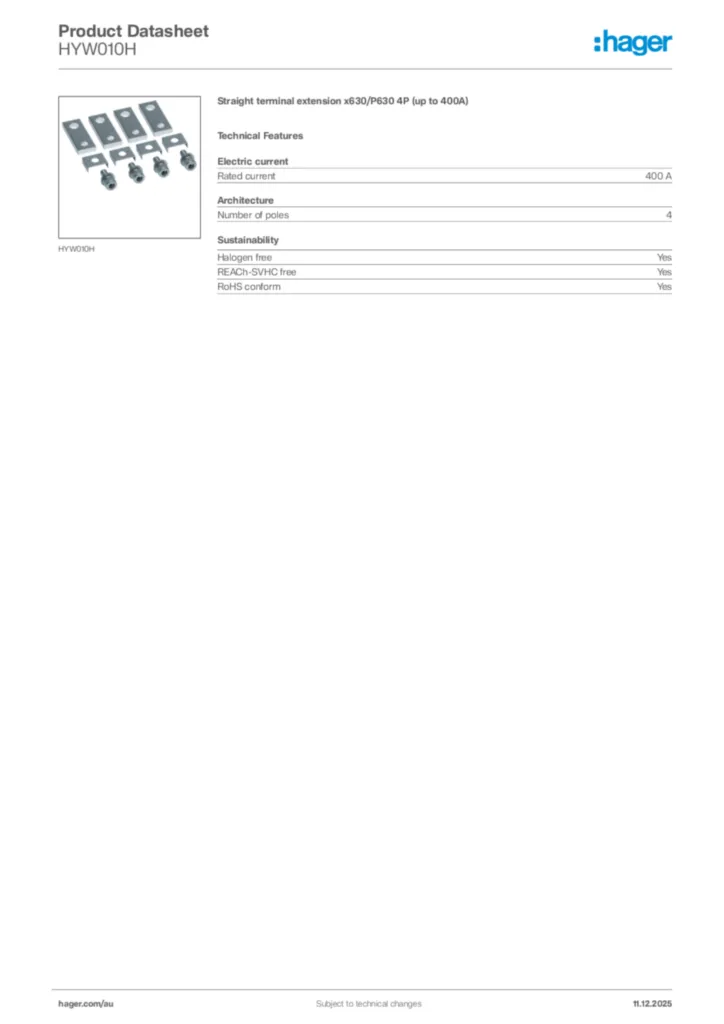

Hager Product data sheet HYW010H
Straight terminal extension x630/P630 4P (up to 400A)
PDF -
Instruction manual
Instruction manual International 2025-01-21
PDF10,29 MB -
Handbook
Technical catalogue
h3+ Moulded Case Circuit breakers up to 630A
PDF48,86 MB
