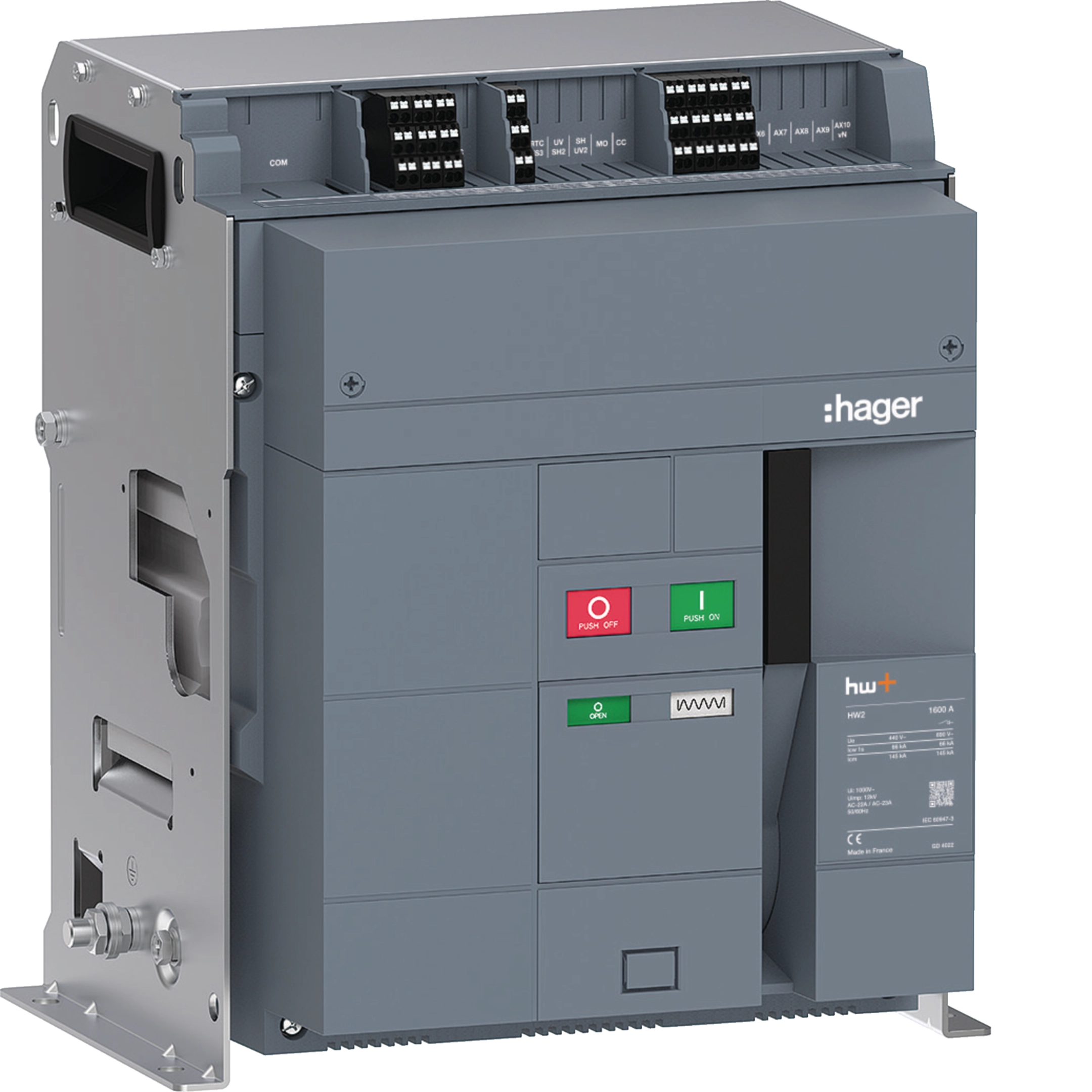

Switch HW2 1600A 3P Fixed, VCVC HE2W316FSAVAAAAAAA

EAN
3250610082799
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Switch HW2 1600A 3P Fixed, VCVC

HE2W316FSAVAAAAAAA

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (22)
    • Motor oper­ator 1 products available
    • Shunt release 3 products available
    • Closing coil 4 products available
    • Under voltage coil 2 products available
    • Auxil­i­aries contact block 2 products available
    • Mech­anic accessories for low-­voltage compon­ents 1 products available

    Complete your system

    • Motor oper­ator
    • Shunt release
    • Closing coil
    • Under voltage coil
    • Auxil­i­aries contact block
    • Mech­anic accessories for low-­voltage compon­ents
    • Auxil­i­aries switch posi­tion
    • Cover func­tions
    • Connec­tion Func­tions
    • Locking inter­locking func­tions
    • HWX014H

      Spring charging motor 200-250V AC 50/60Hz HW2/4 (MO)
      EUR 0.00  / *
    • HWX020H

      Shunt trip coil 24-30V AC/DC (SH)
      EUR 0.00  / *
    • HWX022H

      Shunt trip coil 100-130V AC/DC (SH)
      EUR 0.00  / *
    • HWX023H

      Shunt trip coil 200-250V AC/DC (SH)
      EUR 0.00  / *
    • HWX025H

      Closing coil 24-30V AC/DC (CC)
      EUR 0.00  / *
    • HWX027H

      Closing coil 100-130V AC/DC (CC)
      EUR 0.00  / *
    • HWX028H

      Closing coil 200-250V AC/DC (CC)
      EUR 0.00  / *
    • HWX029H

      Closing coil 380-480V AC (CC)
      EUR 0.00  / *
    • HWX030H

      Undervoltage trip 24-30V AC/DC (UV)
      EUR 0.00  / *
    • HWX033H

      Undervoltage trip 200-250V AC/DC (UV)
      EUR 0.00  / *
    • HWX042H

      Additional auxiliary Switch HW2/4 (AX)
      EUR 0.00  / *
    • HWX043H

      Additional auxiliary Switch low-level HW2/4 (AX)
      EUR 0.00  / *
    • HWX071H

      ON/OFF cycle counter HW2/4 HWS2/4 (CYC)
      EUR 0.00  / *
    • HWX092H

      Ready To Close contact HW2/4 (RTC)
      EUR 0.00  / *
    • HWY090H

      Push Button Cover HW2/4 HWS2/4 (PBC)
      EUR 0.00  / *
    • HWY160H

      Rear Terminal Connection 66/100kA HW2 / HWS2W 3P (RC)
      EUR 0.00  / *
    • HWY218H

      Mechanical interlock 1, 5m cable set
      EUR 0.00  / *
    • HWY226H

      Plate for mech. interlock HW2/4 HWS2/4 FIX Safety (Type 2S) - 1 Plate/ACB (MI)
      EUR 0.00  / *
    • HWY227H

      Plate for mech. interlock HW2/4 HWS2/4 DO Safety (Type 2S) - 1 Plate/ACB (MI)
      EUR 0.00  / *
    • HWY228H

      Mechanical interlock 3m cable set
      EUR 0.00  / *
    • HWY265H

      OFF locking with padlock HW2/4 (OLP)
      EUR 0.00  / *
    • HWY362H

      Dummy for No OFF lock button HW2 HW4
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      1600 A
    • Rated short-­time with­stand current Icw t=1 S 220 - 240 V AC according to IEC 60947 - 3
      66 kA
    • Rated short-­time with­stand current Icw t=1 S 380 - 415 V AC according to IEC 60947 - 3
      66 kA
    Archi­tec­ture
    • Number of poles
      3
    • Device construc­tion type
      Fixed built-in
    Voltage
    • Rated insu­la­tion voltage Ui
      1000 V
    • Rated impulse with­stand voltage Uimp
      12000 V
    Frequency
    • Frequency
      50 - 60 Hz
    Use condi­tions
    • Oper­ating temper­ature
      -25 - 70 °C

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP document en-GB 2025-04-04
    PDF
    1,18 MB
    Hager REACH declaration HE2W316FSAVAAAAAAA
    PDF
    RoHS report HE2W316FSAVAAAAAAA
    PDF

    Downloads

    • Product image

      Image HE2W316FSAVAAAAAAA | Hager Australia

      Product Image HE2W316FSAVAAAAAAA

    • Product datasheet

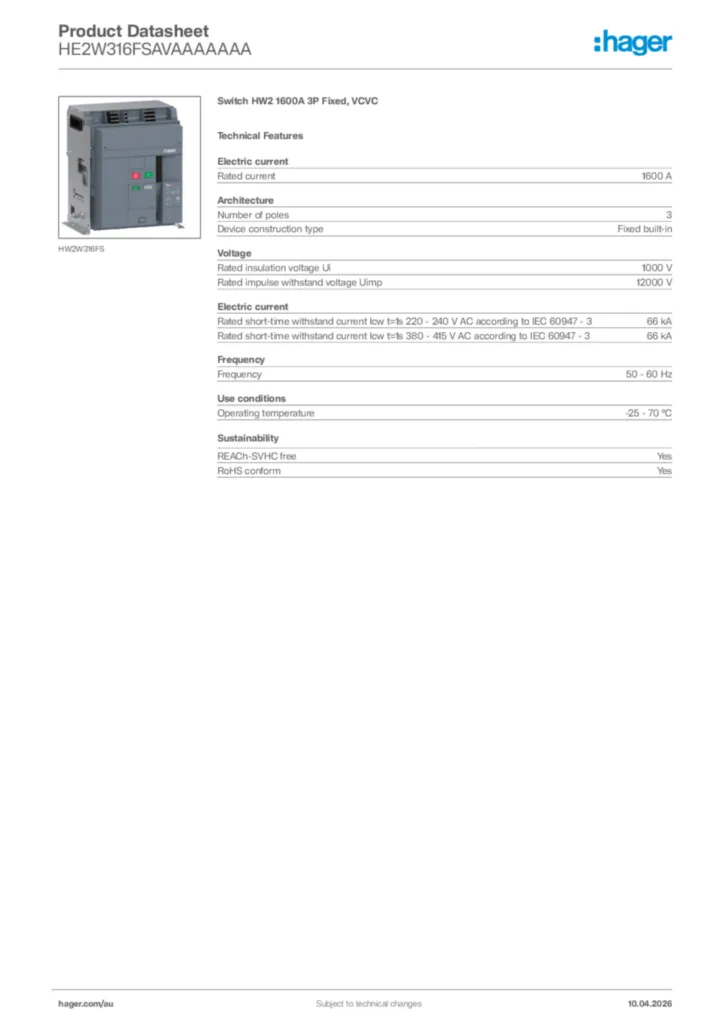

      Image Hager Product data sheet HE2W316FSAVAAAAAAA | Hager Australia

      Hager Product data sheet HE2W316FSAVAAAAAAA

      Switch HW2 1600A 3P Fixed, VCVC

      PDF

    • Instruction manual

      Image QuickInstall manual | Hager Australia

      QuickInstall manual

      hw+ Air circuit breakers HW2

      PDF
      17,79 MB

    • Installation manual

      Image Installation manual | Hager Australia

      Installation manual

      hw+ Air circuit breakers HW2 / HW4 / HW6

      PDF
      57,60 MB
      Image Safety instructions | Hager Australia

      Safety instructions

      -

      PDF
      159,14 kB

    • Manual

      Image Technical catalogue | Hager Australia

      Technical catalogue

      hw+ Air circuit breaker HW1 / HW2 / HW4 / HW6

      PDF
      63,50 MB
      Image User manual | Hager Australia

      User manual

      hw+ Air circuit breakers HW2 / HW4 / HW6

      PDF
      32,56 MB

    • Declaration of conformity

      Image EU Declaration of Conformity | Hager Australia

      EU Declaration of Conformity

      Version of August 1, 2025

      PDF
      405,70 kB
      Image UKCA Declaration of Conformity | Hager Australia

      UKCA Declaration of Conformity

      Version of August 1, 2025

      PDF
      410,42 kB
    More documentation
