    • Home
    • Catalog
    • Main Switchgear
    • Circuit Protec­tion
    • MCCBs - Switch Discon­nectors
    • HCW630AR
    EAN
    3250613198756
    Packaging
    1 Piece
    • MCCBs - Switch Discon­nectors

    Load Break Switch Disconnector h3+ P630 3P 630A FTC Moulded Case HCW630AR

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Load Break Switch Disconnector h3+ P630 3P 630A FTC Moulded Case

    HCW630AR

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

  • See more (40)
    • Under voltage coil 4 products available
    • Oper­ating shaft for power breaker 3 products available
    • Handle with inter­lock for power breaker 1 products available
    • Shunt release 4 products available
    • Auxil­i­aries contact block 4 products available
    • Motor oper­ator 2 products available

    Complete your system

    • Under voltage coil
    • Oper­ating shaft for power breaker
    • Handle with inter­lock for power breaker
    • Shunt release
    • Auxil­i­aries contact block
    • Motor oper­ator
    • Connec­tion Func­tions
    • Locking inter­locking func­tions
    • Phase separ­a­tion func­tions
    • Terminal cover
    • Handle for power circuit breaker
    • Auxil­i­aries inter­locking cable
    • Door coup­ling handle
    • HXA015H

      Undervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA014H

      Undervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA011H

      Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA013H

      Undervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXW912H

      Shaft 14x14mm 200mm (10x10mm)
      EUR 0.00  / *
    • HXW913H

      Shaft 14x14mm 320mm (10x10mm)
      EUR 0.00  / *
    • HXW915H

      Shaft 14x14mm 500mm (10x10mm)
      EUR 0.00  / *
    • HXW032H

      Direct rotary handle for x630/P630, with door lock
      EUR 0.00  / *
    • HXA005H

      Shunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA002H

      Shunt trip 48V DC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA001H

      Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA004H

      Shunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA026H

      Alarm contact low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA021H

      Auxiliary contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA024H

      Alarm contact 1NO+1NC 250V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXA025H

      Auxiliary low level 1NO+1NC 125V AC (x160-P160-x250-P250-x630-P630)
      EUR 0.00  / *
    • HXW044H

      Motor Operator x630/P630 100-240VAC without Auto-Reset
      EUR 0.00  / *
    • HXW042H

      Motor Operator x630/P630 100-240VAC with Auto-Reset
      EUR 0.00  / *
    • HYW014H

      Spread terminal extension x630/P630 3P (up to 630A)
      EUR 0.00  / *
    • HYW013H

      Straight terminal extension x630/P630 4P (up to 630A)
      EUR 0.00  / *
    • HYW007H

      Cage terminal x630/P630 Cu/Al 3P 2x 35-300mm²
      EUR 0.00  / *
    • HYW001H

      Cage terminal x630/P630 Cu/Al 3P 1x 35-300mm²
      EUR 0.00  / *
    • HYD033H

      Rear connection h/x/P 3P 630A
      EUR 0.00  / *
    • HXA039H

      Padlock (x160-P160-x250-P250-x630)
      EUR 0.00  / *
    • HXB071H

      Interlock mechanical cable 1.5m (P160-x250-h250-h400-h630-h800-h1000)
      EUR 0.00  / *
    • HXB070H

      Interlock mechanical cable 1.0m (P160-x250-h250-h400-h630-h800-h1000)
      EUR 0.00  / *
    • HXS999H

      Ronis keylock (P160-P250-x630-P630)
      EUR 0.00  / *
    • HXW066H

      Mechanical interlock front cover x630/P630
      EUR 0.00  / *
    • HXW165H

      Link interlock kit x630/P630 - 3P
      EUR 0.00  / *
    • HYW019H

      Interphase barrier for x630/P630 3/4P
      EUR 0.00  / *
    • HYW052H

      Earth plate for Spread terminal extension P630 3P
      EUR 0.00  / *
    • HYW050H

      Earth plate for Straight terminal extension P630 3P
      EUR 0.00  / *
    • HYW023H

      Terminal cover for Spread terminal extension x630/P630 3P
      EUR 0.00  / *
    • HYW021H

      Terminal cover for Straight terminal extension x630/P630 3P
      EUR 0.00  / *
    • HXW033H

      Toggle extansion P630
      EUR 0.00  / *
    • HXW031H

      Rotary grey handle on door x/P630
      EUR 0.00  / *
    • HXW030H

      Direct rotary handle for x630/P630
      EUR 0.00  / *
    • HXD068H

      Electrical interlock for Motor type A (h400-h630-x630-P630-h800-h1000)
      EUR 0.00  / *
    • HXB069H

      Electrical interlock for Motor type B (x250-P250-h250-h400-h630-h800-h1000)
      EUR 0.00  / *
    • HXW901H

      Handle size 2 IP55 (10x10mm)
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current IN
      630 A
    • Rated short-­time with­stand current Icw IEC 60947
      7,60 kA
    Archi­tec­ture
    • Number of poles
      3
    • Control/­op­er­a­tion element
      Toggle
    Voltage
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated impulse with­stand voltage Uimp
      8000 V
    Frequency
    • Frequency
      50 - 60 Hz
    Func­tions
    • Trip unit
      Switch

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    PEP document en-GB 2024-06-04
    PDF
    418,15 kB
    REACH declaration HCW630AR
    PDF
    RoHS report HCW630AR
    PDF

    Downloads

    • Product image

      Image HCW630AR | Hager Australia

      Product Image HCW630AR

    • Product datasheet

      Image Hager Product data sheet HCW630AR | Hager Australia

      Hager Product data sheet HCW630AR

      Load Break Switch Disconnector h3+ P630 3P 630A FTC

      PDF

    • Instruction manual

      Image Instruction manual International 2025-01-21 | Hager Australia

      Instruction manual International 2025-01-21

      PDF
      10,29 MB

    • Brochure

      Image Hager h3+ MCCB | Hager Australia

      Hager h3+ MCCB

      PDF
      8,80 MB

    • Handbook

      Image Technical catalogue | Hager Australia

      Technical catalogue

      h3+ Moulded Case Circuit breakers up to 630A

      PDF
      48,91 MB

    • Declaration of conformity

      Image Declaration of conformity en-US 2026-07-14 | Hager Australia

      Declaration of conformity en-US 2026-07-14

      PDF
      412,41 kB
      Image Declaration of conformity en-US 2026-07-15 | Hager Australia

      Declaration of conformity en-US 2026-07-15

      PDF
      325,14 kB
    More documentation

    Discover more of this product range

      5
    • 1
      HCT251AR - Load Break Switch Disconnector h3+ P250 4P 250A FTC Moulded case
      HCT251AR
      Load Break Switch Disconnector h3+ P250 4P 250A FTC
    • 2
      HMQ991AR - Load break switch disconnector h3+ PW1600 4P 1600A Ui 1000V Icw 19.2kA
      HMQ991AR
      Load Break Switch Disconnector h3+ PW1600 4P 1600A FTC
    • 3
      HMQ800AR - Load Break Switch Disconnector 3P 800A 1000V Icw 19.2kA h3+ PW1600 FTC
      HMQ800AR
      Load Break Switch Disconnector h3+ PW1600 3P 800A FTC
    • 4
      HCW401AR - Load break switch disconnector h3+ P630 4P 400A FTC molded case
      HCW401AR
      Load Break Switch Disconnector h3+ P630 4P 400A FTC
    • 5

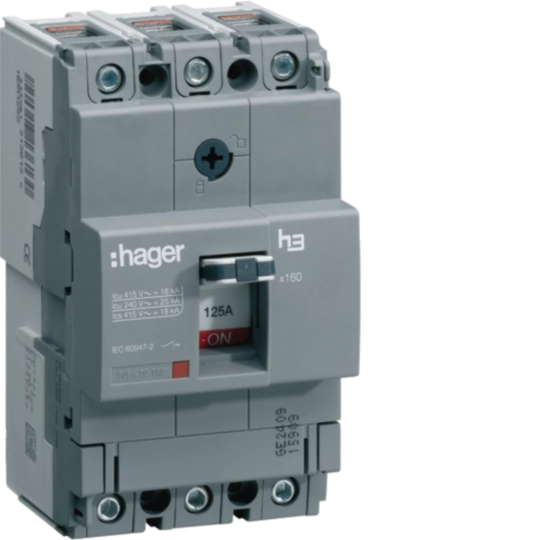

      HCA125Z - Load Break Switch Disconnector 3P 125A Ui 690V Toggle h3 x160
      HCA125Z
      Load Break Switch Disconnector h3 x160 3P 125A CTC
