RCBO 6kA, 2 Module, 1P+N, Type A, 'C' Curve

RCBO 1P+N 6kA C-13A 30mA A Class ADA913T

EAN

3250611011590

Packaging

1 Piece

Technical properties
Documentations
Accessories
More products

Download the data sheet

Technical properties

Neutral position

right
Number of protected poles

1
Number of poles

2 P
Type of pole

1P+N
Curve

C

Number of modules

2

Top connection alignement for modular devices

Aligned terminal
Bottom connection alignement for modular devices

Aligned terminal

Rated operational voltage Ue

230 - 240 V~
Type of supply voltage

AC

Dielectric strength value of power frequency

2 kV
Rated insulation voltage

500 V
Max operating voltage

240 V
Rated impulse withstand voltage

4000 V

Rated residual operating current

30 mA
Rated current

13 A
Withstand not tripping on 8-20 μs wave

250 A
Breaking and opening capacity

4500 A
min/maxi threshold value of the AC thermal operation

1.13 / 1.45 In
Magnetic regulating currrent

5 / 10 In

Rating current -25°C

15.2 A
Rating current -20°C

15.01 A
Rating current -15°C

14.82 A
Rating current -10°C

14.63 A
Rating current -5°C

14.44 A
Rating current 0°C

14.24 A
Rating current 5°C

14.04 A
Rating current 10°C

13.84 A
Rating current 15°C

13.63 A
Rating current 20°C

13.43 A
Rating current 25°C

13.21 A
Rating current 30°C

13 A
Rating current 35°C

12.78 A
Rating current 40°C

12.56 A
Rating current 45°C

12.33 A
Rating current 50°C

12.1 A
Rating current 55°C

11.87 A
Rating current 60°C

11.63 A
Rating current 65°C

11.38 A
Rating current 70°C

11.13 A

Correction factor of rating current for 2 devices placed side-by-side

1
Correction factor of rating current for 3 devices placed side-by-side

0.95
Correction factor of rating current for 4 and 5 devices placed side-by-side

0.9
Correction factor of rating current for 6 devices placed side-by-side

0.85

Depth of installed product

68 mm
Height of installed product

83 mm
Width of installed product

35 mm

Frequency

50 Hz

Total power loss under IN

4.8 W
Power loss per pole at In

3.72 W

Electric endurance in number of cycles

2000
Number of mechanical operations

2000

Type of top connection for modular devices

with screw
Tightening torque

2,1Nm
Type of top rail clip for modular devices

NA
Type of bottom rail clip for modular devices

plastic
Type of Bottom Connection for modular devices

BIconnect + bypass
Top removability for modular devices

No
Bottom removability for modular devices

Yes
Suitable for flush-mounting

Yes

Connection cross-section at output with screw, for flexible conductor

1 / 16 mm²
Connection cross-section at output with screw, for massive conductor

1 / 25 mm²
Connection cross-section for rigid conductor, upstream terminals with screws

1 / 25 mm²
Connection cross-section of the access with screws, with flexible conductor

1 / 16 mm²
Cage clamp position

in line
Downstream cage clamp delivery status

opened
Upstream cage clamp delivery status

opened
Connection cross-section of input and output with screws, for massive conductors

1 / 25 mm²
Connection cross section of access and exit with screws, for flexible conductor

1 / 16 mm²

Length of conductors used for the heating test (m) according to product standard

1 m
Conductor cross-section used for heating test(mm²) according to product standard

1.5 mm²

Can be accessorized

Yes
With transparent product label holder

Yes

Standard text

IEC 61009-1 ; AS/NZS 61009-1

Residual current type

A
REACH conform

No
RoHS conform

Yes
Halogen free

No

Operating temperature

-25…40 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Altitude

2000 m
Air humidity protection

for all climates
Storage/transport temperature

-25…70 °C

Temperature of calibration

30 °C
Ambient air temperature during heating test according to the product standard

22.7 °C
Max. admissible temperature on accessible parts (intended to be touched)

68.6 °C
Max. admissible temperature on accessible parts (manual operating means)

51.1 °C
Max. admissible temperature on access. parts (not touched for normal operation)

76.4 °C
Max. admissible temperature on terminals

75.3 °C
Temp.-rise limits for access. parts (toggle) according to product standard

25 K
Temp.-rise limits for access. parts (not touched) according to product standard

60 K
Temp.rise limits for access. parts (to be touched) according to product standard

40 K
Temperature-rise limits for terminals according to the product standard

65 K
Temperature-rise measured on accessible parts at In (manual operating means)

11.1 K
Temperature-rise measured on access. parts at In (not touched normal operation)

36.4 K
Temperature-rise measured on accessible parts at In (intended to be touched)

28.6 K
Temperature-rise measured on terminals at In

35.3 K

Downloads

Product image

Product Image ADA913T
Instruction manual

Instruction manuals for ADA913T

PDF

1 MB

Notice RCBO 6kA bypass_GB

PDF

2 MB

Notice autocollante

PDF

152 KB
User brochure

Onekonekt_Brochure

PDF

2 MB

Safe and Simple for All Applications

PDF

6 MB

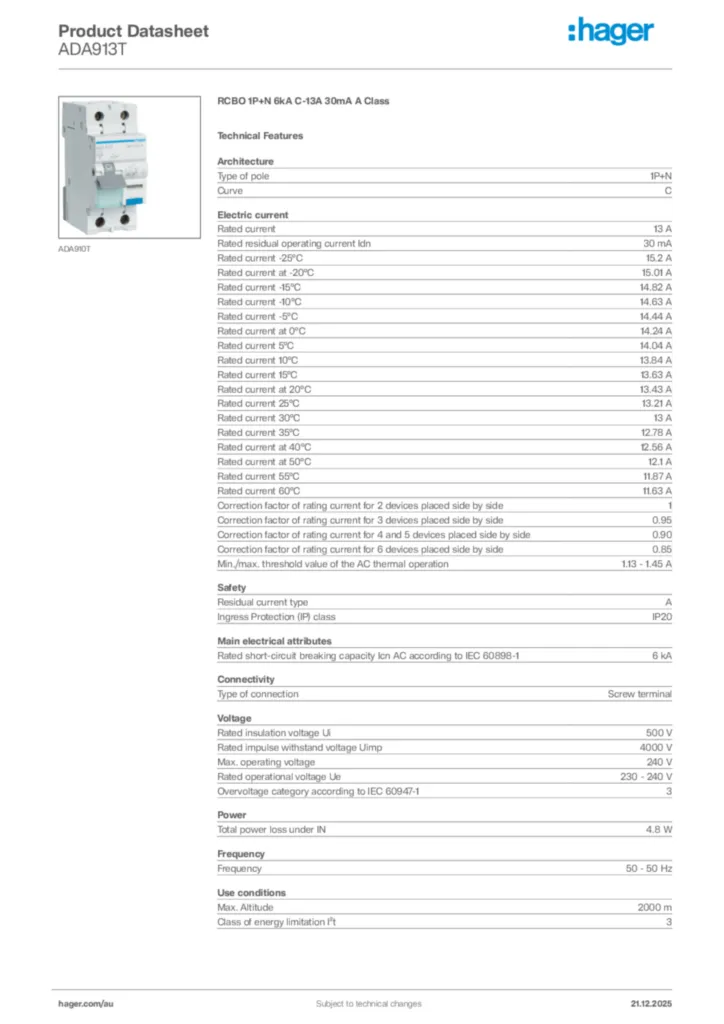

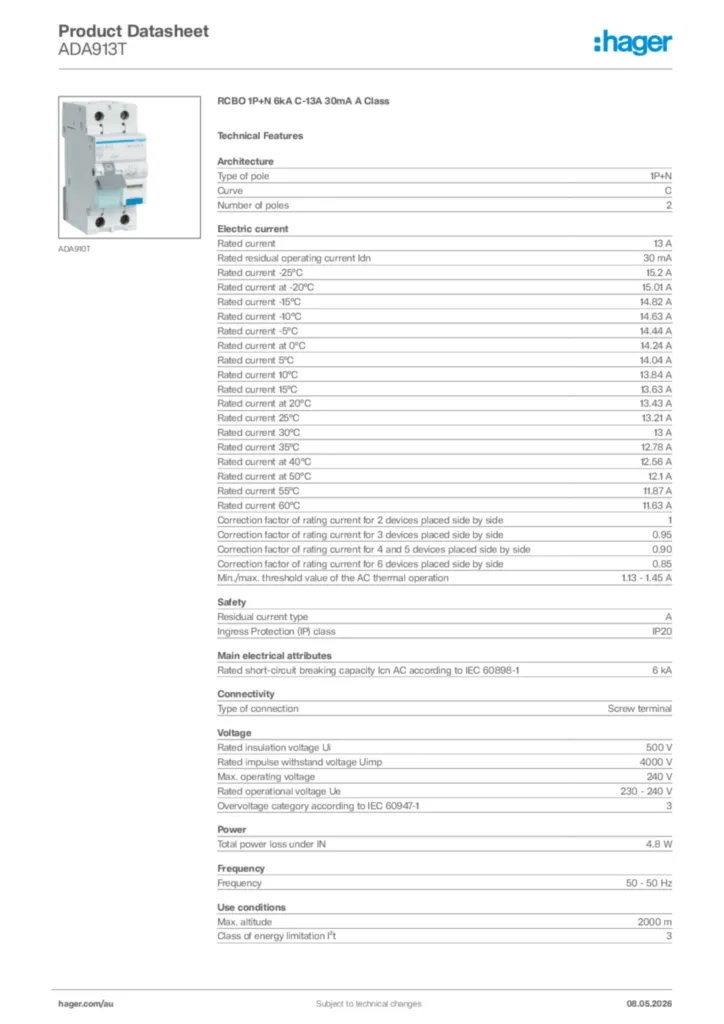

Product data sheet
