hw Air Circuit Breaker range
High powered


Reli­able prot­ection for every comme­rcial applic­ation.


Whether you're an elect­rical cons­ultant, panel builder, installer, or facility operator, hw Air Circuit Brea­kers are built to meet your needs. Desi­gned for high perfo­rmance, safety, and easy inte­g­ration, they help you improve system design, simplify construction, and ensure smooth operation across all types of comme­rcial buildings. Explore the features that make HW the smart choice for modern low voltage elect­rical systems.

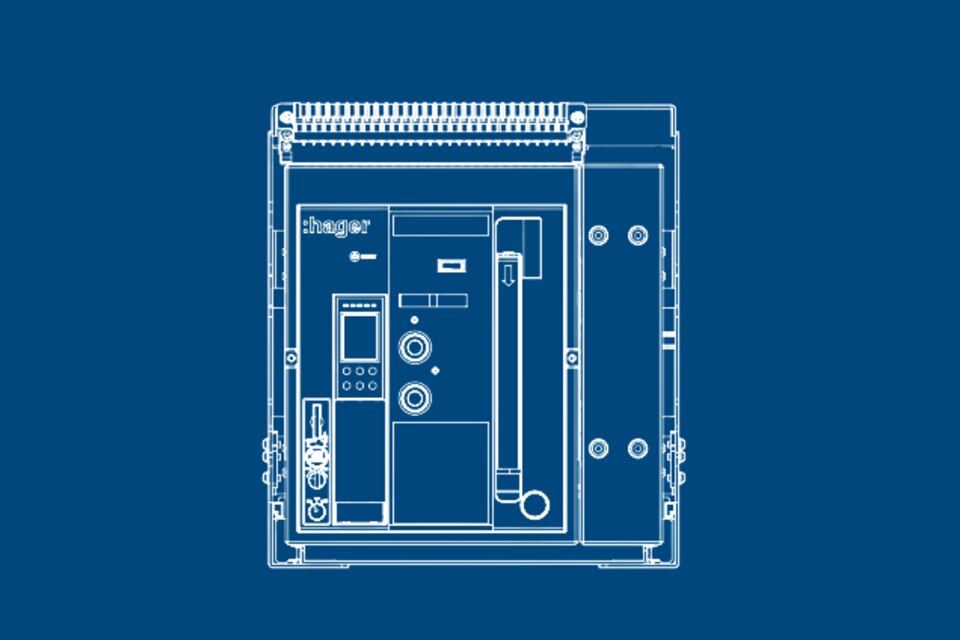

univers

Maxi­mise the pote­nt­i­onal


Local content

Inte­l­li­gent OCR

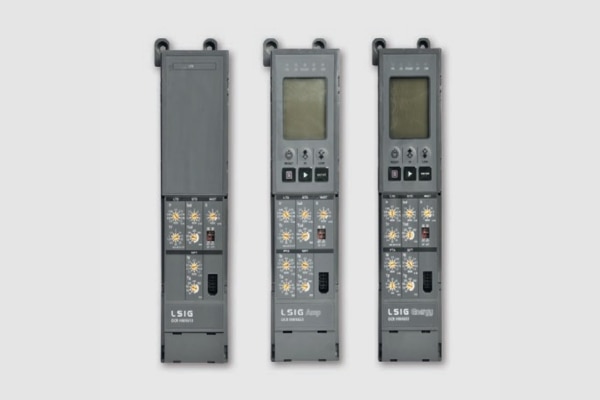

LSIGN prot­ection, LCD display, pre-trip alarm, fault reco­rding, remote reset. Signal indic­ation LED PTA/LSI/GF/ COM.


02 hw acb

Flex­ible prot­ection

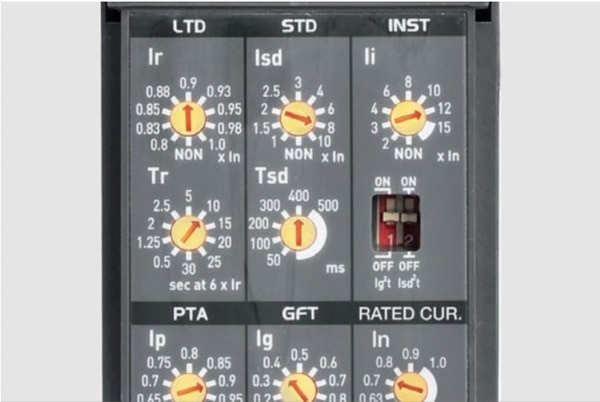

Can switch ON/OFF LSIGN and thermal memory sepa­rately.

003 hw acb

Fast & econ­omic

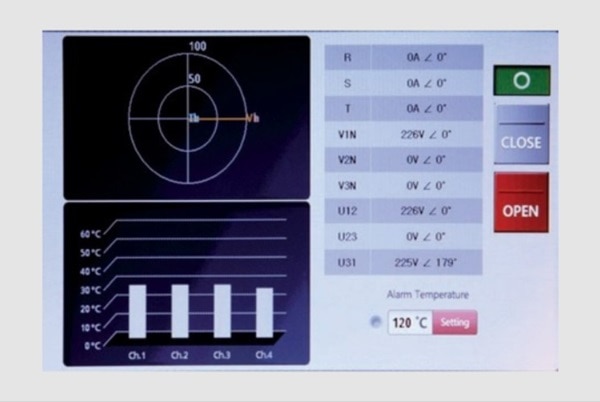

to build up commun­ic­ation network. Commun­ic­ation module inte­g­rated in OCR.

4

Easy mainte­n­ance

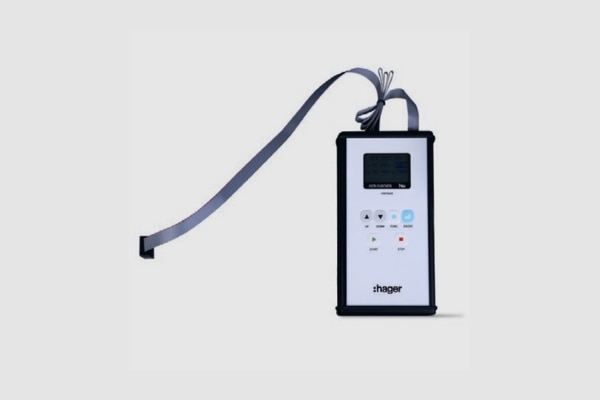

Event record 200, fault record 250 (rese­rved for ever), OCR checker tool.

03 hw acb

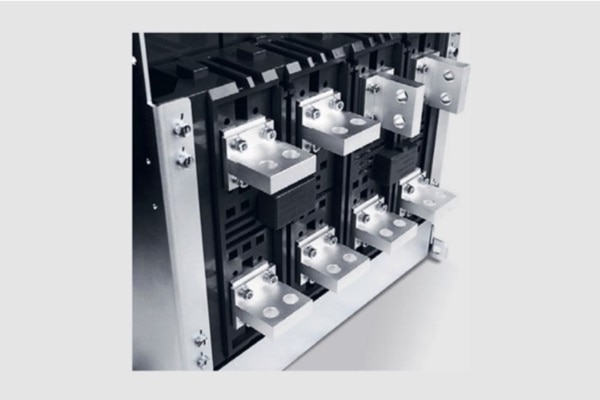

Flex­ible term­inal conn­ection

Horizontal/Vert­ical term­inal rotate at 90° to make it easier for panel builder to mount on busbars. For frame A up to 1600A and frame B up to 3200A.

6

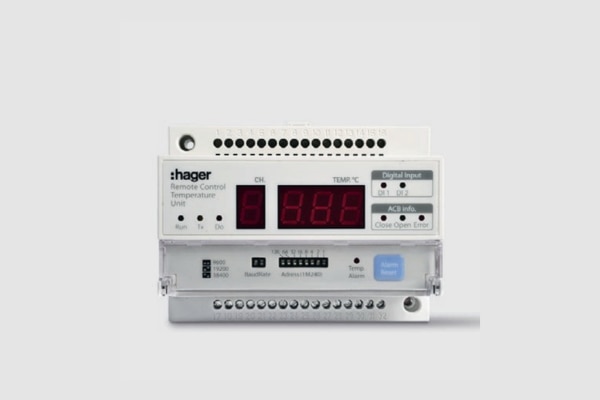

Wide range of acce­s­s­ories

Incl­uding: arc shield, phase barrier, tempe­rature sensor, dust cover (IP54).

of

Inte­g­rated prot­ection with hw Air Circuit Brea­kers

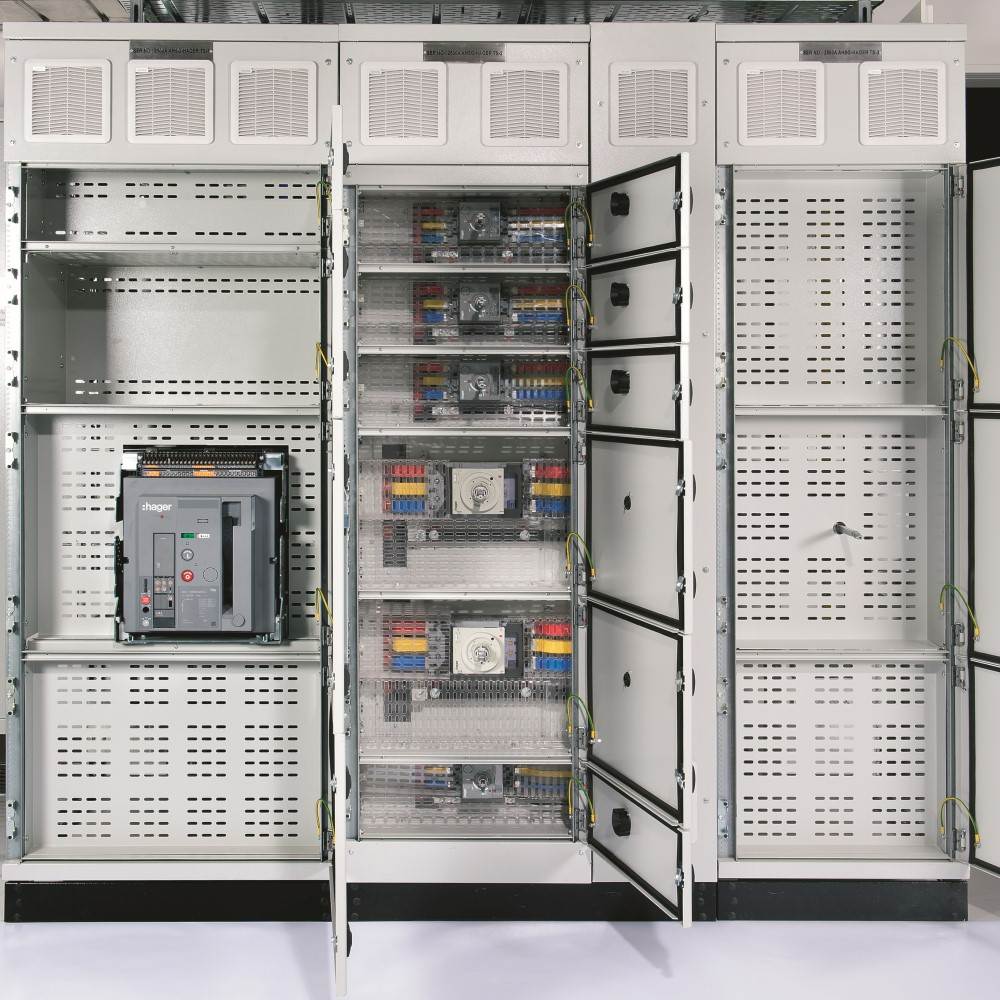

All air circuit brea­kers of the hw range can be easily inte­g­rated into the Unimes.ME power distrib­ution switch board. This way, the core of your power supply is exactly where it belongs - at the heart of your switc­hgear - and offers reli­able prot­ection against overl­oads, short circ­uits and other factors.

Techn­ical data

  • Comply with: IEC 60947-2.
  • Rated current range: 630-5000A with 3 frames.
  • Brea­king capacity: 50, 65, 85, 100kA.
  • Rated voltage: 690V.
  • Insu­l­ated voltage: 1000V.
  • Impulse voltage: 12KV.
  • Switch Disc­o­n­n­ector.
  • 3 kinds of OCR: Basic, Amp, Energy.
HW_ACB_ME_WebPage

Product Structure

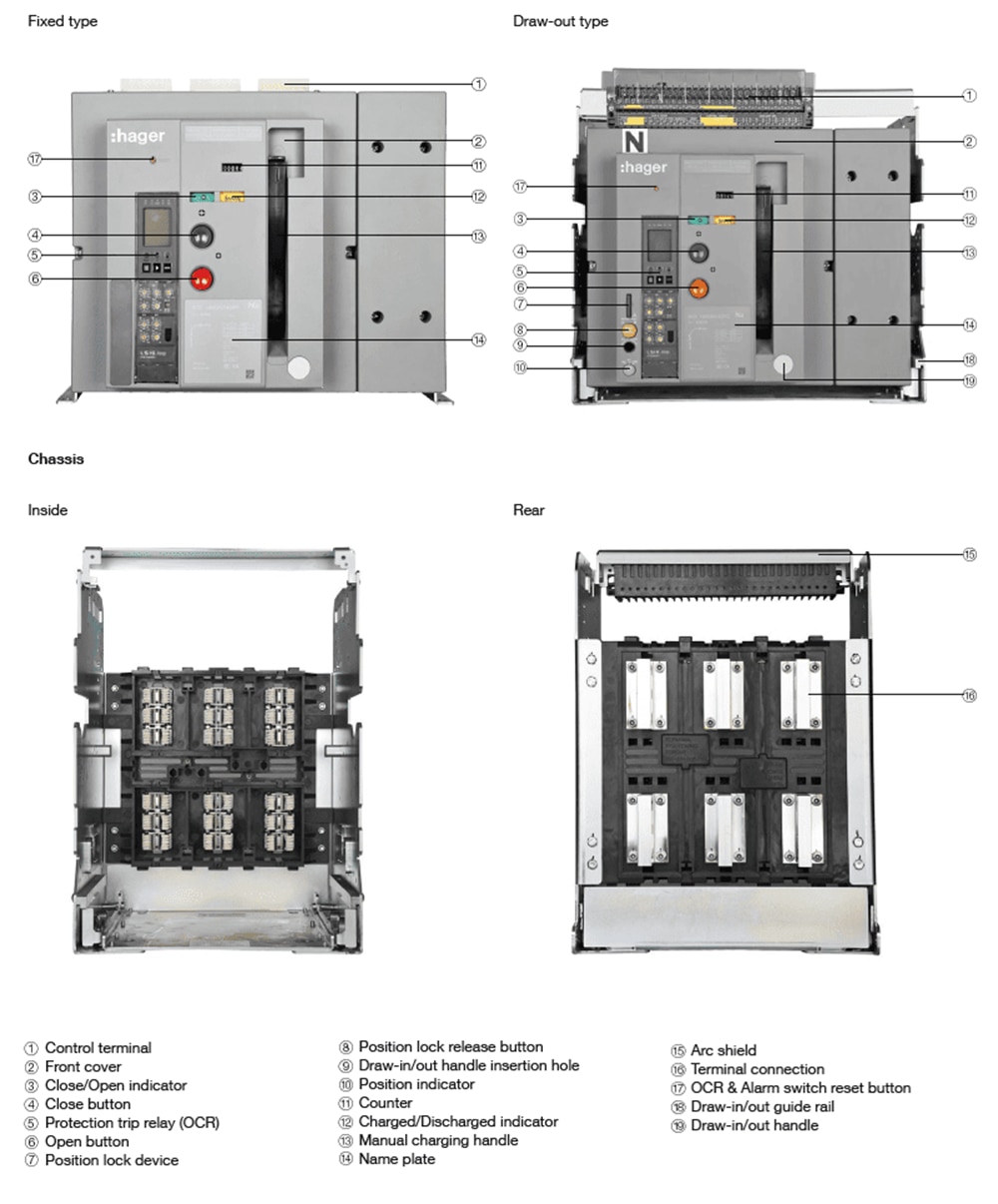

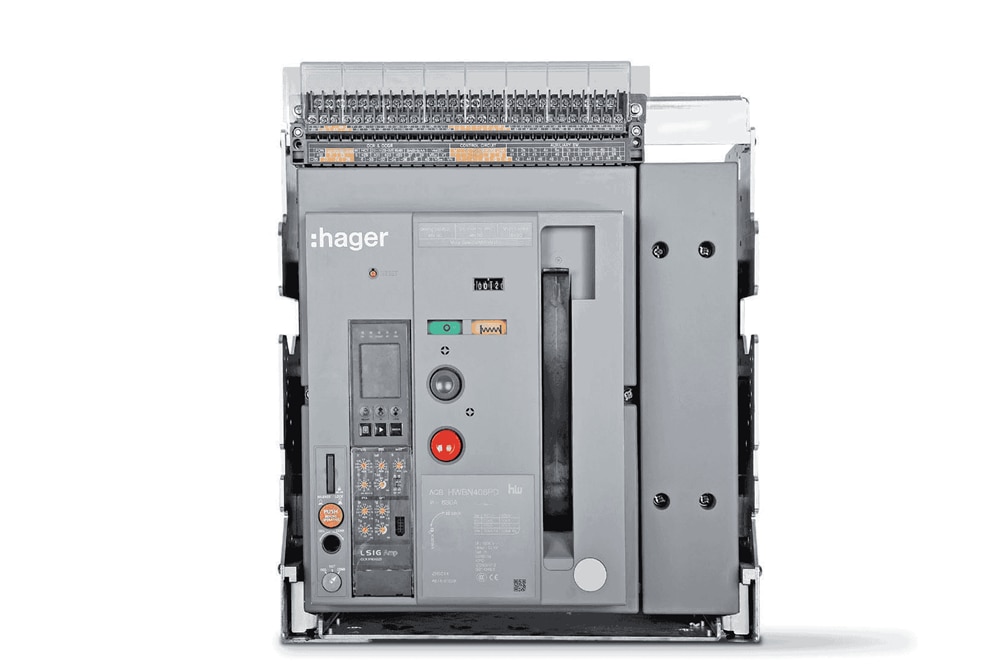

The Hager hw Air Circuit Breaker range is desi­gned for reli­able prot­ection and control in low-voltage power distrib­ution. The structure incl­udes fixed and withd­ra­w­able vers­ions, with a wide choice of frame sizes, brea­king capac­ities, and advanced elect­ronic prot­ection units.

Each product is engin­e­ered for easy inte­g­ration, flex­ible confi­guration, and maximum safety in crit­ical power applic­at­ions.
HW_ACB_Product_Structure

Your docume­ntation

hw ACB - High powered

PDF (2.1 Mb)

Download now
HW Brochure

Have a question?

Our team of techn­ical experts are on hand and ready to answer any quest­ions you may have!

Contact us
