EAN-Nr.

3250617272360

Packaging

8 Pieces

Socket outlets

16A SINGLE USSO with USB, NB WGDS116ISUSBNB

Name: WGDS116ISUSBNB
Brand: Hager
SKU: WGDS116ISUSBNB

Also available in

Product colour - Bronze

Accessories
Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Complete your system

Referenced by 20 products available

Technical characteristics

Rated voltage

230 V
Output voltage

0-0 V

Output current

2,400 mA
Rated current

16 A

Frequency

50 - 60 Hz

Output power

0
Power consumption standby

0.15 W

Colour

Bronze
Surface finish

Matt
Material

Polycarbonate (PC)
Treatment

Coated
Contains recycled material (% of total plastic weight)

0

Height

29 mm
Width

86 mm
Depth

29 mm
Built-in depth flush-mounted boxes

35 mm
Built-in depth

29 mm

Cable length

0

Connector/plug type

British Standard
Cross-section flexible conductor without wire end sleeve

0.08 - 4 mm²

Mounting on

Flush mounting
Mounting-/Connection Position

Back

Type of connection

Screw terminal
With claw mounting

No
Mounting type

Screw mounting
Connector/plug type USB

AA

Connector/plug type socket outlet

British Standard
Rotated central insert

No
With hinged lid

No
With round protective earth pin

No
With signal lamp

No
With lock

No

Has labelling field

No
Pre-equipped with

None

Number of modules

0

With enhanced contact protection

No
Impact resistance IK

IK02
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

shark

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes

Certifications and documents

Hager REACH declaration WGDS116ISUSBNB

PDF

Hager RoHS report WGDS116ISUSBNB

PDF

Downloads

Product Image WGDS116ISUSBNB

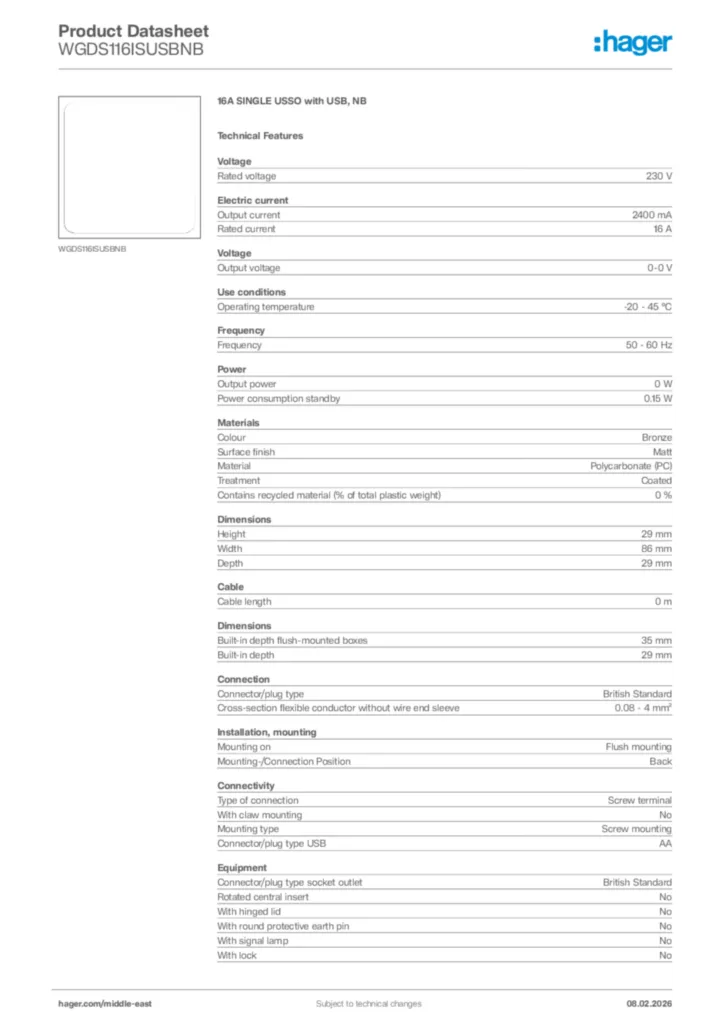

Product datasheet

Hager Product data sheet WGDS116ISUSBNB

16A SINGLE USSO with USB, NB

PDF
Installation manual

Manual for WGDS116ISUSBXX - Switched universal socket USB (EN, 2019-11)

Installation manual en-GB 2020-01-01

PDF

1,09 MB
Declaration of conformity

20210719_16A_switched_universal_sockets_with_USBchargers

Declaration of conformity en-GB 2022-12-30

PDF

93,17 kB
