Wiring accessories

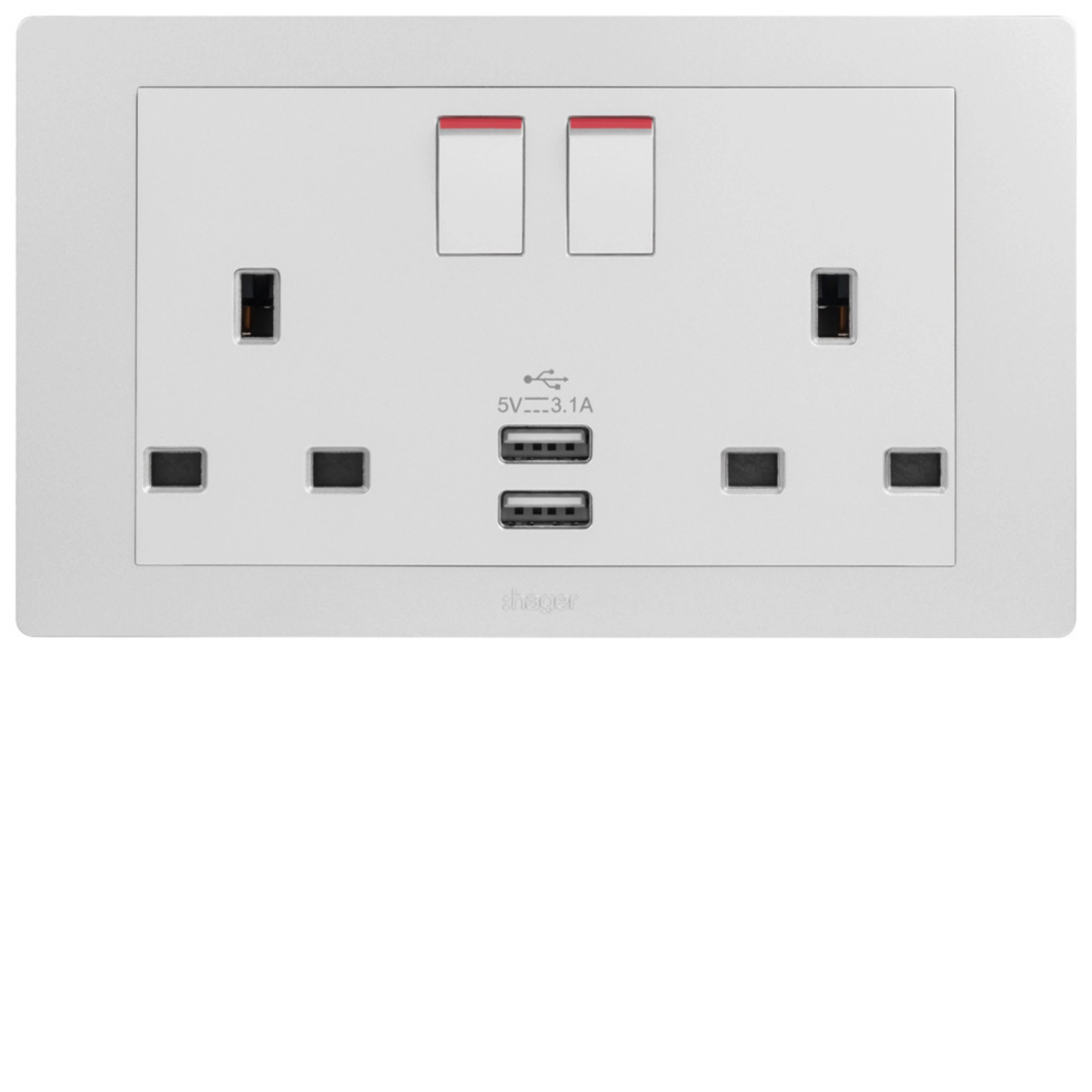

13A TWIN SWITCHED SOCKET+2 USB, AS WGMS213SUSBAS

Name: WGMS213SUSBAS
Brand: Hager
SKU: WGMS213SUSBAS

EAN-Nr.

3250617272735

Packaging

10 Pieces

Accessories
Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Complete your system

Referenced by 1 products available

Technical characteristics

Rated current

13 A
Output current

2,400 mA

Rated voltage

230 V
Nominal voltage

220-240 V
Output voltage

0-0 V

Frequency

50 - 60 Hz

Output power

0
Power consumption standby

0.15 W

Colour

Aurora silver
Surface finish

Matt
Material

Polycarbonate (PC)
Treatment

Coated
Contains recycled material (% of total plastic weight)

0

Height

20 mm
Width

86 mm
Depth

20 mm
Built-in depth flush-mounted boxes

35 mm
Built-in depth

20 mm

Connector/plug type

British Standard
Cross-section flexible conductor without wire end sleeve

0.08 - 4 mm²

Mounting on

Flush mounting
Mounting-/Connection Position

Back

Type of connection

Screw terminal
With claw mounting

No
Mounting type

Screw mounting
Connector/plug type USB

AA

Connector/plug type socket outlet

British Standard
Rotated central insert

No
With hinged lid

No
With round protective earth pin

No
With signal lamp

No
With lock

No

Has labelling field

No
Pre-equipped with

None

Number of modules

0

With enhanced contact protection

No
Impact resistance IK

IK02
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

shark

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration WGMS213SUSBAS

PDF

Hager RoHS report WGMS213SUSBAS

PDF

Downloads

Product Image WGMS213SUSBAS

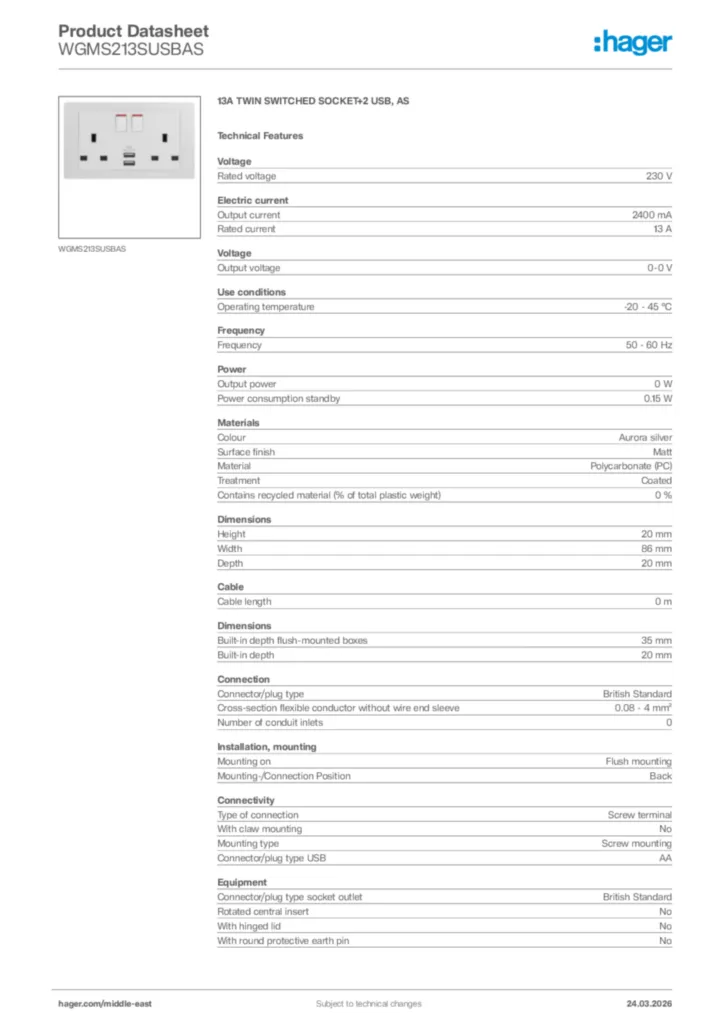

Product datasheet

Hager Product data sheet WGMS213SUSBAS

13A TWIN SWITCHED SOCKET+2 USB, AS

PDF
Declaration of conformity

Declaration

Declaration of conformity en-GB 2022-12-29

PDF

105,27 kB

13A TWIN SWITCHED SOCKET+2 USB, AS WGMS213SUSBAS
