EAN-Nr.

3250617288644

Packaging

1 piece

Hotel applications

115/230V shaver socket WGDHSR

Name: WGDHSR
Brand: Hager
SKU: WGDHSR

Also available in

On/off switch

No Yes

Accessories
Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Complete your system

Referenced by 4 products available

Technical characteristics

Rated voltage

250 V
Output voltage

0-0 V

Output current

0
Rated current

0.08 A

Frequency

50 - 60 Hz

Output power

0
Power consumption standby

0

Colour

White
Surface finish

Glossy
Material

Polycarbonate (PC)
Treatment

Untreated
Contains recycled material (% of total plastic weight)

0

Height

38 mm
Width

86 mm
Depth

45 mm
Built-in depth flush-mounted boxes

47 mm
Built-in depth

45 mm

Cable length

0

Connector/plug type

NEMA
Cross-section flexible conductor without wire end sleeve

0.08 - 4 mm²

Mounting on

Flush mounting
Mounting-/Connection Position

Back

Type of connection

Screw terminal
With claw mounting

No
Mounting type

Screw mounting
Connector/plug type USB

British Standard

Connector/plug type socket outlet

British Standard
Rotated central insert

No
With hinged lid

No
With round protective earth pin

No
With signal lamp

No
With lock

No

Has labelling field

No
Pre-equipped with

None

Number of modules

0

With enhanced contact protection

No
Impact resistance IK

IK02
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

shark

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration WGDHSR

PDF

Hager RoHS report WGDHSR

PDF

Downloads

Product Image WGDHSR

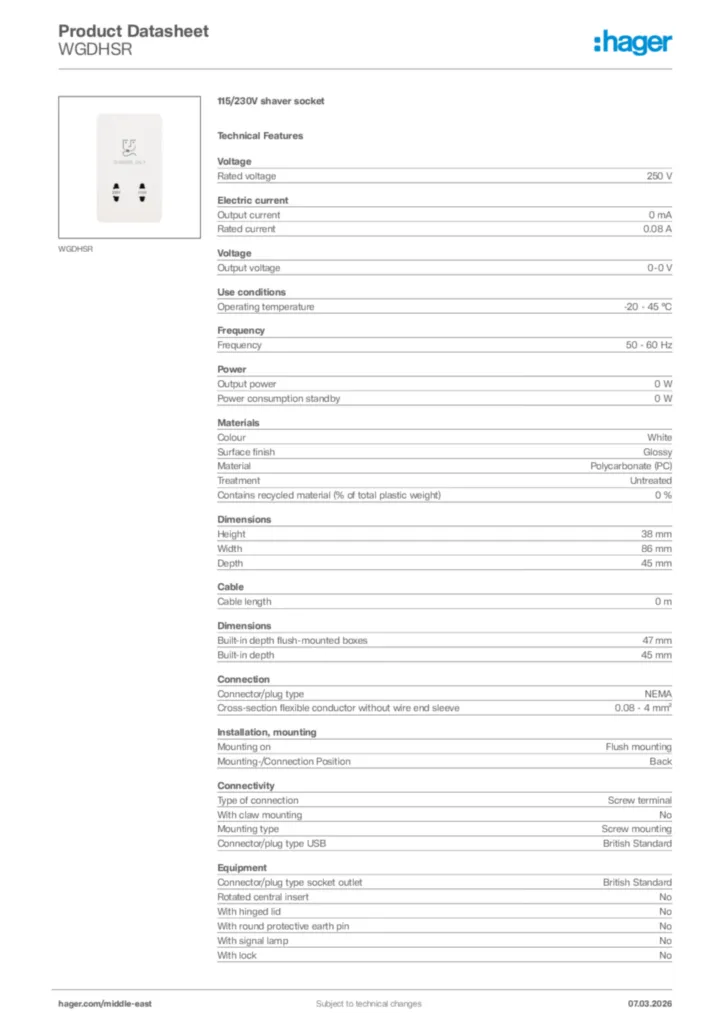

Product datasheet

Hager Product data sheet WGDHSR

115/230V shaver socket

PDF
Installation manual

Manual for WGDHSRXX - Shaver socket (EN, 2019-04)

Installation manual en-GB 2020-01-01

PDF

845,48 kB
Declaration of conformity

dc22-1052

Declaration of conformity en-GB 2022-12-29

PDF

91,81 kB

dc22-1060

Declaration of conformity en-GB 2022-12-29

PDF

93,35 kB

115/230V shaver socket WGDHSR
