EAN-Nr.

3250617278188

Packaging

10 Pieces

Socket outlets

15A SINGLE SWITCHED SOCKET, Aurora Silver WGCXS115SAS

Name: WGCXS115SAS
Brand: Hager
SKU: WGCXS115SAS

Also available in

Product colour - Aurora silver

On/off switch

No Yes

Accessories
Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Complete your system

Referenced by 1 products available

Technical characteristics

Rated voltage

250 V
Output voltage

0-0 V

Output current

0
Rated current

15 A

Frequency

50 - 60 Hz

Output power

0
Power consumption standby

0

Colour

Aurora silver
Surface finish

Matt
Material

Polycarbonate (PC)
Treatment

Coated
Contains recycled material (% of total plastic weight)

0

Height

39.5 mm
Width

86 mm
Depth

22 mm
Built-in depth flush-mounted boxes

35 mm
Built-in depth

22 mm

Cable length

0

Connector/plug type

British Standard
Cross-section flexible conductor without wire end sleeve

0.08 - 4 mm²

Mounting on

Flush mounting
Mounting-/Connection Position

Back

Type of connection

Screw terminal
With claw mounting

No
Mounting type

Screw mounting
Connector/plug type USB

British Standard

Connector/plug type socket outlet

British Standard
Rotated central insert

No
With hinged lid

No
With round protective earth pin

No
With signal lamp

No
With lock

No

Has labelling field

No
Pre-equipped with

None

Number of modules

0

With enhanced contact protection

No
Impact resistance IK

IK02
Ingress Protection (IP) class

IP20

With orientation lighting

No
With function lighting

No

With imprint

No

Related Systems

shark

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes

Certifications and documents

REACH declaration WGCXS115SAS

PDF

RoHS report WGCXS115SAS

PDF

PEP document en-GB 2024-09-27

PDF

423,48 kB

Downloads

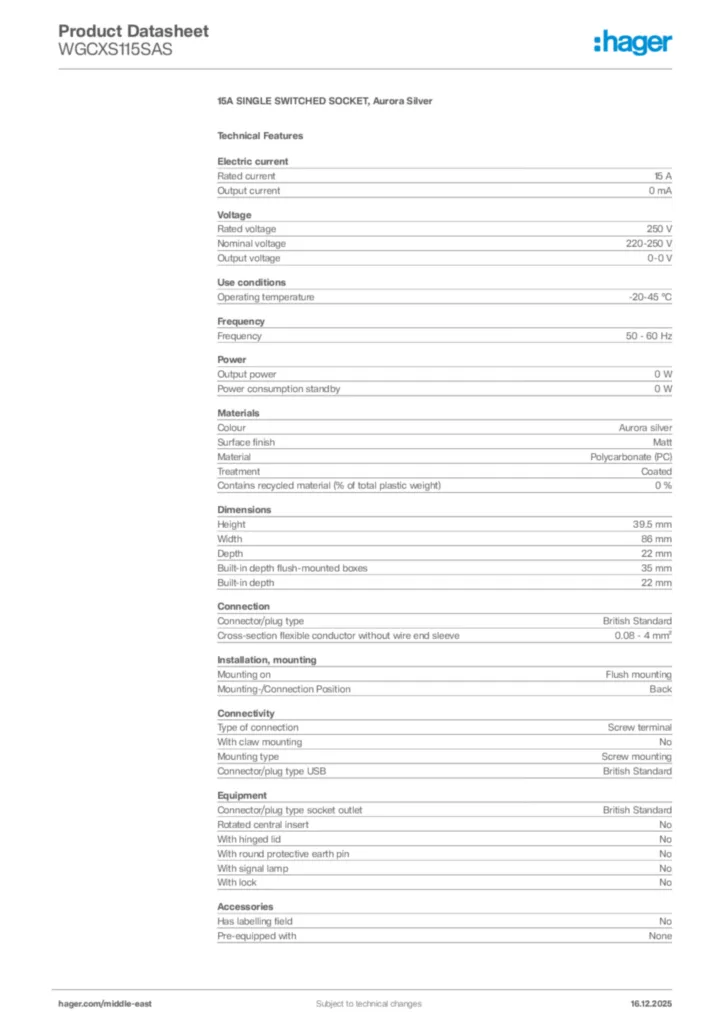

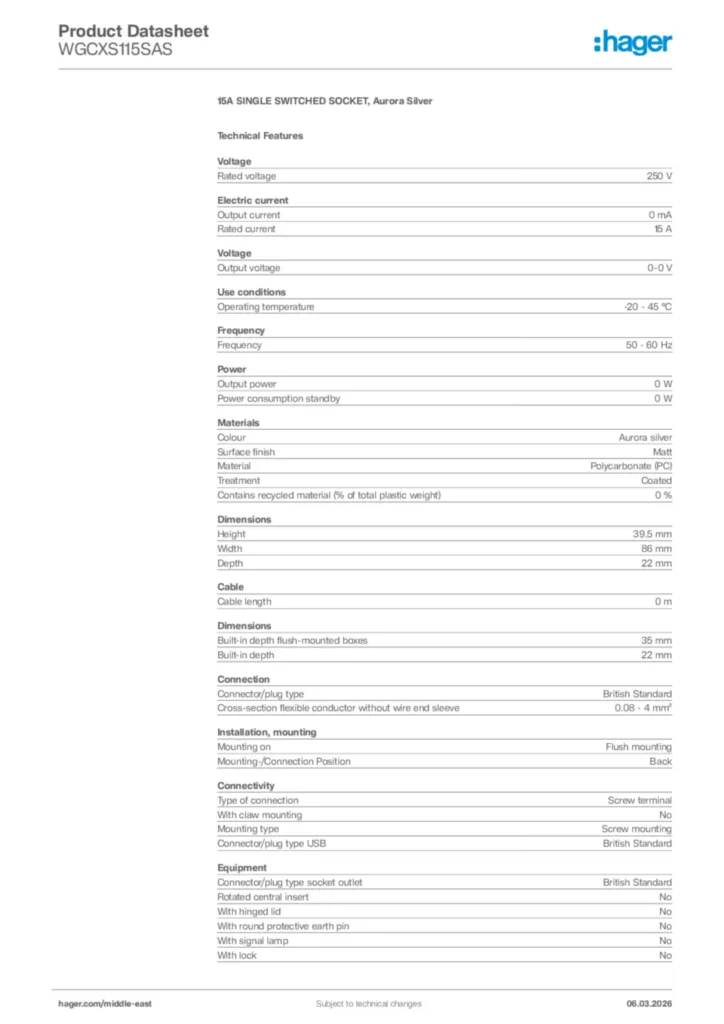

Product datasheet

Hager Product data sheet WGCXS115SAS

15A SINGLE SWITCHED SOCKET, Aurora Silver

PDF
Manual

Manual en-GB 2026-01-14

PDF

318,31 kB
Declaration of conformity

BOC_CE_CERT_ALU-B_IT_EN_28102022

Declaration of conformity en-GB 2022-12-29

PDF

91,93 kB

Declaration of conformity en-GB 2024-07-29

PDF

728,45 kB
