    • Home
    • Catalogue
    • Wiring accessories
    • Hager inspire
    • Socket outlets
    • WGCS113SN
    EAN-Nr.
    3250617298230
    Packaging
    10 Pieces
    • Socket outlets

    13A SWITCHED SOCKET W/ LED WGCS113SN

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    13A SWITCHED SOCKET W/ LED

    WGCS113SN

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Compatible products

    • Referenced by 5 products available

    Referenced by

    • WGCCH2

      2G multi-gang frame (horizontal)
      0.00 €  / *
    • WGCCH3

      3G multi-gang frame (horizontal)
      0.00 €  / *
    • WGCCH4

      4G multi-gang frame (horizontal)
      0.00 €  / *
    • WGCCH5

      5G multi-gang frame (horizontal)
      0.00 €  / *
    • WGCC1S

      1G frame (square)
      0.00 €  / *

    Technical characteristics

    Voltage
    • Rated voltage
      250 V
    • Output voltage
      0-0 V
    Electric current
    • Output current
      0
    • Rated current
      13 A
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Output power
      0
    • Power consumption standby
      0
    Materials
    • Colour
      White
    • Surface finish
      Glossy
    • Material
      Polycarbonate (PC)
    • Treatment
      Untreated
    • Contains recycled material (% of total plastic weight)
      0
    Dimensions
    • Height
      18 mm
    • Width
      86 mm
    • Depth
      18 mm
    • Built-in depth flush-mounted boxes
      35 mm
    • Built-in depth
      18 mm
    Cable
    • Cable length
      0
    Connection
    • Connector/plug type
      British Standard
    • Cross-section flexible conductor without wire end sleeve
      0.08 - 4 mm²
    Installation, mounting
    • Mounting on
      Flush mounting
    • Mounting-/Connection Position
      Back
    Connectivity
    • Type of connection
      Screw terminal
    • With claw mounting
      No
    • Mounting type
      Screw mounting
    • Connector/plug type USB
      British Standard
    Equipment
    • Connector/plug type socket outlet
      British Standard
    • Rotated central insert
      Yes
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      Yes
    • With lock
      No
    Accessories
    • Has labelling field
      No
    • Pre-equipped with
      None
    Capacity
    • Number of modules
      0
    Controls and indicators
    • Type of lighting for the installation devices
      Operating control light only with lighting accessories
    Safety
    • With enhanced contact protection
      No
    • Impact resistance IK
      IK02
    • Ingress Protection (IP) class
      IP20
    Functions
    • With orientation lighting
      No
    • With function lighting
      No
    Identification
    • With imprint
      No
    • Related Systems
      shark

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    REACH declaration WGCS113SN
    PDF
    RoHS report WGCS113SN
    PDF

    Downloads

    • Image WGCS113SN | Hager

      Product Image WGCS113SN

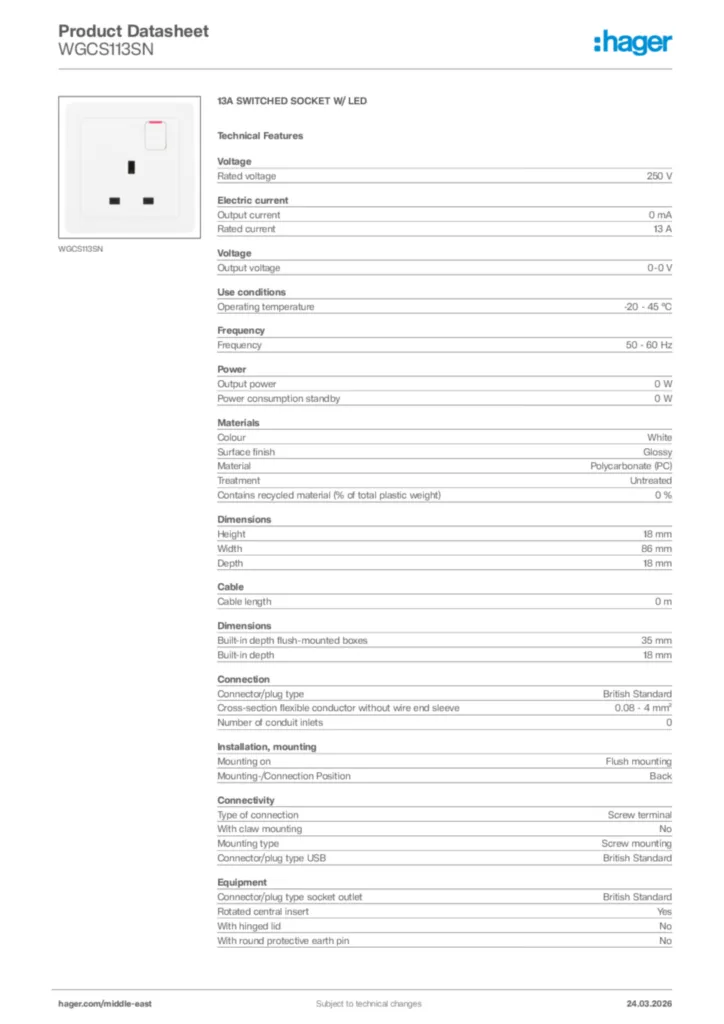

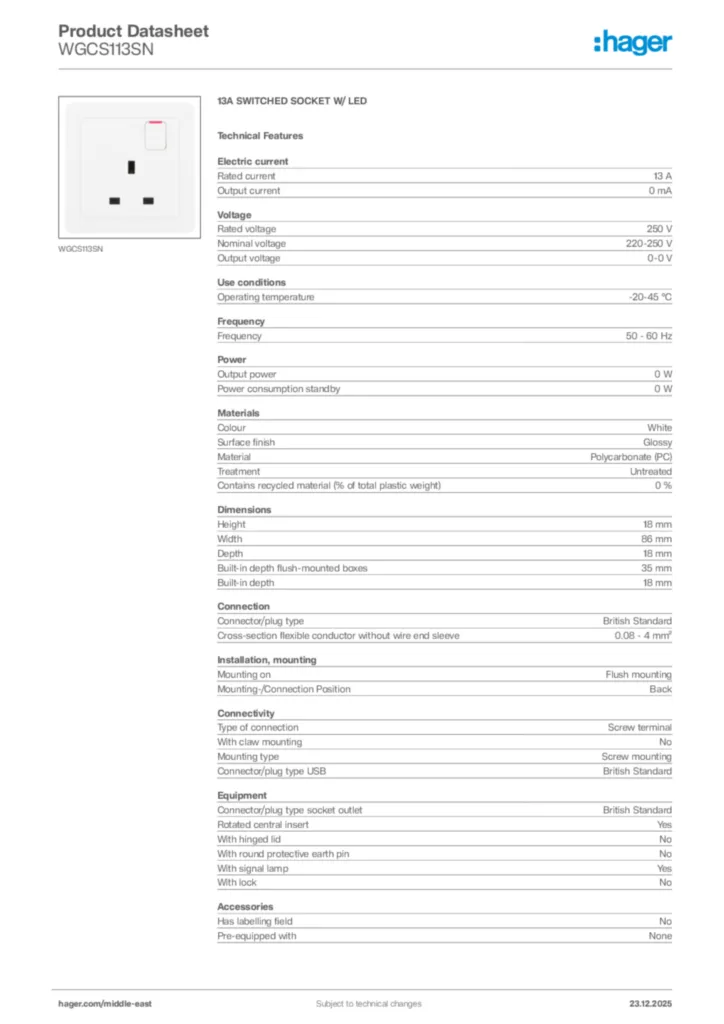

    • Product datasheet

      Image Hager Product data sheet WGCS113SN | Hager

      Hager Product data sheet WGCS113SN

      13A SWITCHED SOCKET W/ LED

      PDF

    • Installation manual

      Image Installation manual International 2019-04-15 | Hager

      Installation manual International 2019-04-15

      PDF
      1,47 MB
    More documentation

    Discover our other products of this range

      5
    • 1
      WGCS116S - 16A GERMAN SOCKET W/SHUTTER
      WGCS116S
      16A GERMAN SOCKET W/SHUTTER
    • 2
      WGCS113SUSB - 13A SINGLE SWITCHED SOCKET + USB
      WGCS113SUSB
      13A SINGLE SWITCHED SOCKET + USB
    • 3
      WGCS115S - 15A SINGLE SWITCHED SOCKET
      WGCS115S
      15A SINGLE SWITCHED SOCKET
    • 4
      WGCXS116EANB - 16A SINGLE EURO-AMERICAN SOCKET, NB
      WGCXS116EANB
      16A SINGLE EURO-AMERICAN SOCKET, NB
    • 5
      WGCXS113SKB - 13A SINGLE SWITCHED SOCKET, KB
      WGCXS113SKB
      13A SINGLE SWITCHED SOCKET, KB
