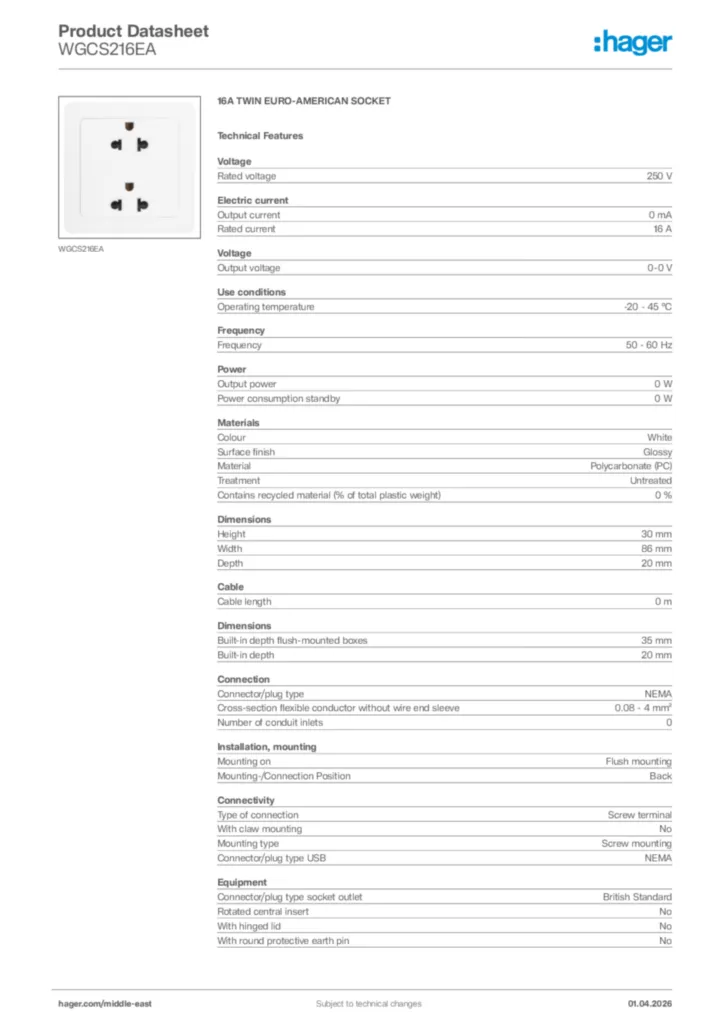

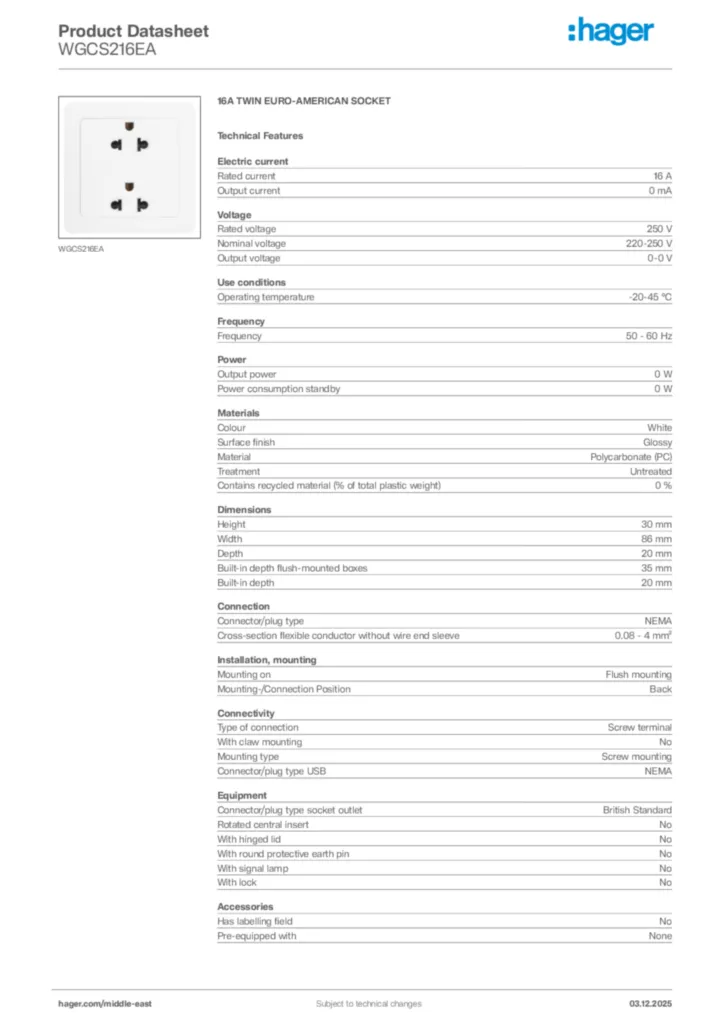

16A TWIN EURO-AMERICAN SOCKET • WGCS216EA | Hager
Location Middle-East

  • Better buildings. Better tomorrows.

    • Menu
    Account
    EAN-Nr.
    3250617507738
    Packaging
    10 Pieces

    16A TWIN EURO-AMERICAN SOCKET WGCS216EA

    Also available in

    On/off switch
    No
    No
    Yes
    Yes

    Complete your system

    Compatible products

    • Referenced by 5 products available

    Technical characteristics

    Voltage
    • Rated voltage
      250 V
    • Output voltage
      0-0 V
    Electric current
    • Output current
      0
    • Rated current
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Output power
      0
    • Power consumption standby
      0
    Materials
    • Colour
      White
    • Surface finish
      Glossy
    • Material
      Polycarbonate (PC)
    • Treatment
      Untreated
    • Contains recycled material (% of total plastic weight)
      0
    Dimensions
    • Height
      30 mm
    • Width
      86 mm
    • Depth
      20 mm
    • Built-in depth flush-mounted boxes
      35 mm
    • Built-in depth
      20 mm
    Cable
    • Cable length
      0
    Connection
    • Connector/plug type
      NEMA
    • Cross-section flexible conductor without wire end sleeve
      0.08 - 4 mm²
    • Number of conduit inlets
      0
    Installation, mounting
    • Mounting on
      Flush mounting
    • Mounting-/Connection Position
      Back
    Connectivity
    • Type of connection
      Screw terminal
    • With claw mounting
      No
    • Mounting type
      Screw mounting
    • Connector/plug type USB
      NEMA
    Equipment
    • Connector/plug type socket outlet
      British Standard
    • Rotated central insert
      No
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    • Pre-equipped with
      None
    Capacity
    • Number of modules
      0
    Safety
    • With enhanced contact protection
      No
    • Impact resistance IK
      IK02
    • Ingress Protection (IP) class
      IP20
    Functions
    • With orientation lighting
      No
    • With function lighting
      No
    Identification
    • With imprint
      No
    • Related Systems
      shark

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    PEP - Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white (English)
    PDF
    48,73 MB
    REACH declaration WGCS216EA
    PDF
    RoHS report WGCS216EA
    PDF

    Downloads

    More documentation
