Output device for 4 shutters or blinds 230V~ TYA624C
EAN-Nr.
3250616059665
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Settings
-
Supported configuration modeETS
Connectivity
-
With bus system KNX radioNo
Installation, mounting
-
Mounting onDIN rail
Equipment
-
With switch for manual switchYes
Materials
-
ColourLight grey
Electric current
-
Rated current6 A
-
Max. switching current6 A
Voltage
-
Operating voltage over bus21 - 32 V
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section flexible conductor0.75 - 2.5 mm²
-
Cross-section rigid conductor0.75 - 2.5 mm²
Capacity
-
Number of modules4
Texts
-
FunctionWith safety functions e.g. for wind, rain, alarm, With positioning function for blind and lamella position, With sun shade function
-
Type of connectionWith quickconnect plug-in terminals
-
Operating modeOperating mode can be set for roller shutter/awning
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

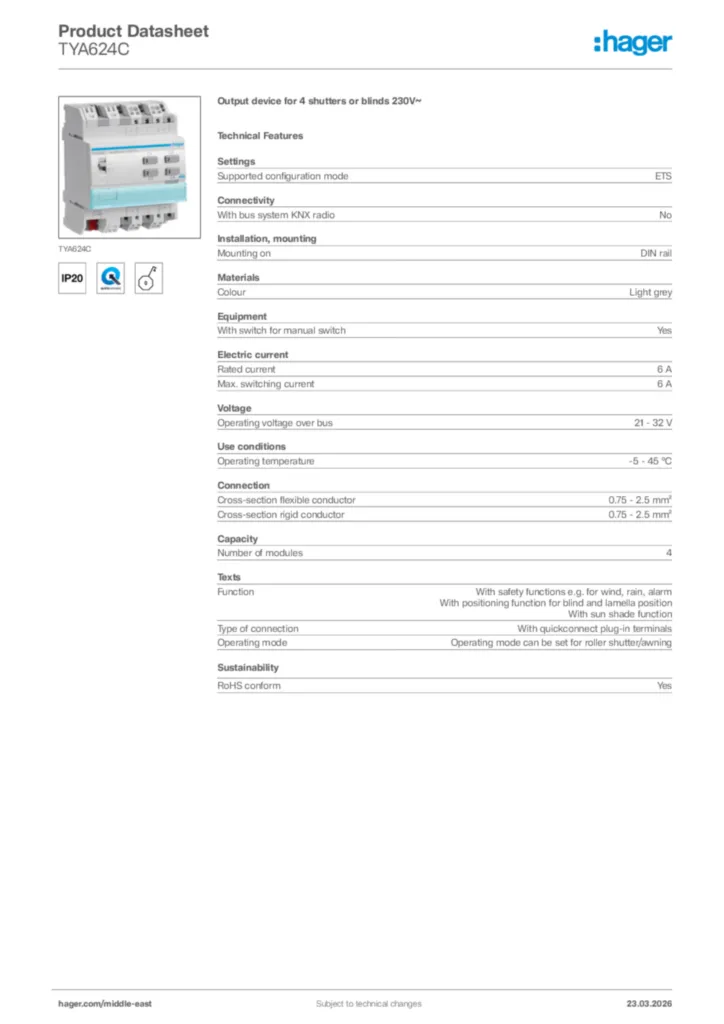

Product datasheet
Hager Product data sheet TYA624C
Output device for 4 shutters or blinds 230V~
PDF -
KNX product database
Logiciel d'application ETS du TYA624C_D
KNX product database International 2020-01-01
VD51004,61 kB
Logiciel d'application ETS du TYA624C_D
KNX product database International 2020-01-01
KNXPROD467,02 kB -
Application Guide
Application description ETS TYA624ABCD_TYA628AC_TYB621C_TYM632C
Application Guide en-GB, pl-PL, sv-SE 2014-01-08
PDF6,81 MB
Application description ETS TYA624ABCD_TYA628AC_TYB621C_TYM632C
Application Guide en-GB, pl-PL 2013-11-22
PDF6,23 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-12-13
PDF137,28 kB
More documentation
