Module 1 output for shutter/blind 10A IP55 KNX radio QL TRE221
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Settings
-
Supported configuration modeETS, easy
Connectivity
-
With bus system KNX radioYes
Installation, mounting
-
Mounting onSurface mounting
Equipment
-
With switch for manual switchNo
Materials
-
ColourWhite
Electric current
-
Rated current IN10 A
-
Max. switching current10 A
Voltage
-
Type voltage supplyAC
Use conditions
-
Operating temperature-10 - 55 °C
Frequency
-
Frequency50 - 50 Hz
Capacity
-
Number of modules0
Texts
-
FunctionEasy additional functions: +6 scenes, Repeat function can be activated to increase the radio range, Reset function (to factory setting)
-
Type of connectionWith screw-in lift terminals
Power
-
Maximum switching power2,300 W
-
Rated operational power under 230 V AC AC12,000 W
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

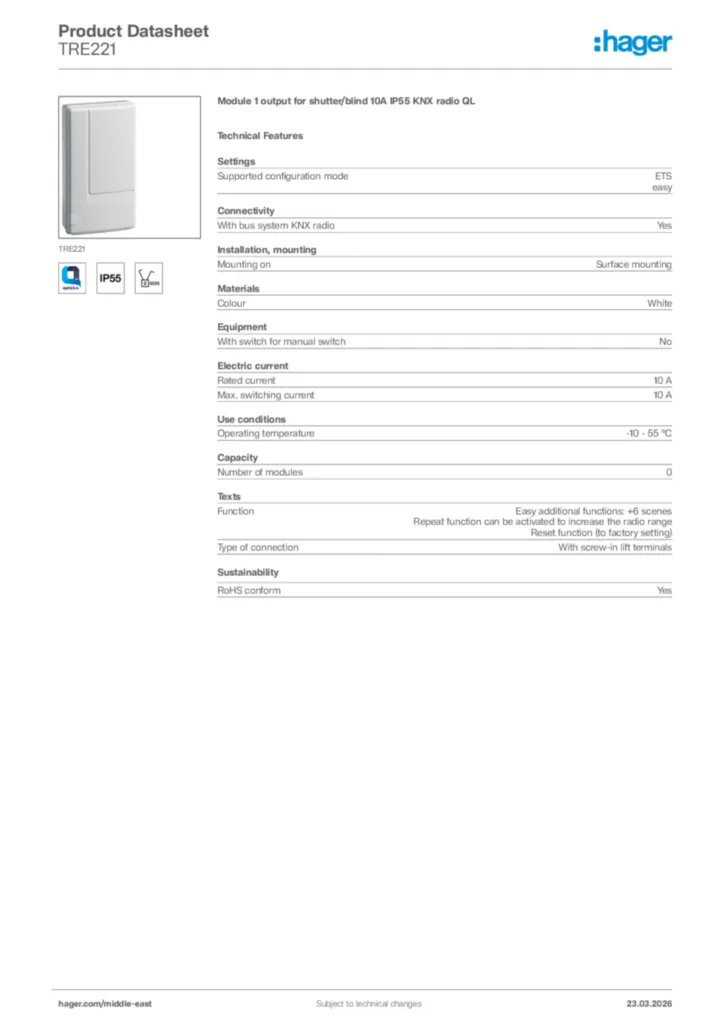

Hager Product data sheet TRE221
Module 1 output for shutter/blind 10A IP55 KNX radio QL
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pl-PL, pt-PT, sv-SE 2011-03-14
PDF1,50 MB -
Product attachment
Configuration guide quicklink (DE-FR-IT-NL, 2016-02)
Product attachment International 2020-01-01
PDF1,18 MB
Notice de configuration quicklink pour produits radio
Product attachment en-GB, es-ES, nn-NO, pt-PT, sv-SE 2020-01-01
PDF5,92 MB -
KNX product database
Logiciel d'application ETS du TRE221
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
VD5118,80 kB
Logiciel d'application ETS du TRE221
KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01
KNXPROD124,21 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-03-31
PDF122,34 kB
