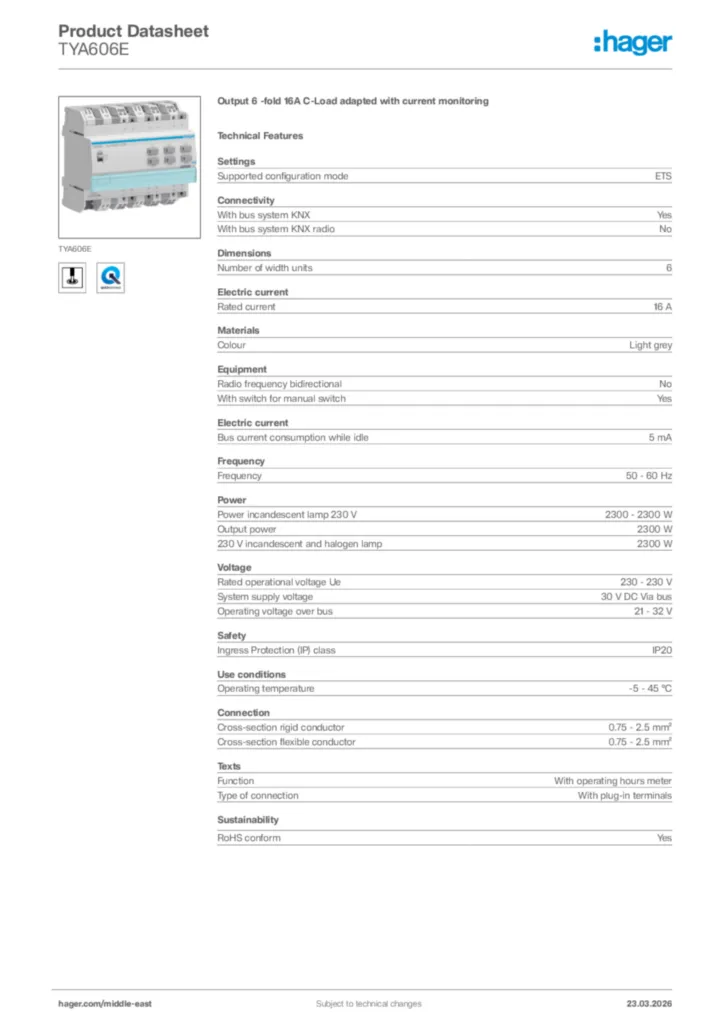

    Output 6 -fold 16A C-Load adapted with current monitoring TYA606E

    Technical characteristics

    Connectivity
    • With bus system KNX
      Yes
    • With bus system KNX radio
      No
    Settings
    • Supported configuration mode
      ETS
    Dimensions
    • Number of width units
      6
    Materials
    • Colour
      Light grey
    Equipment
    • Radio frequency bidirectional
      No
    • With switch for manual switch
      Yes
    Electric current
    • Rated current
      16 A
    • Bus current consumption while idle
      5 mA
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Power incandescent lamp 230 V
      2,300 - 2,300 W
    • Output power
      2,300 W
    • 230 V incandescent and halogen lamp
      2,300 W
    Voltage
    • Rated operational voltage Ue
      230 - 230 V
    • System supply voltage
      30 V DC Via bus
    • Operating voltage over bus
      21 - 32 V
    Safety
    • Ingress Protection (IP) class
      IP20
    Use conditions
    • Operating temperature
      -5 - 45 °C
    Connection
    • Cross-section rigid conductor
      0.75 - 2.5 mm²
    • Cross-section flexible conductor
      0.75 - 2.5 mm²
    Texts
    • Function
      With operating hours meter
    • Type of connection
      With plug-in terminals

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
