Domovea expert TJA470
EAN-Nr.
3250618502350
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Complete your system
Optional accessories
-
Signalling and operation panel for bus system 1 products available -
DC power supply 1 products available
Technical characteristics
Equipment
-
Web serverYes
-
Number of channels1
Voltage
-
Operating voltage24 - 24 V
-
Operating voltage over bus21 - 32 V
-
Type voltage supplyDC
Connectivity
-
Type of interface bus system/media gatewayMultiple interface
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Controls and indicators
-
With LED indicationYes
Dimensions
-
Number of width units6
Texts
-
EncodingManagement of 4 configurable user profiles
-
FunctionLocal and remote connection of the door station with IP end devices, such as smartphones, tablet computers and PCs
-
LabellingLarge labelling field
-
Connectors jacksWith 2 USB sockets type A
-
Type of connectionWith quickconnect plug-in terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

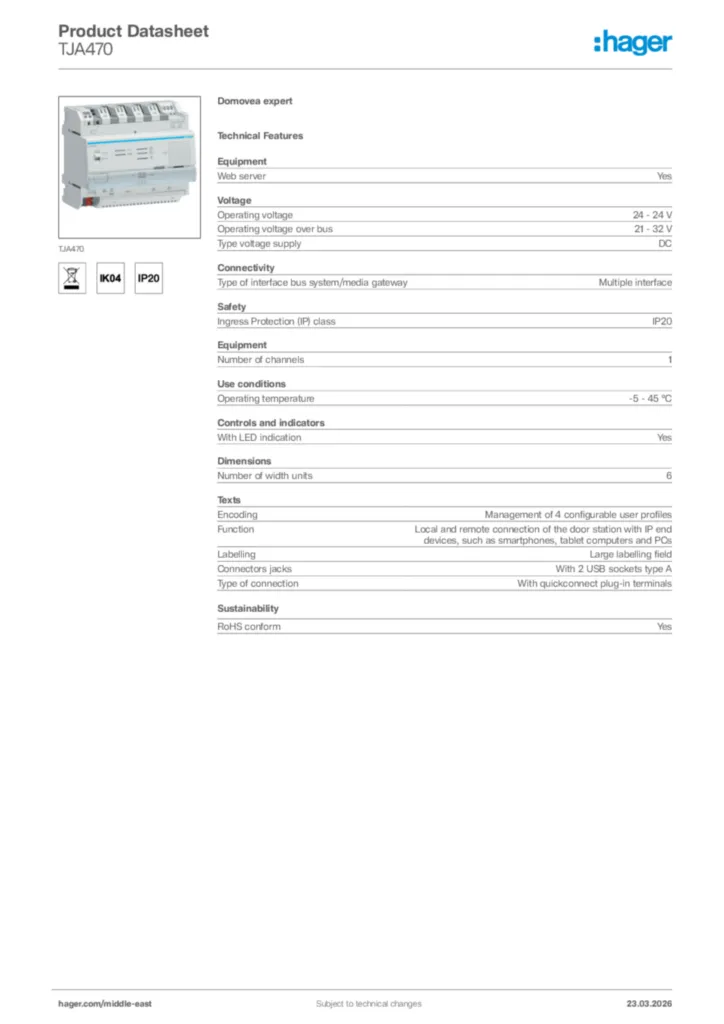

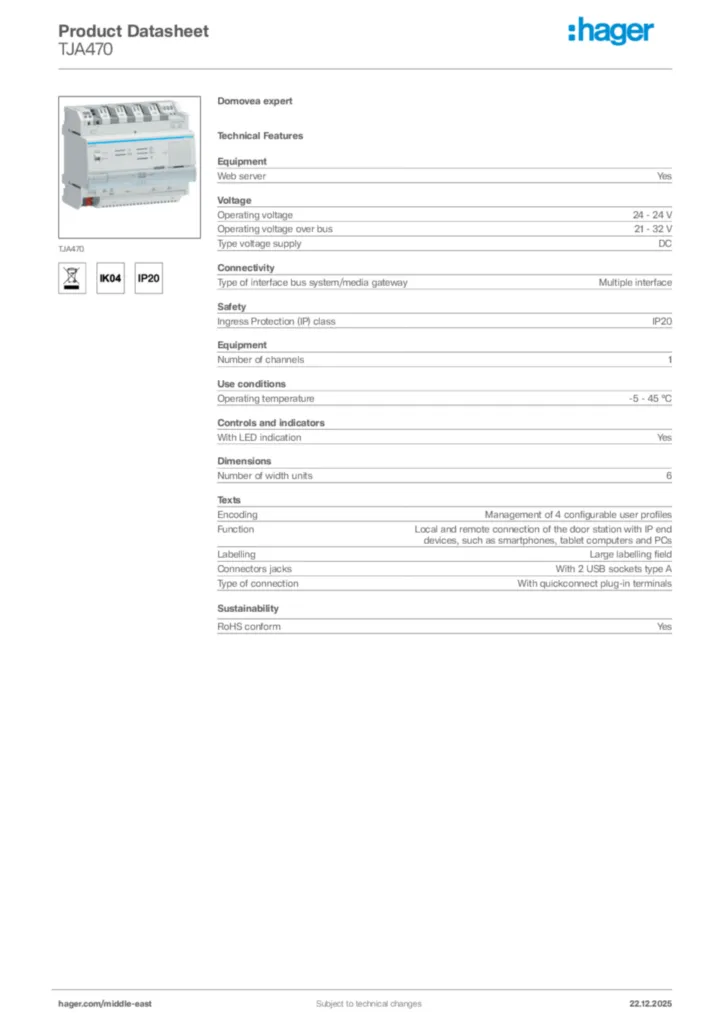

Hager Product data sheet TJA470
Domovea expert
PDF -
Installation manual
Leaflet domovea (EN)
Leaflet TJA470, TJA670 (English, 2023-06-29)
PDF900,23 kB -
Tool
Access Client Touch Panel V 1.5.7
Elcom Access app 1.5.7 for android
ZIP64,30 MB
Hager Pilot MacOS
Hager Pilot MacOS 2.2.1
DMG95,45 MB
Hager Pilot Windows
Hager Pilot Windows 2.2.1
EXE152,91 MB
Server Software (TJA470, TJA670)
Server Software 7.1.8
ZIP223,08 MB
domovea Client Android
domovea Client Android 3.14.4
APK150,27 MB
domovea Client MacOS
domovea Client MacOS 3.14.4
DMG178,85 MB
domovea Client Windows
domovea Client Windows 3.14.4
EXE278,94 MB -
KNX product database
ETS product database (Dummy application)
KNX product database International 2024-03-11
KNXPROD90,49 kB
ETS product database for TJA470
KNX product database en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2024-03-11
KNXPROD83,44 kB -
Handbook
Installation manual domovea (EN)
Installation manual domovea TJA470, TJA670 (English, 2023-11-16)
PDF1,75 MB -
Declaration of conformity
Declaration of conformity International 2022-11-02
PDF144,52 kB
More documentation
