Power supply 24 V DC 1A TGA200
EAN-Nr.
3250615979964
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 27 products available
Referenced by
-
75642065Touch sensor 2gang thermostat, display, intg bus coupl. unit, KNX-R.1, glass bl.
-
80440100KNX thermostat, colourdisplay, intg bus coupling unit, KNX
-
80660100KNX room cont., colourdisplay, intg bus coupling unit, KNX
-
75643155Touch sensor 3gang thermostat, display, intg bus coupl. unit, KNX-R.3, glass bl.
-
75642155Touch sensor 2gang thermostat, display, intg bus coupl. unit, KNX-R.3, glass bl.
-
75643150Touch sensor 3g thermostat, display, intg bus coupl. , KNX-R.3, glass p.white
-
75643165Touch sensor 3gang thermostat, display, intg bus coupl. unit, KNX-R.1, glass bl.
-
75642165Touch sensor 2gang thermostat, display, intg bus coupl. unit, KNX-R.1, glass bl.
-
75643160Touch sensor 3g thermostat, display, intg bus coupl. , KNX-R.1, glass p.white
-
75643055Touch sensor 3gang thermostat, display, intg bus coupl. unit, KNX-R.3, glass bl.
-
75642055Touch sensor 2gang thermostat, display, intg bus coupl. unit, KNX-R.3, glass bl.
-
75643050Touch sensor 3g thermostat, display, intg bus coupl. , KNX-R.3, glass p.white
-
75642050Touch sensor 2g thermostat, display, intg bus coupl. , KNX-R.3, glass p.white
-
75643065Touch sensor 3gang thermostat, display, intg bus coupl. unit, KNX-R.1, glass bl.
-
75642135KNX glass sensor 2g thermostat, display, intg bus coupl. , KNX-TS sensor, bl.
-
75643060Touch sensor 3g thermostat, display, intg bus coupl. , KNX-R.1, glass p.white
-
75642060Touch sensor 2g thermostat, display, intg bus coupl. , KNX-R.1, glass p.white
-
75642030KNX glass sensor 2g thermostat, display, intg bus coupl. , KNX-TS sensor, p.wh.
-
75642034KNX glass sensor 2g thermostat, display, intg bus coupl., KNX-TS sensor, al.
-
75642035KNX glass sensor 2g thermostat, display, intg bus coupl. , KNX-TS sensor, bl.
Technical characteristics
Electric current
-
Output current1,000 mA
-
Intensity output 11 A
Functions
-
Output voltage adjustedYes
Power
-
Current consumption150 mA
-
Power consumption standby0.20 W
Frequency
-
Frequency50 - 60 Hz
Capacity
-
Number of modules4
Use conditions
-
Operating temperature0 - 45 °C
Voltage
-
Output voltage24 - 24 V
Connection
-
Connector/plug typequickconnect
Dimensions
-
Height90 mm
-
Width72 mm
-
Depth64 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

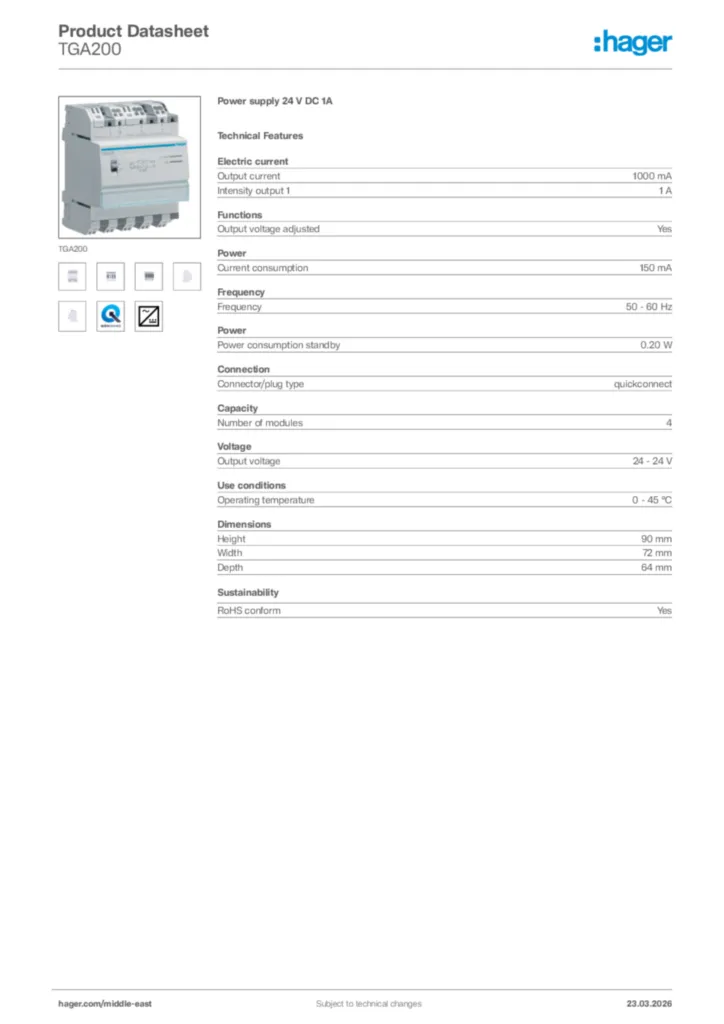

Hager Product data sheet TGA200
Power supply 24 V DC 1A
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2020-12-14
PDF1,68 MB -
Declaration of conformity
EU Declartion of Conformity
Declaration of conformity en-GB, fr-FR 2023-10-26
PDF314,94 kB
More documentation
