Presence detector 360° monobloc KNX with switch ON/OFF , white TCC520E

EAN-Nr.
3250617579407
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Presence detector 360° monobloc KNX with switch ON/OFF , white

TCC520E

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Accessories/spare parts for movement sensor 2 products available

Complete your system

  • Accessories/spare parts for movement sensor
  • EE807

    Remote control for settings for presence detectors 360° monobloc
    0.00 €  / *
  • EE808

    Remote control for customer for presence detectors 360° monobloc
    0.00 €  / *

Technical characteristics

Dimensions
  • Installation height
    4 - 4 m
  • Recommended installation height
    2.5 - 3.5 m
Settings
  • Supported configuration mode
    ETS
  • Minimal duty cycle
    60 s
Functions
  • Maximal duty cycle
    60 min
Connectivity
  • With bus system KNX radio
    No
Voltage
  • Operating voltage over bus
    21 - 32 V
Scope of delivery
  • Bus connection included
    Yes
Electric current
  • Bus current consumption data transfer
    12 mA
Detection
  • Detection angle
    360 - 360
  • Detection angle horizontal
    360 - 360
Use conditions
  • Operating temperature
    -10 - 45 °C
Materials
  • Material
    Acrylonitrile-Butadiene-Styrene (ABS), Polycarbonate (PC)
Texts
  • Operating mode
    Operating modes: automatic, semiautomatic, test
  • Function
    Linking several detectors in order to expand the detection area
  • Installation mode
    With spring clips for ceiling installation

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Motion detector 90-180° 3-wire/2300W IP55 Signal White
PDF
4,62 MB
Hager REACH declaration TCC520E
PDF
Hager RoHS report TCC520E
PDF

Downloads

  • Image TCC520E | Hager

    Product Image TCC520E

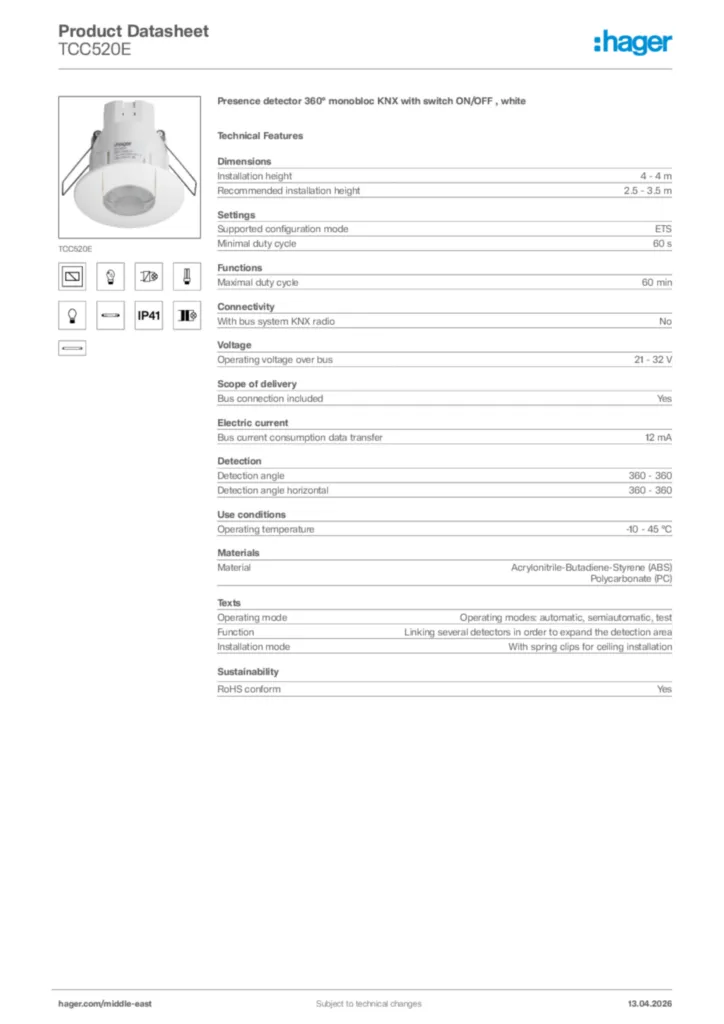

  • Product datasheet

    Image Hager Product data sheet TCC520E | Hager

    Hager Product data sheet TCC520E

    Presence detector 360° monobloc KNX with switch ON/OFF , white

    PDF

  • Installation manual

    Image Installation manual en-GB, es-ES, it-IT, pt-PT 2019-08-23 | Hager

    Installation manual en-GB, es-ES, it-IT, pt-PT 2019-08-23

    PDF
    329,60 kB
    Image Installation manual en-GB, fr-FR, de-DE, nl-NL 2019-08-23 | Hager

    Installation manual en-GB, fr-FR, de-DE, nl-NL 2019-08-23

    PDF
    319,52 kB
    Image Installation manual en-GB, fr-FR 2019-10-24 | Hager

    Installation manual en-GB, fr-FR 2019-10-24

    PDF
    276,21 kB

  • KNX product database

    Image Logiciel d'application ETS du TCC520E | Hager

    Logiciel d'application ETS du TCC520E

    KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

    KNXPROD
    128,30 kB
    Image Logiciel d'application ETS du TCC520E | Hager

    Logiciel d'application ETS du TCC520E

    KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

    VD5
    145,53 kB

  • Declaration of conformity

    Image Declaration of conformity International 2022-11-08 | Hager

    Declaration of conformity International 2022-11-08

    PDF
    143,55 kB
