    • Home
    • Catalogue
    • Building management system KNX
    • Push buttons & Sensors
    • Motion and presence detectors
    • TCC510S
    EAN-Nr.
    3250617579254
    Packaging
    1 piece
    • Motion and presence detectors

    Presence detector 360° monobloc KNX, white TCC510S

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Presence detector 360° monobloc KNX, white

    TCC510S

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Accessories/spare parts for movement sensor 2 products available

    Complete your system

    • Accessories/spare parts for movement sensor
    • EE807

      Remote control for settings for presence detectors 360° monobloc
      0.00 €  / *
    • EE808

      Remote control for customer for presence detectors 360° monobloc
      0.00 €  / *

    Technical characteristics

    Dimensions
    • Installation height
      4 - 4 m
    • Recommended installation height
      2.5 - 3.5 m
    Settings
    • Supported configuration mode
      ETS, easy
    • Minimal duty cycle
      5 s
    Functions
    • Maximal duty cycle
      480 min
    Connectivity
    • With bus system KNX radio
      No
    Voltage
    • Operating voltage over bus
      21 - 32 V
    Scope of delivery
    • Bus connection included
      Yes
    Electric current
    • Bus current consumption data transfer
      10 mA
    Detection
    • Detection angle
      360 - 360
    • Detection angle horizontal
      360 - 360
    Use conditions
    • Operating temperature
      -10 - 45 °C
    Materials
    • Material
      Acrylonitrile-Butadiene-Styrene (ABS), Polycarbonate (PC)
    Texts
    • Function
      Linking several detectors in order to expand the detection area
    • Installation mode
      With spring clips for ceiling installation

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Motion detector 90-180° 3-wire/2300W IP55 Signal White
    PDF
    4,62 MB
    Hager REACH declaration TCC510S
    PDF
    Hager RoHS report TCC510S
    PDF

    Downloads

    • Image TCC510S | Hager

      Product Image TCC510S

    • Product datasheet

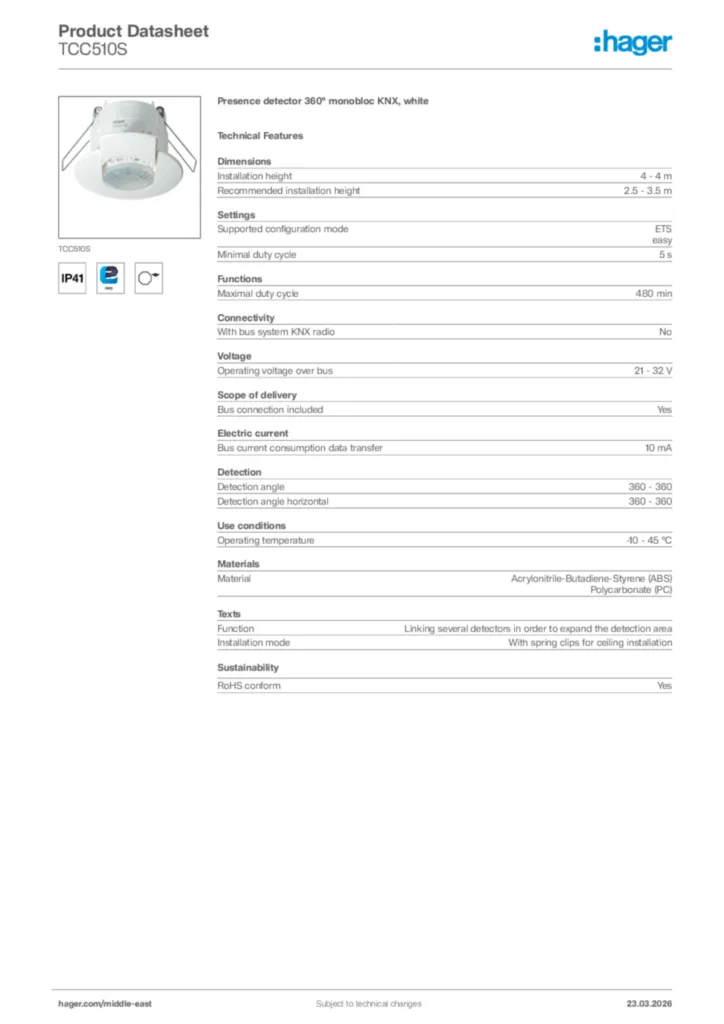

      Image Hager Product data sheet TCC510S | Hager

      Hager Product data sheet TCC510S

      Presence detector 360° monobloc KNX, white

      PDF

    • Installation manual

      Image Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL 2011-04-29 | Hager

      Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL 2011-04-29

      PDF
      1,93 MB
      Image Installation manual en-GB, fr-FR, pl-PL 2017-06-12 | Hager

      Installation manual en-GB, fr-FR, pl-PL 2017-06-12

      PDF
      671,65 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-11-17

      PDF
      125,66 kB
    More documentation

    Discover our other products of this range

      5
    • 1
      TXC515 - Motion detector KNX corridor 360° surface mounted detection 5x20m
      TXC515
      Motion detector KNX corridor 360° surface mounted detection 5x20m
    • 2
      80262170 - K.x/Q.x KNX (TP+EASY) Movement detector module 1,10m
      80262170
      K.x/Q.x KNX (TP+EASY) Movement detector module 1, 10m
    • 3
      80960483 - S.x Cover for KNX (TP+EASY) Movement detector module, aluminium
      80960483
      S.x Cover for KNX (TP+EASY) Movement detector module, aluminium
    • 4
      80960479 - K.x Cover for KNX (TP+EASY) Movement detector module, polar white
      80960479
      K.x Cover for KNX (TP+EASY) Movement detector module, polar white
    • 5
      85345182 - KNX radio motion det. comf 1.1 m quicklink, S.1, white glossy
      85345182
      KNX radio motion det. comf 1.1 m quicklink, S.1, white glossy
