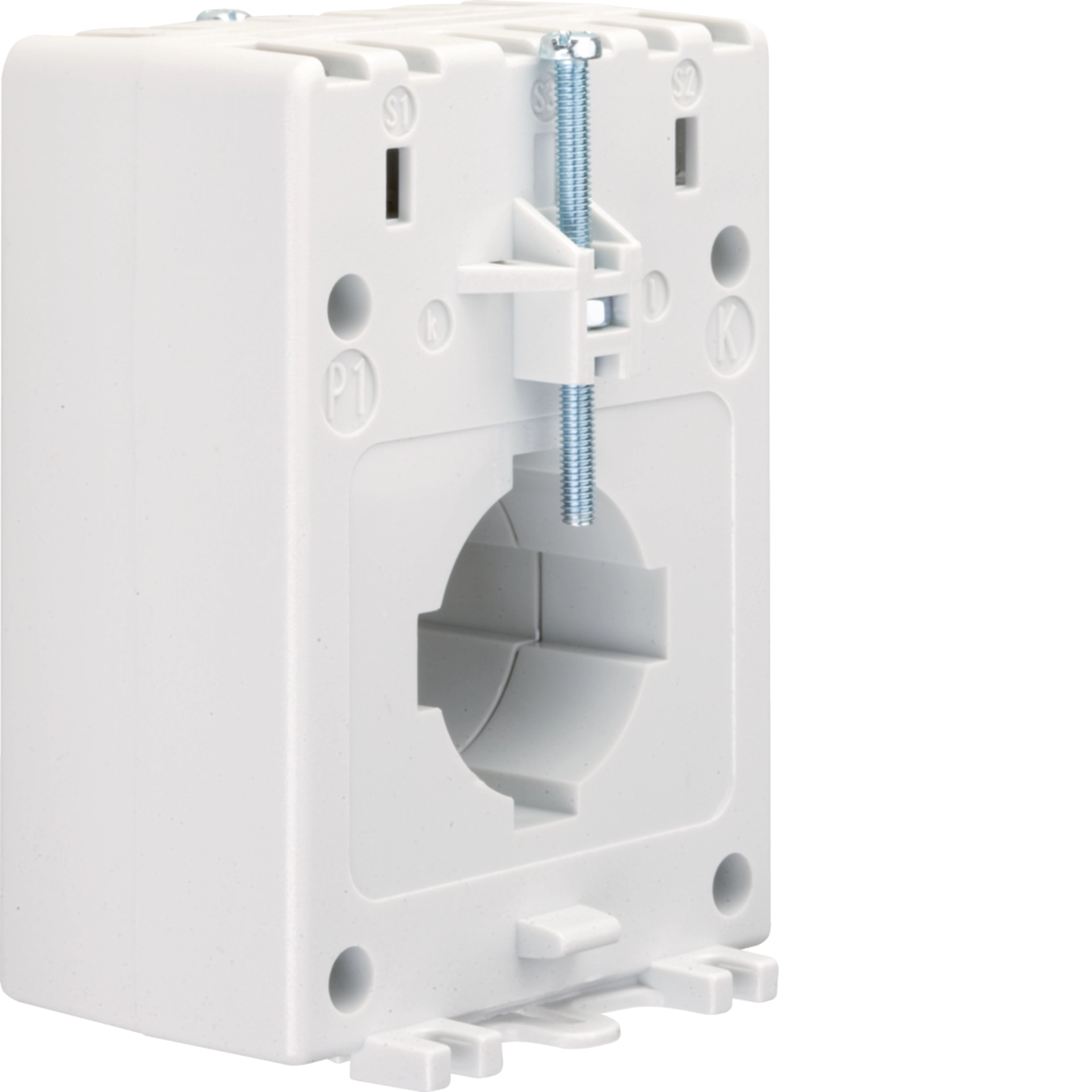

Current transformer 600 / 5A SR600
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Specific identificaton attributes for Protection
-
Filter Type productSingle-phase current converter
Functions
-
Accuracy class1
Power
-
Power15 VA
-
Total power loss under IN0
Dimensions
-
Diameter of opening10 mm
-
Height70 mm
-
Width77 mm
-
Depth75 mm
-
Height of opening40 mm
-
Width of opening35 mm
Connectivity
-
Type of connectionScrew terminal
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated power-frequency withstand voltage (r.m.s.)3,000 V
-
Max. operating voltage720 V
Use conditions
-
Operating temperature-25 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor1 - 4 mm²
-
Cross-section rigid conductor1 - 6 mm²
Safety
-
Ingress Protection (IP) classIP20
Electric current
-
Rated primary current (Ipr)720 A
-
Rated secondary current (Isr)5 A
-
Rated current720 A
-
Rated continuous thermal current1,2*Ipr
-
Rated short-time thermal current (Ith/1s)60*Ipr
-
Rated dynamic current2.5*Ith
-
Over voltage limiting factorFS 10
Installation, mounting
-
Mounting onBusbar
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

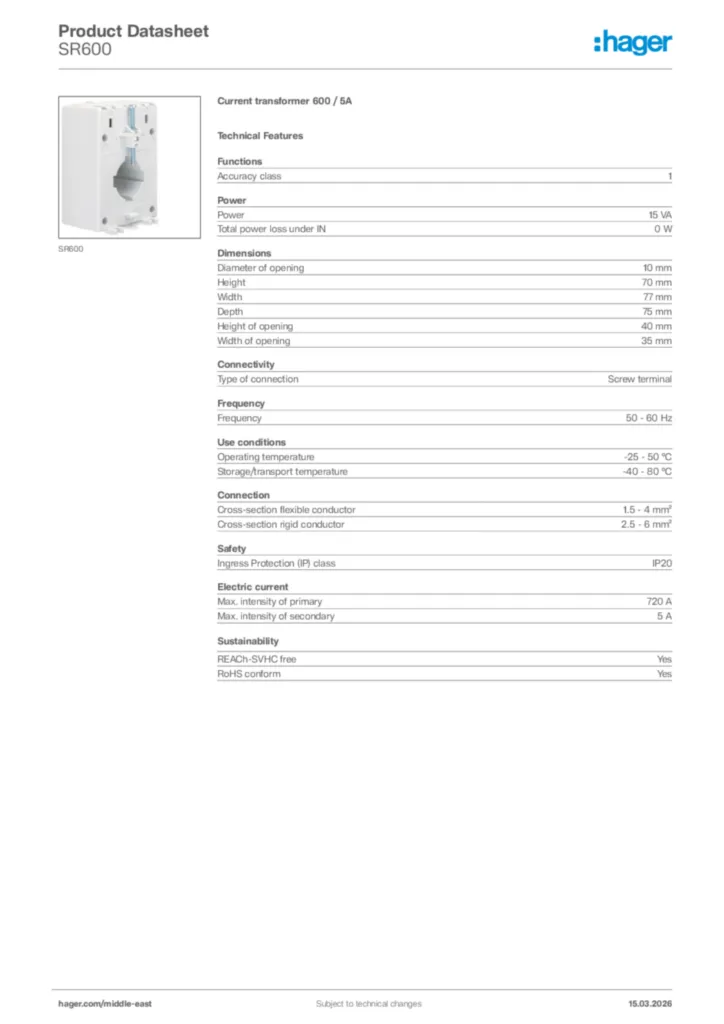

Product datasheet
