Indoor station Audio handset wall mounted 2wires white polar shiny ELCOM.FON REK241X
EAN-Nr.
3599430028977
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Decoration element for domestic switching devices 22 products available
Compatible products
-
Referenced by 22 products available
Complete your system
-
WD1163Stainless Steel Round Silver Blasted
-
WD1211Plastic Angular White Po. Matt
-
WD1111Plastic Round White Po. Matt
-
WD1112
Plastic Round White Cr. Shiny
-
WD1113Plastic Round Silver Matt
-
WD1117Plastic Round Grey (RAL 7024) Matt
-
WD1121Plastic Round White Po. Shiny
-
WD1125Plastic Round Black Shiny
-
WD1131Glass Round White Po.
-
WD1135
Glass Round Black
-
WD1153Alumimium Round Silver Blasted
-
WD1263
Stainless Steel Angular Silver Blasted
-
WD1213Plastic Angular Silver Matt
-
WD1217Plastic Angular Grey (RAL 7024) Matt
-
WD1219
FRAME Audio Ang White Cr. Shiny
-
WD1221Plastic Angular White Po. Shiny
-
WD1225
Plastic Angular Black Shiny
-
WD1231Glass Angular Glass White Po.
-
WD1235Glass Angular Black
-
WD1243Stainless Steel Angular Silver Brushed
Referenced by
-
WD1163
Stainless Steel Round Silver Blasted
-
WD1211
Plastic Angular White Po. Matt
-
WD1111
Plastic Round White Po. Matt
-
WD1112
Plastic Round White Cr. Shiny
-
WD1113
Plastic Round Silver Matt
-
WD1117
Plastic Round Grey (RAL 7024) Matt
-
WD1121
Plastic Round White Po. Shiny
-
WD1125
Plastic Round Black Shiny
-
WD1131
Glass Round White Po.
-
WD1135
Glass Round Black
-
WD1153
Alumimium Round Silver Blasted
-
WD1263
Stainless Steel Angular Silver Blasted
-
WD1213
Plastic Angular Silver Matt
-
WD1217
Plastic Angular Grey (RAL 7024) Matt
-
WD1219
FRAME Audio Ang White Cr. Shiny
-
WD1221
Plastic Angular White Po. Shiny
-
WD1225
Plastic Angular Black Shiny
-
WD1231
Glass Angular Glass White Po.
-
WD1235
Glass Angular Black
-
WD1243
Stainless Steel Angular Silver Brushed
Technical characteristics
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishGlossy
-
MaterialPlastic, Thermoplastic
Dimensions
-
Height74.30 mm
-
Width93 mm
-
Depth16 mm
Use conditions
-
Operating temperature5 - 45 °C
-
Storage/transport temperature-20 - 60 °C
Voltage
-
Operating voltage over bus24 - 24 V
Electric current
-
Current consumption during operation180 mA
Screen
-
With touch screenNo
Texts
-
Installation modeScrew fastening via supporting plate, Flat surface-mounted installation or onto wall box, For vertical mounting
-
JunctionFor floor call push-button, For optional additional power supply, Connection terminal block with screw terminals
Functions
-
Door communication typeAudio
-
Volume controlYes
Connection
-
Conductor cross-section0 - 0 mm²
Compatibility
-
Installation technique for door communication2-wire
Installation, mounting
-
Mounting onSurface mounting
Accessories
-
Additional device connectableNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

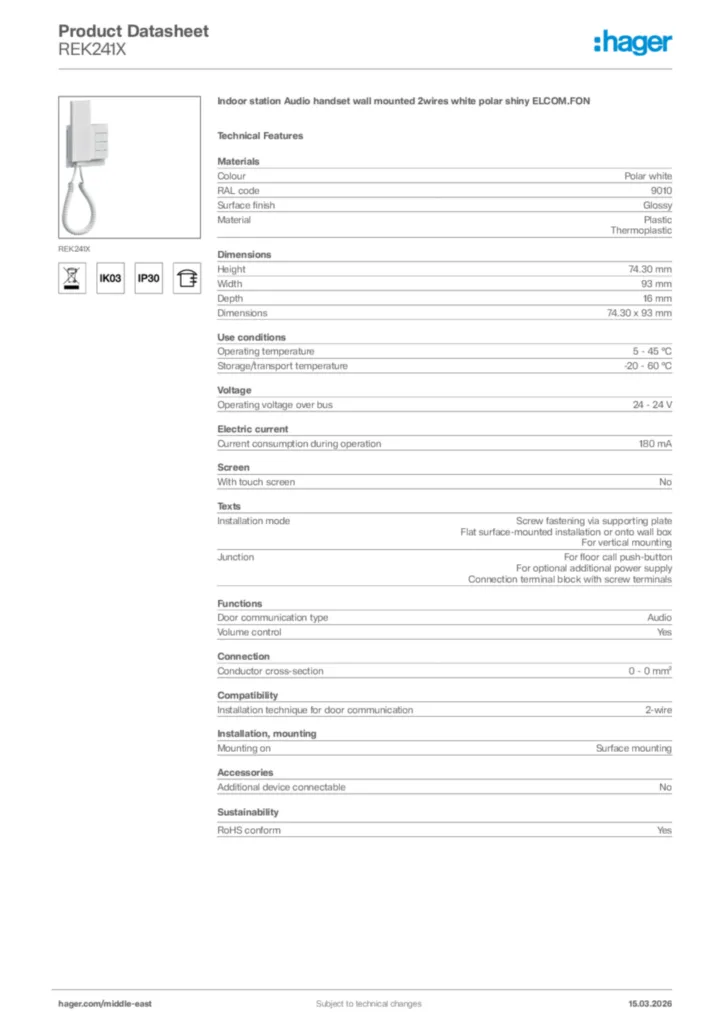

Hager Product data sheet REK241X
Indoor station Audio handset wall mounted 2wires white polar shiny ELCOM.FON
PDF -
Instruction manual
Instruction manual en-GB, de-DE 2017-06-07
PDF4,84 MB
Instruction manual en-GB 2018-03-06
PDF396,80 kB -
Operating manual
Operating manual en-GB, fr-FR, de-DE, it-IT, nl-NL 2017-11-06
PDF3,84 MB
