    Fuse carrier 1P 32A 690V L38 1M LSN501

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Fuse carrier 1P 32A 690V L38 1M

    LSN501

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Cylindrical fuse 11 products available
    • Modular phase busbar 1 products available

    Complete your system

    • Cylindrical fuse
    • Modular phase busbar
    • LF332G

      Cylindrical fuse-links for industrial applications 10x38mm gG 32A 400V AC 120kA

      €0.00  / *
    • LF325G

      Cylindrical fuse-links for industrial applications 10x38mm gG 25A 500V AC 120kA

      €0.00  / *
    • LF320G

      Cylindrical fuse-links for industrial applications 10x38mm gG 20A 500V AC 120kA

      €0.00  / *
    • LF316G

      Cylindrical fuse-links for industrial applications 10x38mm gG 16A 500V AC 120kA

      €0.00  / *
    • LF312G

      Cylindrical fuse-links for industrial applications 10x38mm gG 12A 500V AC 120kA

      €0.00  / *
    • LF310G

      Cylindrical fuse-links for industrial applications 10x38mm gG 10A 500V AC 120kA

      €0.00  / *
    • LF308G

      Cylindrical fuse-links for industrial applications 10x38mm gG 8A 500V AC 120kA

      €0.00  / *
    • LF306G

      Cylindrical fuse-links for industrial applications 10x38mm gG 6A 500V AC 120kA

      €0.00  / *
    • LF304G

      Cylindrical fuse-links for industrial applications 10x38mm gG 4A 500V AC 120kA

      €0.00  / *
    • LF302G

      Cylindrical fuse-links for industrial applications 10x38mm gG 2A 500V AC 120kA

      €0.00  / *
    • LF301G

      Cylindrical fuse-links for industrial applications 10x38mm gG 1A 500V AC 120kA

      €0.00  / *
    • KB163P

      Insulated busbar 1P 63A prong 10mm² brown 13M

      €0.00  / *

    Technical properties

    Dimensions
    • Height
      76.50 mm
    • Width
      17.50 mm
    • Depth
      76.90 mm
    Architecture
    • Number of poles
      1
    • Type of pole
      1P
    Electric current
    • Rated current IN
      32 A
    • Rated current of fuse cartridge
      0.2 A, 1 A, 2 A, 4 A, 6 A, 8 A, 10 A, 12 A, 16 A, 20 A, 25 A, 32 A
    Capacity
    • Number of modules
      1
    Internal use only
    • Number of half modules of 17,5 mm
      2
    Use conditions
    • Operating temperature
      -40 - 70 °C
    Installation, mounting
    • Nominal tightening torque
      2.20 - 2.20 Nm
    • Mounting on
      DIN rail
    Power
    • Power dissipation at IN
      3.40 W
    Voltage
    • Rated insulation voltage Ui
      1,000 V
    • Rated impulse withstand voltage Uimp
      6,000 V
    • Type voltage supply
      AC/DC
    • Overvoltage category according to IEC 60947-1
      3
    Safety
    • Ingress Protection (IP) class
      IP2X
    Connection
    • Cross-section of top and bottom terminal with screws, for flexible conductors
      1 - 16 mm²
    • Cross-section of top and bottom terminal with screws, for rigid conductors
      1 - 16 mm²
    Fuse
    • Fuse size
      10 x 38
    Cover, door
    • Interlockable
      Yes

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration LSN501
    PDF
    RoHS report LSN501
    PDF

    Downloads

    • Image LSN501  | Hager

      Product Image LSN501

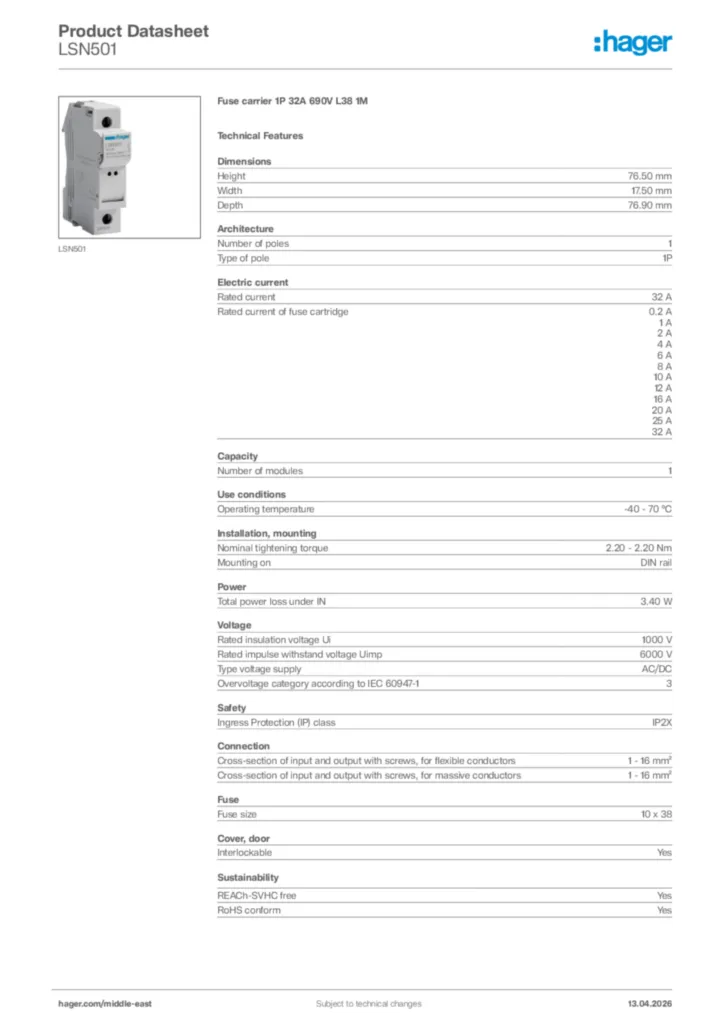

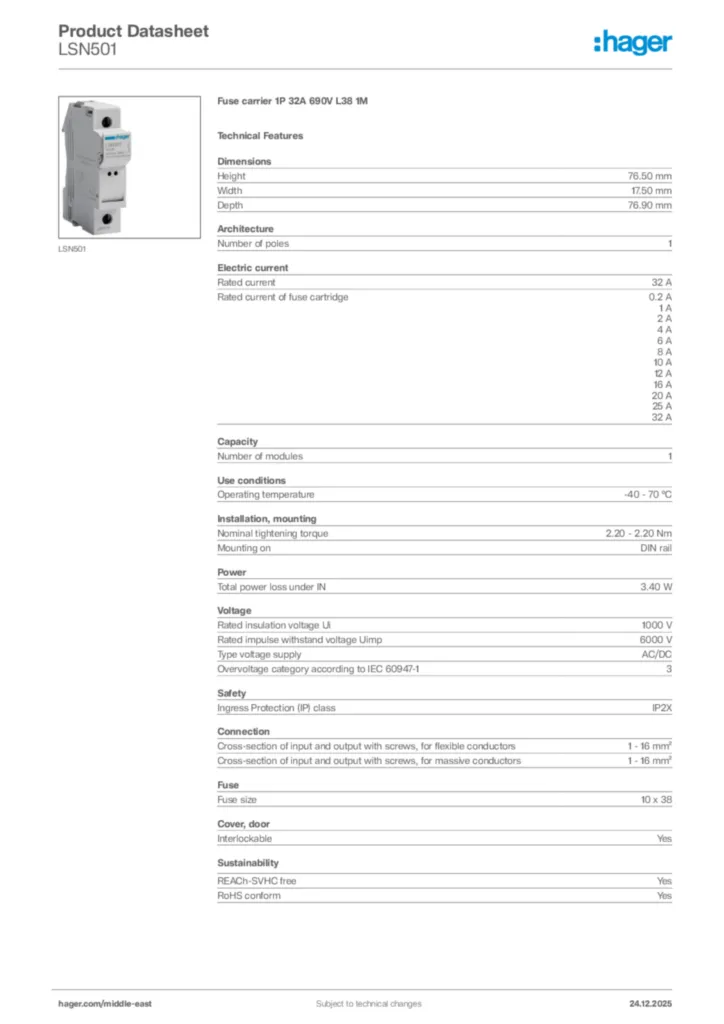

    • Product datasheet

      Image Hager Product data sheet LSN501  | Hager

      Hager Product data sheet LSN501

      Fuse carrier 1P 32A 690V L38 1M

      PDF
    • Declaration of conformity

      Image Declaration of conformity en-US 2026-07-14  | Hager

      Declaration of conformity en-US 2026-07-14

      PDF
      258,64 kB
    More documentation

    Discover more of this product range

      5
    • 1
      LR703 - Fuse carrier 3P 125A 690V L58 6M
      LR703
      Fuse carrier 3P 125A 690V L58 6M
    • 2
      LR712 - Fuse carrier 1P+N 125A 690V L58 4M
      LR712
      Fuse carrier 1P+N 125A 690V L58 4M
    • 3
      LR704 - Fuse carrier 3P+N 125A 690V L58 8M
      LR704
      Fuse carrier 3P+N 125A 690V L58 8M
    • 4
      LR601 - Fuse carrier 1P 50A 690V L51 1.5M
      LR601
      Fuse carrier 1P 50A 690V L51 1.5M
    • 5
      LR603 - Fuse carrier 3P 50A 690V L51 4.5M
      LR603
      Fuse carrier 3P 50A 690V L51 4.5M
