    • Home
    • Catalogue
    • Main switchgear
    • Circuit protection
    • Fuse carriers and fuse links
    • LF520M
    EAN-Nr.
    3250614062261
    Packaging
    10 Pieces
    • Fuse carriers and fuse links

    Cylindrical fuse-links for industrial applications 22x58mm aM 20A 690V AC 120kA LF520M

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Cylindrical fuse-links for industrial applications 22x58mm aM 20A 690V AC 120kA

    LF520M

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Fuse
    • Fuse characteristics
      aM
    • Fuse size
      22 x 58
    Electric current
    • Rated current
      20 A
    Power
    • Total power loss under IN
      1.29 W
    Main electrical attributes
    • Rated short-circuit breaking capacity Icn AC according to IEC 60898-1
      80 kA
    Voltage
    • Type voltage supply
      AC
    • Nominal voltage
      690 - 690 V
    Architecture
    • Curve
      C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    REACH declaration LF520M
    PDF
    Hager RoHS report LF520M
    PDF

    Downloads

    • Image LF520M | Hager

      Product Image LF520M

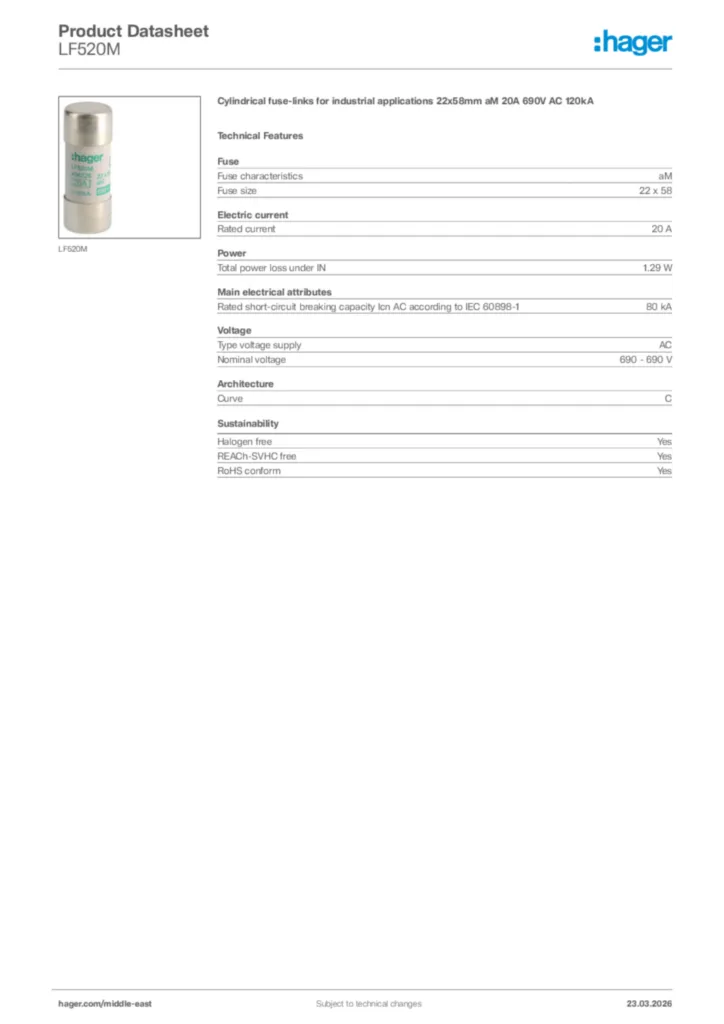

    • Product datasheet

      Image Hager Product data sheet LF520M | Hager

      Hager Product data sheet LF520M

      Cylindrical fuse-links for industrial applications 22x58mm aM 20A 690V AC 120kA

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-US 2026-07-14 | Hager

      Declaration of conformity en-US 2026-07-14

      PDF
      374,86 kB
