Fuse carrier 1P+N 32A 400V L38 1M L50600
EAN-Nr.
3250610100813
Packaging
12 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Dimensions
-
Height77 mm
-
Width17.50 mm
-
Depth75 mm
Architecture
-
Number of poles2
Electric current
-
Rated current32 A
-
Rated current of fuse cartridge2 A, 4 A, 6 A, 8 A, 10 A, 12 A, 16 A, 20 A, 25 A, 32 A
Capacity
-
Number of modules1
Internal use only
-
Number of half modules of 17,5 mm2
Use conditions
-
Operating temperature-5 - 40 °C
Installation, mounting
-
Nominal tightening torque1.80 - 1.80 Nm
-
Mounting onDIN rail
Power
-
Total power loss under IN1.50 W
Voltage
-
Type voltage supplyAC
Safety
-
Ingress Protection (IP) classIP20
Connection
-
Cross-section of input and output with screws, for flexible conductors10 - 10 mm²
-
Cross-section of input and output with screws, for massive conductors16 - 16 mm²
Fuse
-
Fuse size10 x 38
Cover, door
-
InterlockableNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

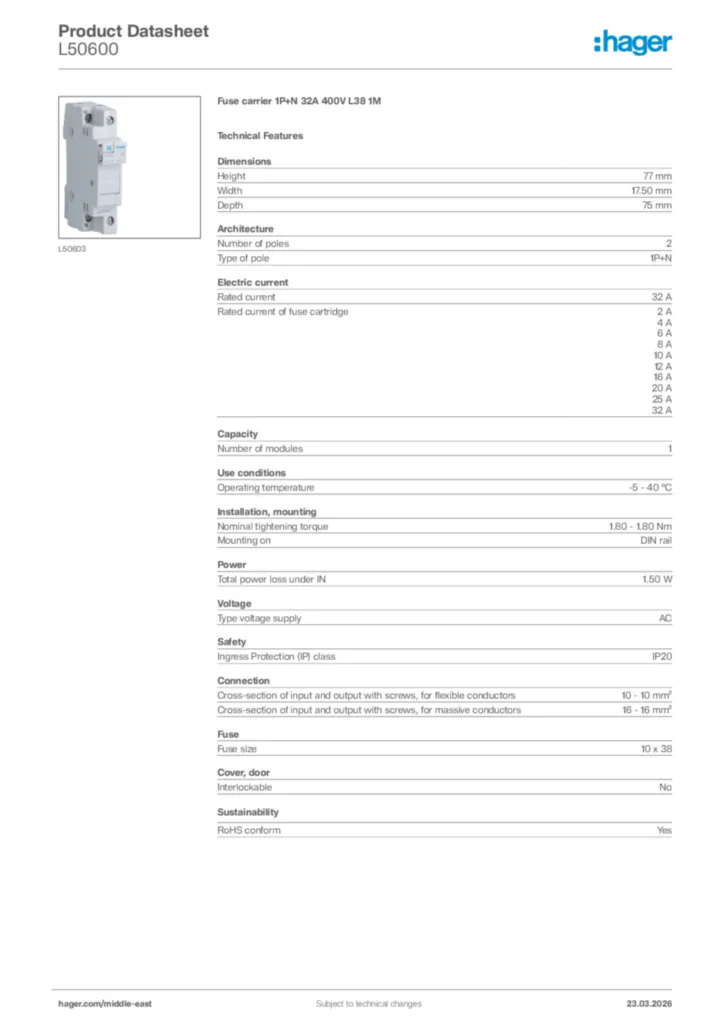

Hager Product data sheet L50600
