    • JK2B24F5HHB200Z
    EAN-Nr.
    3250611113256
    Packaging
    1 piece
    • Invicta TPN boards

    250A TP&N 24WAY Flush enclosure w/HHB200 JK2B24F5HHB200Z

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    250A TP&N 24WAY Flush enclosure w/HHB200

    JK2B24F5HHB200Z

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Connection
    • Number of accessible phases
      72
    Installation, mounting
    • Mounting on
      Surface mounting
    Electric current
    • Rated current IN
      200 A
    Equipment
    • With lock
      Yes
    • Has mounting plate
      No
    Dimensions
    • Height
      1,233 mm
    • Width
      430 mm
    • Depth
      5 mm
    Cover, door
    • Door/cover is transparent
      No
    Materials
    • Material
      Steel
    • RAL code
      9002
    • Colour
      Grey white
    Safety
    • Protection class
      Isolation class I
    • Impact resistance IK
      IK05
    • Ingress Protection (IP) class
      IP41
    • Locking type
      Without lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    REACh-SVHC free Yes

    Certifications and documents

    PEP - 125A 4 Way TPN Board c/w SD & SPD (English)
    PDF
    17,17 MB
    REACH declaration JK2B24F5HHB200Z
    PDF
    RoHS report JK2B24F5HHB200Z
    PDF

    Downloads

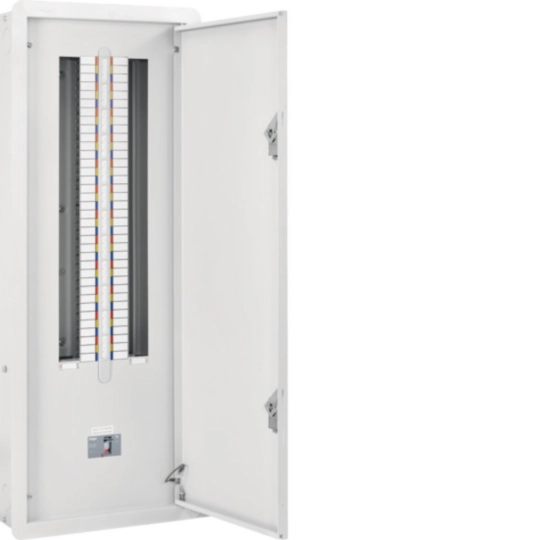

    • Image JK2B24F5HHB200Z | Hager

      Product Image JK2B24F5HHB200Z

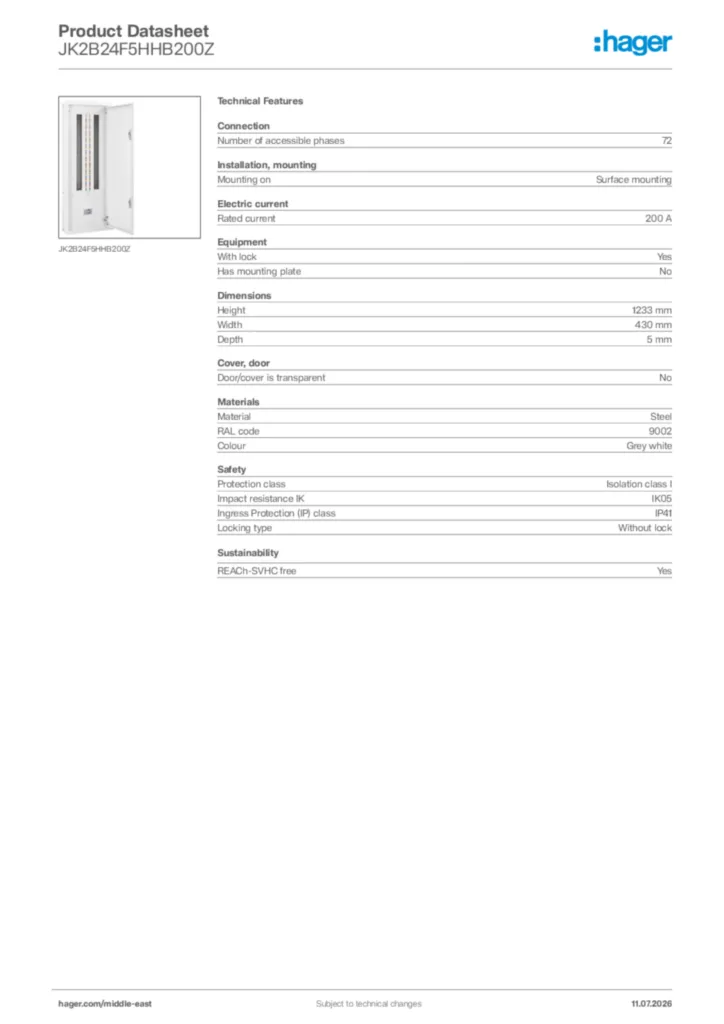

    • Product datasheet

      Image Hager Product data sheet JK2B24F5HHB200Z | Hager

      Hager Product data sheet JK2B24F5HHB200Z

      Product data sheet en-GB 2026-07-11

      PDF
    More documentation

    Spare part
