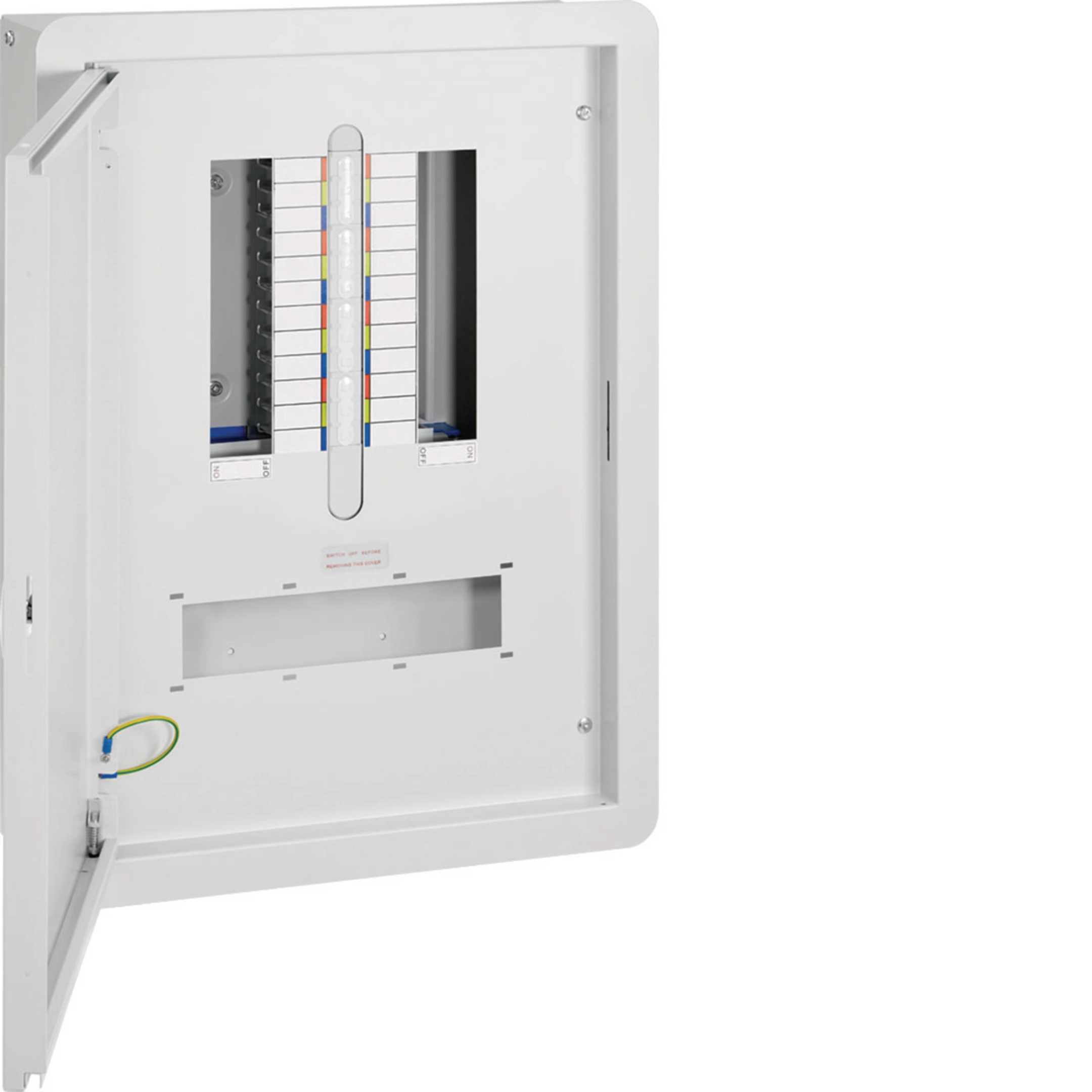

250A TP&N BOARD 8 WAY Flush enclosure JK2B08F2
EAN-Nr.
3250611112334
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
TPN/SPN boards 3 products available
Technical characteristics
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Breaking and opening capacity Idm0
Equipment
-
Has mounting plateNo
-
Equipped with switchNo switch
-
Number of switches0
-
Type of busbar chassisFixed load chassis
Capacity
-
Number of modules8
Dimensions
-
Height785 mm
-
Width470 mm
-
Depth5 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code9002
-
ColourGrey white
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP41
-
Locking typeSpecial tool, Without lock
Architecture
-
Number of poles24
