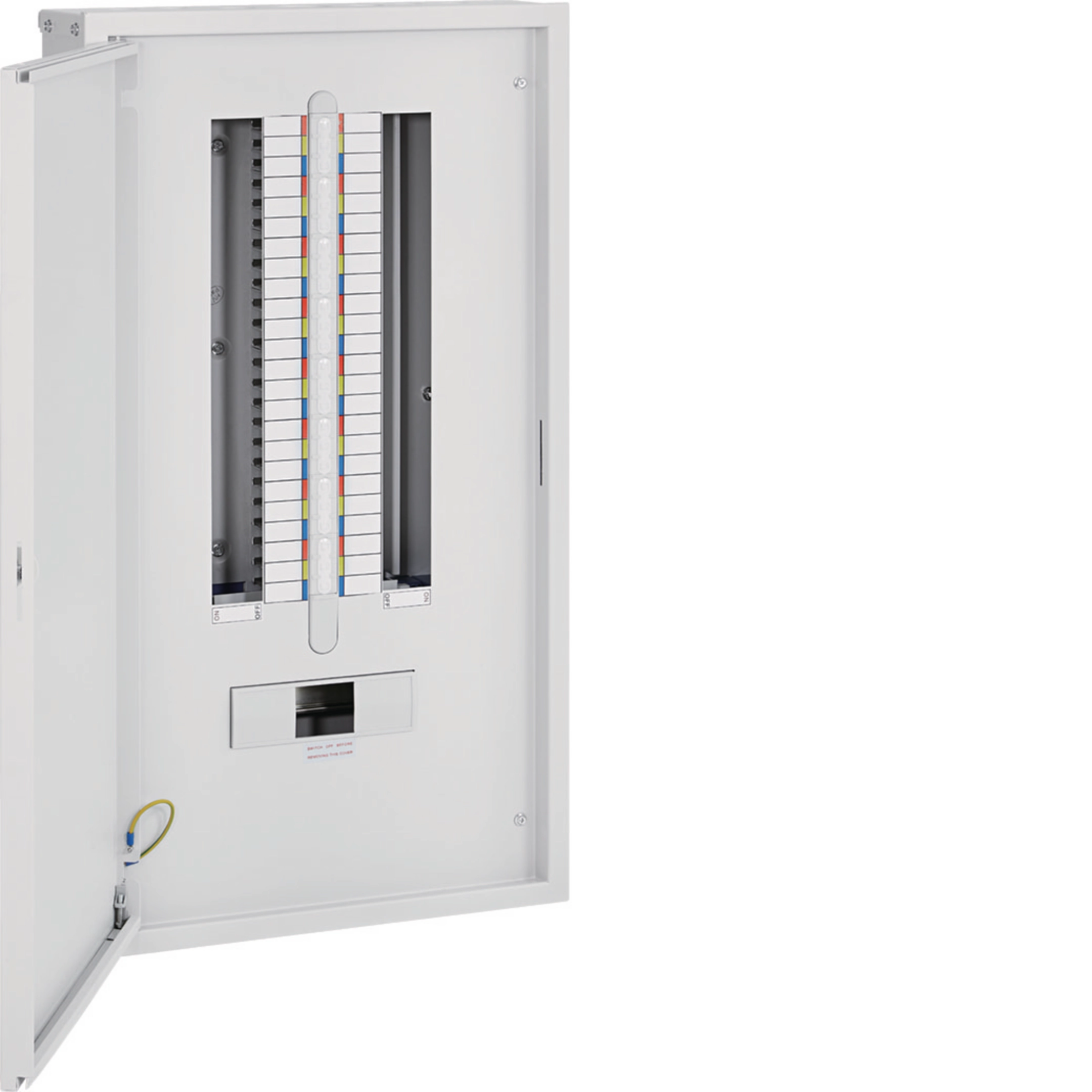

125A TPN BOARD,INVICTA,16WAY,SURFACE,FOR 50 OC TESTING JK1B16S2
EAN-Nr.
3250611023173
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for low-voltage switch technology 1 products available -
Accessories/spare parts for low-voltage switch technology 1 products available
Technical characteristics
Connection
-
Number of accessible phases3
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Breaking and opening capacity Idm0
Equipment
-
Has mounting plateNo
-
Equipped with switchNo switch
-
Number of switches0
-
Type of busbar chassisFixed load chassis
Capacity
-
Number of modules0
Dimensions
-
Height820 mm
-
Width445 mm
-
Depth125 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code9002
-
ColourGrey white
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP41
-
Locking typeSpecial tool, Without lock
Architecture
-
Number of poles48
