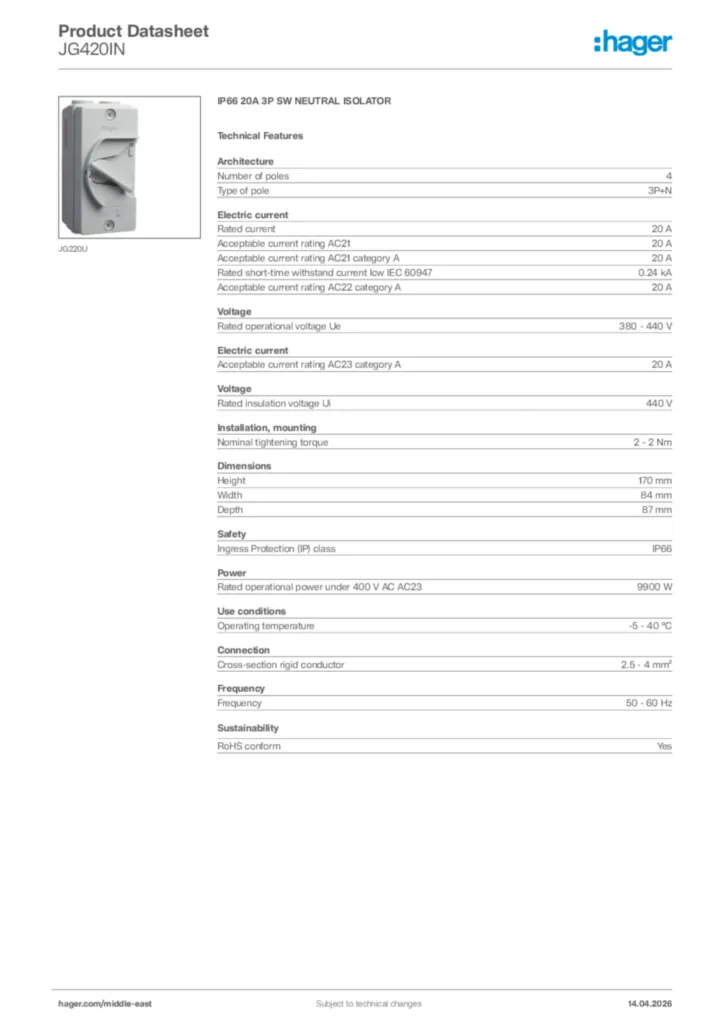

IP66 20A 3P SW NEUTRAL ISOLATOR JG420IN

EAN-Nr.
3250617509756
Packaging
1 piece

Technical characteristics

Architecture
  • Number of poles
    4
  • Type of pole
    3P+N
Electric current
  • Rated current
    20 A
  • Acceptable current rating AC21
    20 A
  • Acceptable current rating AC21 category A
    20 A
  • Rated short-time withstand current Icw IEC 60947
    0.24 kA
  • Acceptable current rating AC22 category A
    20 A
  • Acceptable current rating AC23 category A
    20 A
Voltage
  • Rated operational voltage Ue
    380 - 440 V
  • Rated insulation voltage Ui
    440 V
Installation, mounting
  • Nominal tightening torque
    2 - 2 Nm
Dimensions
  • Height
    170 mm
  • Width
    84 mm
  • Depth
    87 mm
Power
  • Rated operational power under 400 V AC AC23
    9,900 W
Safety
  • Ingress Protection (IP) class
    IP66
Use conditions
  • Operating temperature
    -5 - 40 °C
Connection
  • Cross-section rigid conductor
    2.5 - 4 mm²
Frequency
  • Frequency
    50 - 60 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
