IP66 40A 2P ISOLATOR JG240IN

Name: JG240IN
Brand: Hager
SKU: JG240IN-A

EAN-Nr.

3250617509701

Packaging

1 piece

Technical characteristics
Environmental value
Documentations
More products

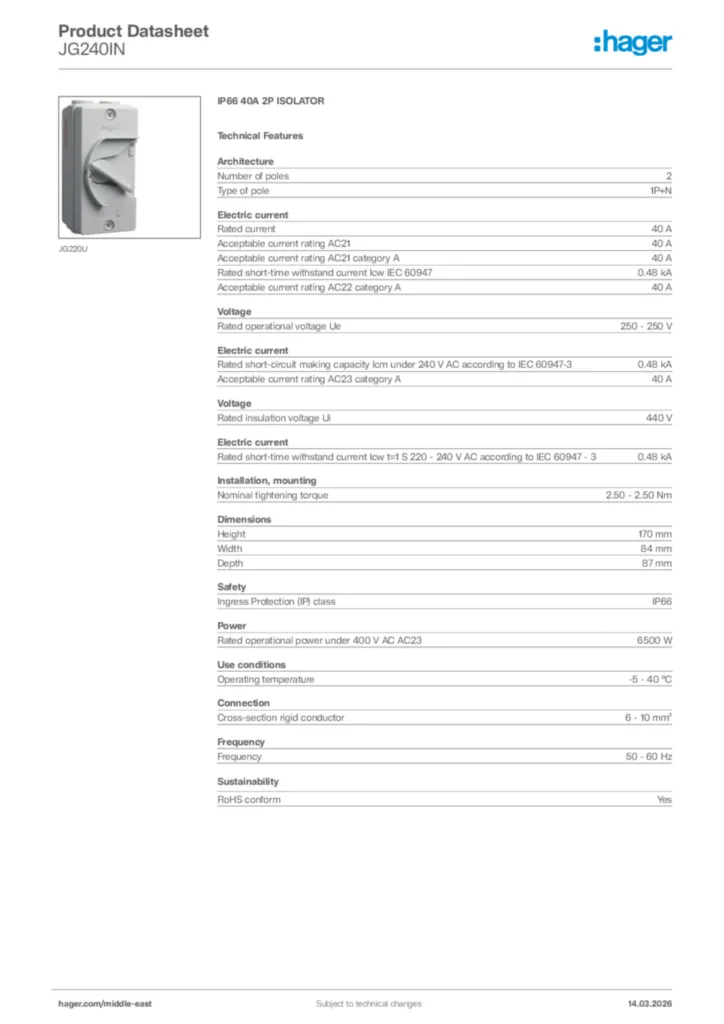

Download the sheet

Technical characteristics

Number of poles

2
Type of pole

1P+N

Rated current

40 A
Acceptable current rating AC21

40 A
Acceptable current rating AC21 category A

40 A
Rated short-time withstand current Icw IEC 60947

0.48 kA
Acceptable current rating AC22 category A

40 A
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-3

0.48 kA
Acceptable current rating AC23 category A

40 A
Rated short-time withstand current Icw t=1 S 220 - 240 V AC according to IEC 60947 - 3

0.48 kA

Rated operational voltage Ue

250 - 250 V
Rated insulation voltage Ui

440 V

Nominal tightening torque

2.50 - 2.50 Nm

Height

170 mm
Width

84 mm
Depth

87 mm

Rated operational power under 400 V AC AC23

6,500 W

Ingress Protection (IP) class

IP66

Operating temperature

-5 - 40 °C

Cross-section rigid conductor

6 - 10 mm²

Frequency

50 - 60 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
