Moulded Case Circuit Breaker X250 4P 40kA 160A TM HNB161U

Name: HNB161U
Brand: Hager
SKU: HNB161U1

EAN-Nr.

3250613347703

Packaging

1 piece

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical characteristics
Environmental value
Documentations

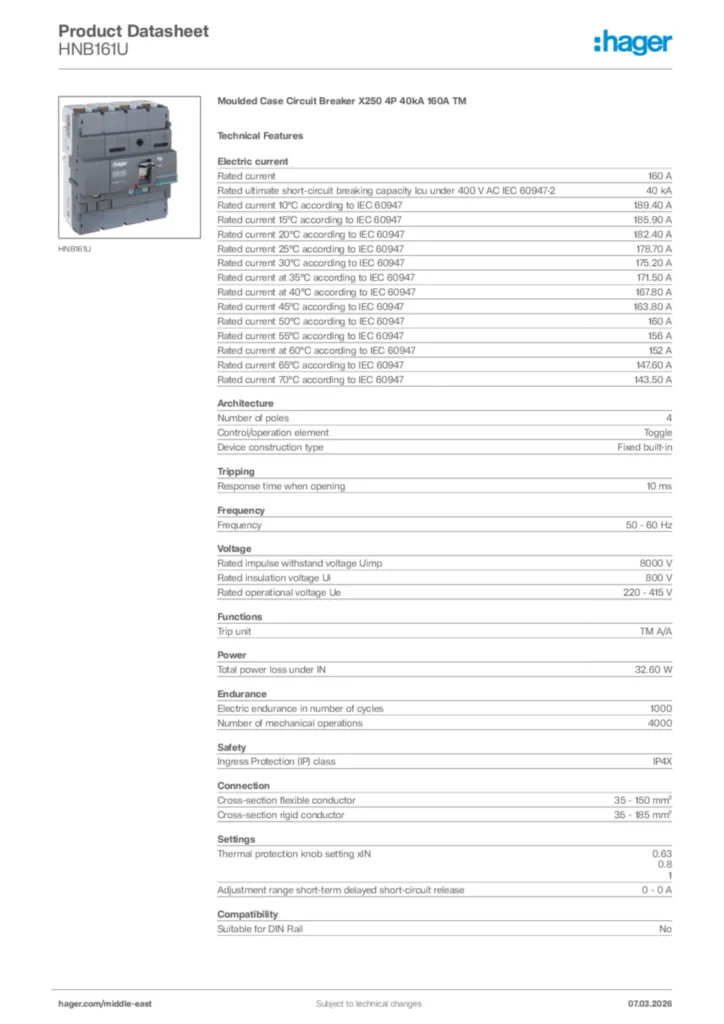

Download the sheet

Complete your system

Phase separation functions 1 products available
Handle for power circuit breaker 2 products available
Locking interlocking functions 1 products available
Under voltage coil 3 products available
Connection Functions 1 products available
Auxiliaries interlocking cable 1 products available

Technical characteristics

Rated current

160 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

40 kA
Rated current 10°C according to IEC 60947

189.40 A
Rated current 15°C according to IEC 60947

185.90 A
Rated current 20°C according to IEC 60947

182.40 A
Rated current 25°C according to IEC 60947

178.70 A
Rated current 30°C according to IEC 60947

175.20 A
Rated current at 35°C according to IEC 60947

171.50 A
Rated current at 40°C according to IEC 60947

167.80 A
Rated current 45°C according to IEC 60947

163.80 A
Rated current 50°C according to IEC 60947

160 A
Rated current 55°C according to IEC 60947

156 A
Rated current at 60°C according to IEC 60947

152 A
Rated current 65°C according to IEC 60947

147.60 A
Rated current 70°C according to IEC 60947

143.50 A

Number of poles

4
Control/operation element

Toggle
Device construction type

Fixed built-in

Response time when opening

10 ms

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8,000 V
Rated insulation voltage Ui

800 V
Rated operational voltage Ue

220 - 415 V

Trip unit

TM A/A

Total power loss under IN

32.60 W

Electric endurance in number of cycles

1,000
Number of mechanical operations

4,000

Ingress Protection (IP) class

IP4X

Cross-section flexible conductor

35 - 150 mm²
Cross-section rigid conductor

35 - 185 mm²

Thermal protection knob setting xIN

0.63, 0.8, 1
Adjustment range short-term delayed short-circuit release

0 - 0 A

Suitable for DIN Rail

No

Mounting-/Connection Position

Front
Nominal tightening torque

12 - 12 Nm

Magnetic protection trip time

0 - 0 ms

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
