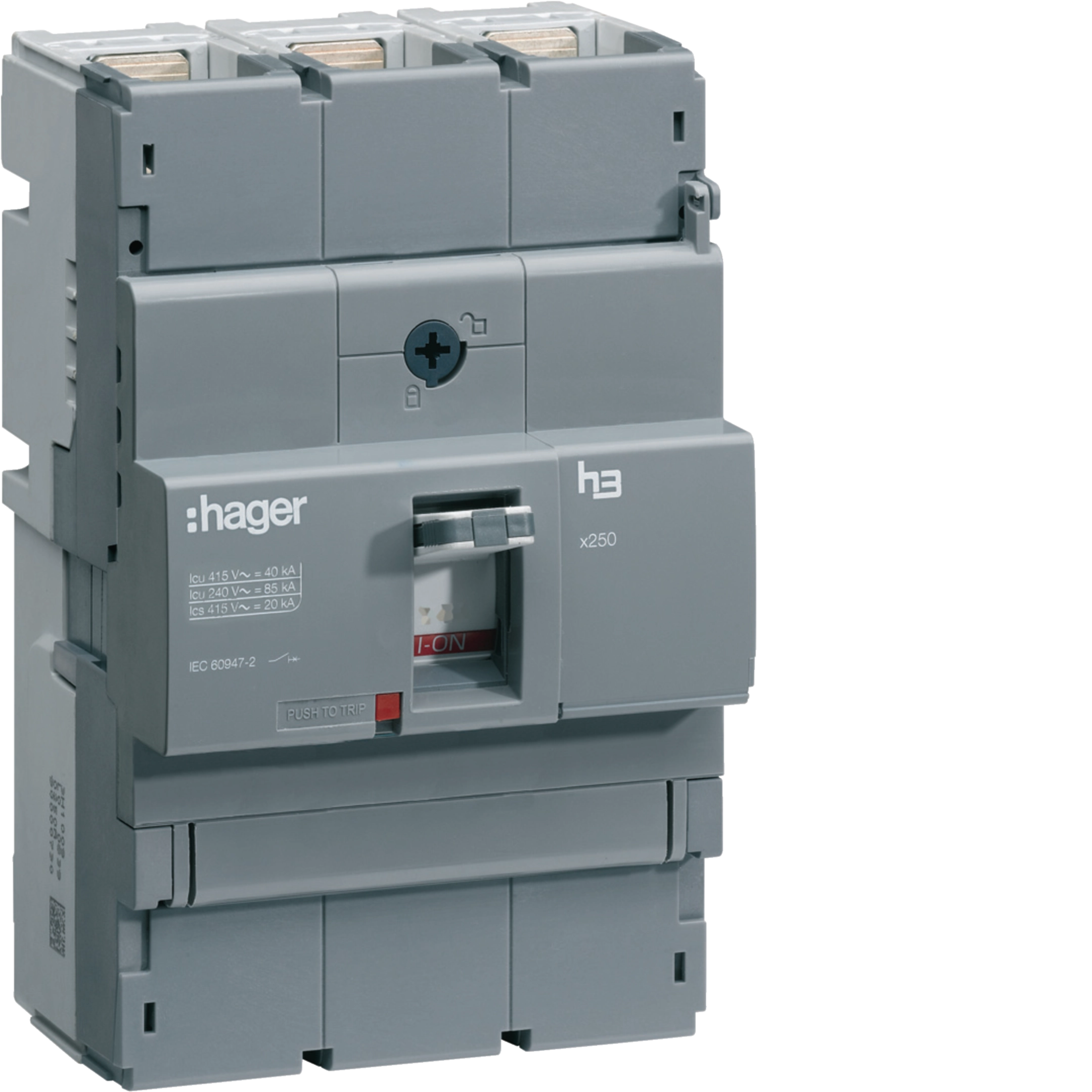

Moulded Case Circuit Breaker x250 3P 40kA 100A TM HNB100Z

Name: HNB100Z
Brand: Hager
SKU: HNB100Z

EAN-Nr.

3250613149864

Packaging

1 piece

Accessories
Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Complete your system

Connection Functions 3 products available
Shunt release 1 products available
Motor operator 1 products available
Auxiliaries contact block 2 products available
Auxiliaries interlocking cable 1 products available
Under voltage coil 3 products available

Technical characteristics

Rated current

100 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

40 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA
Rated current 10°C according to IEC 60947

125 A
Rated current 15°C according to IEC 60947

122.20 A
Rated current 20°C according to IEC 60947

119.30 A
Rated current 25°C according to IEC 60947

116.20 A
Rated current 30°C according to IEC 60947

113.20 A
Rated current at 35°C according to IEC 60947

110 A
Rated current at 40°C according to IEC 60947

106.80 A
Rated current 45°C according to IEC 60947

103.40 A
Rated current 50°C according to IEC 60947

100 A
Rated current 55°C according to IEC 60947

96.40 A
Rated current at 60°C according to IEC 60947

92.80 A
Rated current 65°C according to IEC 60947

89.10 A
Rated current 70°C according to IEC 60947

85.40 A

Number of poles

3
Control/operation element

Toggle
Device construction type

Fixed built-in

Response time when opening

10 ms

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8,000 V
Rated insulation voltage Ui

800 V

Trip unit

TM F/F

Total power loss under IN

17.70 W

Electric endurance in number of cycles

1,000
Number of mechanical operations

4,000

Ingress Protection (IP) class

IP4X

Cross-section flexible conductor

35 - 150 mm²
Cross-section rigid conductor

35 - 185 mm²

Thermal protection knob setting xIN

1, 1
Adjustment range short-term delayed short-circuit release

0 - 0 A

Suitable for DIN Rail

No

Nominal tightening torque

12 - 12 Nm
Mounting-/Connection Position

Front

Magnetic protection trip time

0 - 0 ms

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
