Moulded Case Circuit Breaker X160 3P 40kA 25A HNA025U

EAN-Nr.

3250613130527

Packaging

1 piece

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical characteristics
Documentations

Download the sheet

Complete your system

Terminal cover 2 products available
DIN rail adapter 1 products available
Phase separation functions 1 products available
Locking interlocking functions 1 products available
Connection Functions 2 products available
Handle for power circuit breaker 2 products available

Technical characteristics

Rated current

25 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

40 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA

Number of poles

3

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8,000 V
Rated insulation voltage Ui

690 V
Rated operational voltage Ue

220 - 415 V

Trip unit

TM A/F

Total power loss under IN

13.70 W

Electric endurance in number of cycles

10,000
Number of mechanical operations

20,000

Ingress Protection (IP) class

IP4X

Cross-section flexible conductor

4 - 70 mm²
Cross-section rigid conductor

4 - 95 mm²

Nominal tightening torque

6 - 6 Nm
Mounting-/Connection Position

Front

Type of connection

Screw terminal

Thermal protection knob setting xIN

0.63, 0.8, 1
Adjustment range short-term delayed short-circuit release

0 - 0 A

Downloads

Product Image HNA025U
Product datasheet

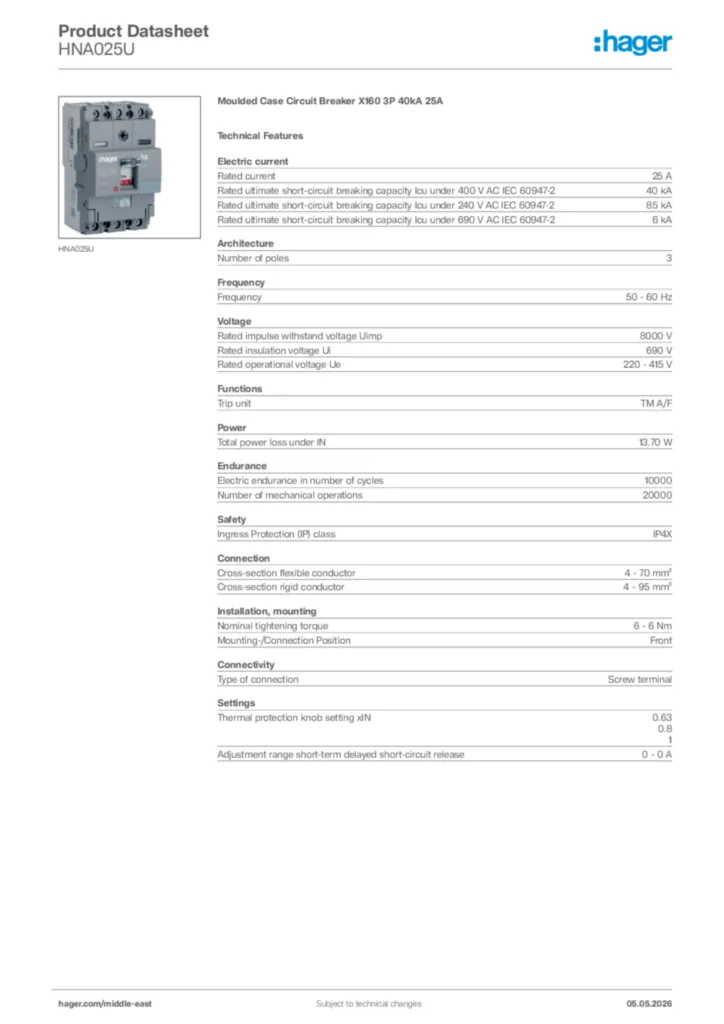

Hager Product data sheet HNA025U
