Switch h630 3P 630A HCD630H
EAN-Nr.
3250613363116
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Under voltage coil 2 products available -
Shunt release 3 products available -
Handle for power circuit breaker 2 products available -
Auxiliaries interlocking cable 1 products available -
Auxiliaries contact block 2 products available -
Motor operator 1 products available
Complete your system
Technical characteristics
Electric current
-
Rated current630 A
Architecture
-
Number of poles3
-
Control/operation elementToggle
Connection
-
Cross-section rigid conductor35 - 240 mm²
-
Cross-section flexible conductor35 - 240 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Motor drive optionalYes
Functions
-
Trip unitSwitch
Power
-
Power loss per pole at In50 W
-
Total power loss under IN150 W
-
Rated operational power under 400 V AC AC1414,000 W
Use conditions
-
Operating temperature-25 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP4X
Downloads
-
Product datasheet

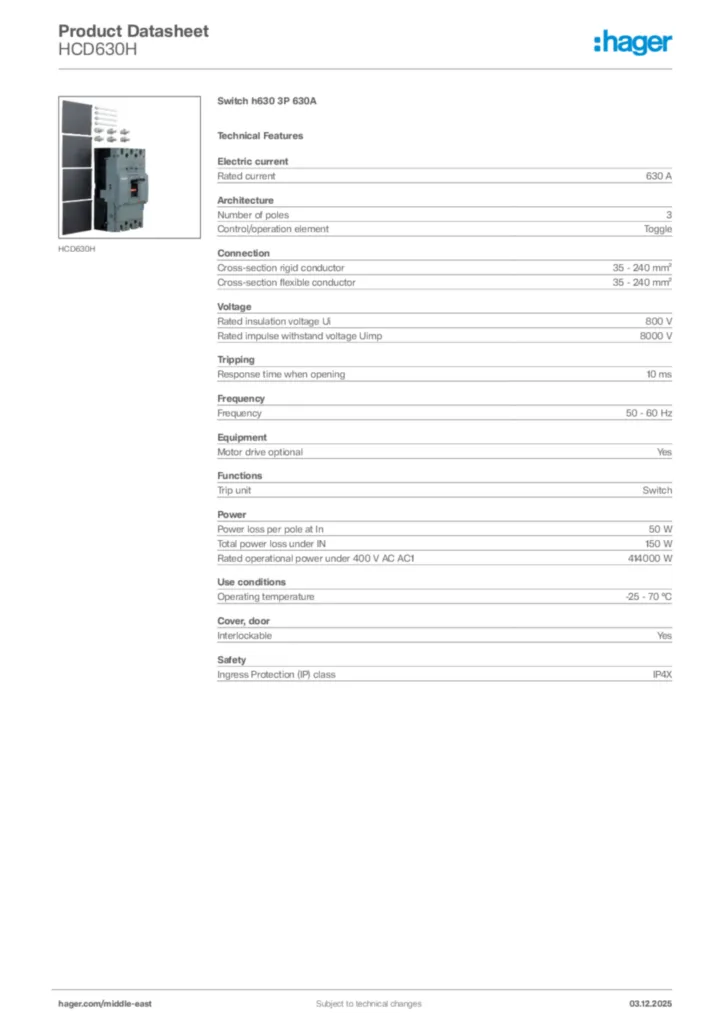

Hager Product data sheet HCD630H
