    • HCD400H
    EAN
    3250613363093
    Packaging
    1 Piece
    • Switch disconnectors

    Switch h630 3P 400A HCD400H

    Phase out product: please contact your electrical wholesaler for availability

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Switch h630 3P 400A

    HCD400H

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products

    Complete your system

    Optional accessories

    • Connection Functions 2 products available
    • Shunt release 3 products available
    • Auxiliaries interlocking cable 1 products available
    • Auxiliaries contact block 2 products available
    • Padlock barrier for switch 1 products available

    Complete your system

    • Connection Functions
    • Shunt release
    • Auxiliaries interlocking cable
    • Auxiliaries contact block
    • Padlock barrier for switch
    • HYD011H

      Spreader H400-H630 3P collar

      €0.00  / *
    • HYD031H

      Rear connection h/x/P 3P 400A

      €0.00  / *
    • HXC004H

      Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)

      €0.00  / *
    • HXC005H

      Shunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)

      €0.00  / *
    • HXC001H

      Shunt trip Release 24V DC (h250-h400-h630-h800-h1000)

      €0.00  / *
    • HXD068H

      Electrical interlock for Motor type A (h400-h630-x630-P630-h800-h1000)

      €0.00  / *
    • HXC021H

      Auxiliary contact 1NO+1NC 230V AC (h250-h400-h630-h800-h1000-h1600)

      €0.00  / *
    • HXC024H

      Alarm contact 1NO+1NC 230V (h250-h400-h630-h800-h1000-h1600)

      €0.00  / *
    • HXD039H

      Padlock h400-h1000

      €0.00  / *

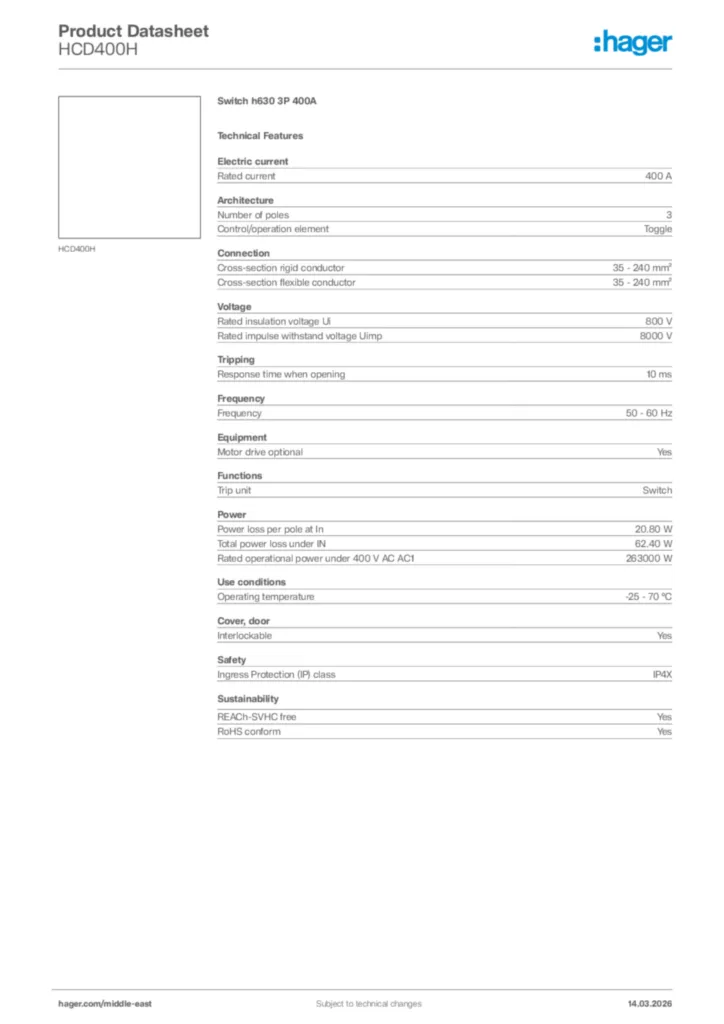

    Technical properties

    Electric current
    • Rated current IN
      400 A
    Architecture
    • Number of poles
      3
    • Control/operation element
      Toggle
    Connection
    • Cross-section rigid conductor
      35 - 240 mm²
    • Cross-section flexible conductor
      35 - 240 mm²
    Voltage
    • Rated insulation voltage Ui
      800 V
    • Rated impulse withstand voltage Uimp
      8,000 V
    • Rated operational voltage Ue
      220 - 690 V
    Tripping
    • Response time when opening
      10 ms
    Frequency
    • Frequency
      50 - 60 Hz
    Equipment
    • Motor drive optional
      Yes
    Functions
    • Trip unit
      Switch
    Power
    • Power loss per pole at In
      20.80 W
    • Power dissipation at IN
      62.40 W
    • Rated operational power under 400 V AC AC1
      263,000 W
    Use conditions
    • Operating temperature
      -25 - 70 °C
    Cover, door
    • Interlockable
      Yes
    Safety
    • Ingress Protection (IP) class
      IP4X

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration HCD400H
    PDF
    RoHS report HCD400H
    PDF

    Downloads

    • Image HCD400H  | Hager

      Product Image HCD400H

    • Installation manual

      Image Installation manual International 2021-06-07  | Hager

      Installation manual International 2021-06-07

      PDF
      7,13 MB
    • Declaration of conformity

      Image Declaration  | Hager

      Declaration

      Declaration of conformity International 2022-06-21

      PDF
      283,85 kB
      Image Declaration of conformity en-US 2026-07-14  | Hager

      Declaration of conformity en-US 2026-07-14

      PDF
      259,70 kB
