Enclosure, NewVegaD, 600x550x193mm, 72 modules, surface-mounted, distribution FD32DN
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 2 products available -
Mounting accessories 1 products available
Technical characteristics
Connection
-
Number of conduit inlets4
Voltage
-
Nominal voltage230 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current IN160 A
Equipment
-
Number of rails3
-
Number of rows3
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules72
Dimensions
-
Height600 mm
-
Width550 mm
-
Depth193 mm
-
Number of width units24
Cover, door
-
Number of cabinet doors0
-
Number of locks0
-
Door/cover is transparentNo
-
Cabinet door typeSingle door
Materials
-
MaterialMetal, Plastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

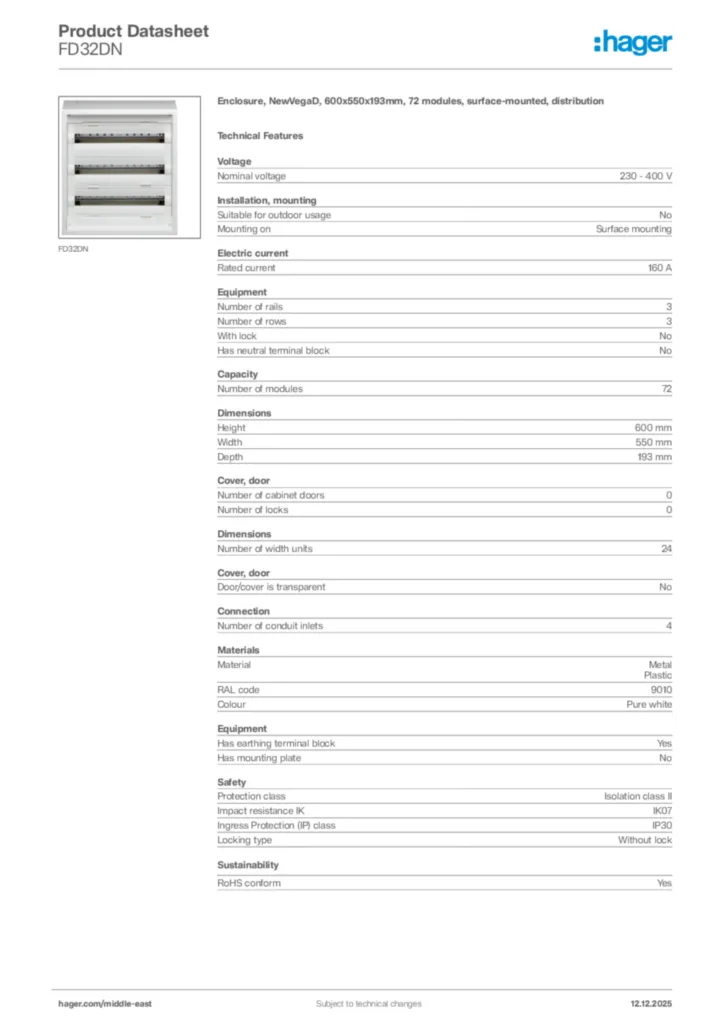

Hager Product data sheet FD32DN
Enclosure, NewVegaD, 600x550x193mm, 72 modules, surface-mounted, distribution
PDF -
Installation manual
Mounting instruction for VegaD FD surface enclosure
Wall / door / internal system / accessories mounting
PDF7,44 MB -
Handbook
Handbook en-GB 2022-10-10
PDF24,05 MB
Technical manual for New VegaD enclosures
Surface, flush boards and accessories (FR)
PDF11,49 MB
Technical manual for New VegaD enclosures
Surface, flush boards and accessories (EN)
PDF11,76 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-11
PDF190,72 kB
