Enclosure, NewVegaD, 687x550x150mm, 72 modules, flush-mounted, distribution FU32DN

EAN-Nr.
3250612710720
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Enclosure, NewVegaD, 687x550x150mm, 72 modules, flush-mounted, distribution

FU32DN

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Door/operating panel 2 products available
  • Mounting accessories 1 products available

Complete your system

  • Door/operating panel
  • Mounting accessories
  • FD32TN

    Glazed door, NewVegaD, 550x500mm, for 3-rows enclosure
    0.00 €  / *
  • FD32PN

    Plain door, NewVegaD, 550x500mm, for 3-rows enclosure
    0.00 €  / *
  • ZZ42BS

    Kit with 4 plastic screws for frame mounting of VegaD/NewVegaD
    0.00 €  / *

Technical characteristics

Connection
  • Number of conduit inlets
    4
Installation, mounting
  • Suitable for outdoor usage
    No
  • Mounting on
    Flush mounting
Electric current
  • Rated current
    160 A
Equipment
  • Number of rails
    3
  • Number of rows
    3
  • Number of section in width
    2
  • With lock
    No
  • Has neutral terminal block
    No
  • Has earthing terminal block
    No
  • Has mounting plate
    No
Capacity
  • Number of modules
    72
Dimensions
  • Height
    687 mm
  • Width
    600 mm
  • Depth
    150 mm
  • Built-in width
    550 mm
  • Built-in depth
    110 mm
  • Number of width units
    24
Cover, door
  • Door/cover is transparent
    No
Materials
  • Material
    Metal, Plastic
  • RAL code
    9010
  • Colour
    Pure white
Safety
  • Protection class
    Isolation class II
  • Impact resistance IK
    IK07
  • Ingress Protection (IP) class
    IP30
  • Locking type
    Without lock

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Certifications and documents

Encl., NewVegaD, 900x550x193mm, 120 mod.
PDF
472,28 kB
Hager REACH declaration FU32DN
PDF
Hager RoHS report FU32DN
PDF

Downloads

  • Image FU32DN | Hager

    Product Image FU32DN

  • Product datasheet

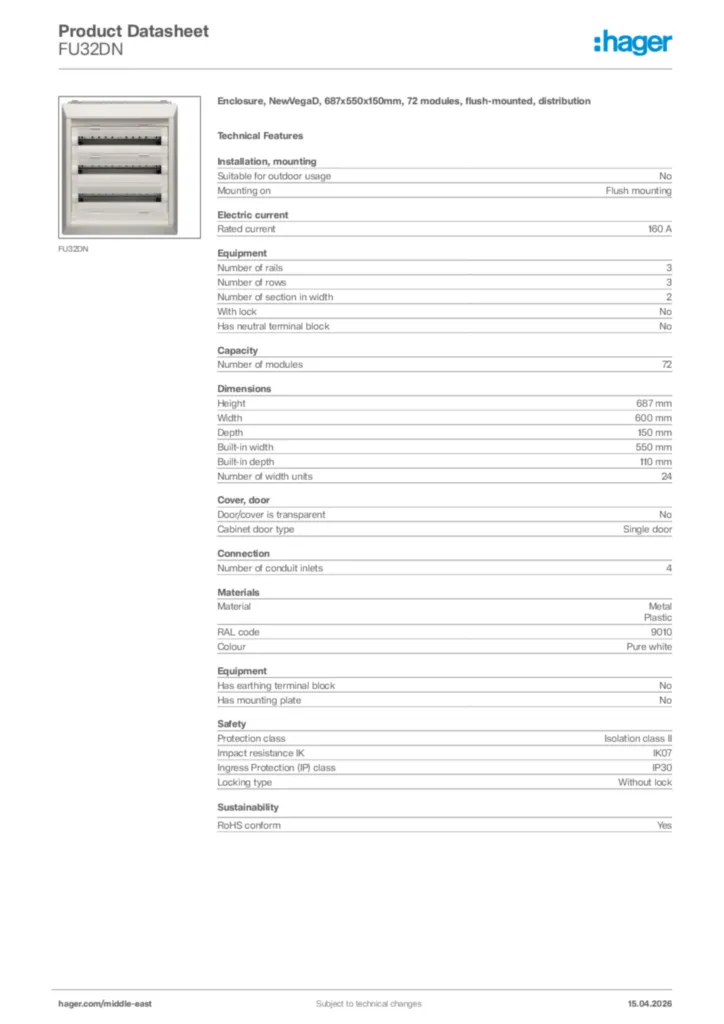

    Image Hager Product data sheet FU32DN | Hager

    Hager Product data sheet FU32DN

    Enclosure, NewVegaD, 687x550x150mm, 72 modules, flush-mounted, distribution

    PDF

  • Installation manual

    Image Installation manual International 2020-01-01 | Hager

    Installation manual International 2020-01-01

    PDF
    11,99 MB

  • Handbook

    Image Handbook en-GB 2023-07-07 | Hager

    Handbook en-GB 2023-07-07

    PDF
    11,76 MB
    Image Handbook fr-FR 2023-09-11 | Hager

    Handbook fr-FR 2023-09-11

    PDF
    11,49 MB
    Image Handbook fr-FR 2023-09-28 | Hager

    Handbook fr-FR 2023-09-28

    PDF
    10,54 MB

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2022-10-11

    PDF
    190,72 kB
