Industrial contactor 32A-AC3 / coil 220V 50-60Hz EW032_C

Accessories
Technical characteristics
Environmental value
Documentations
More products

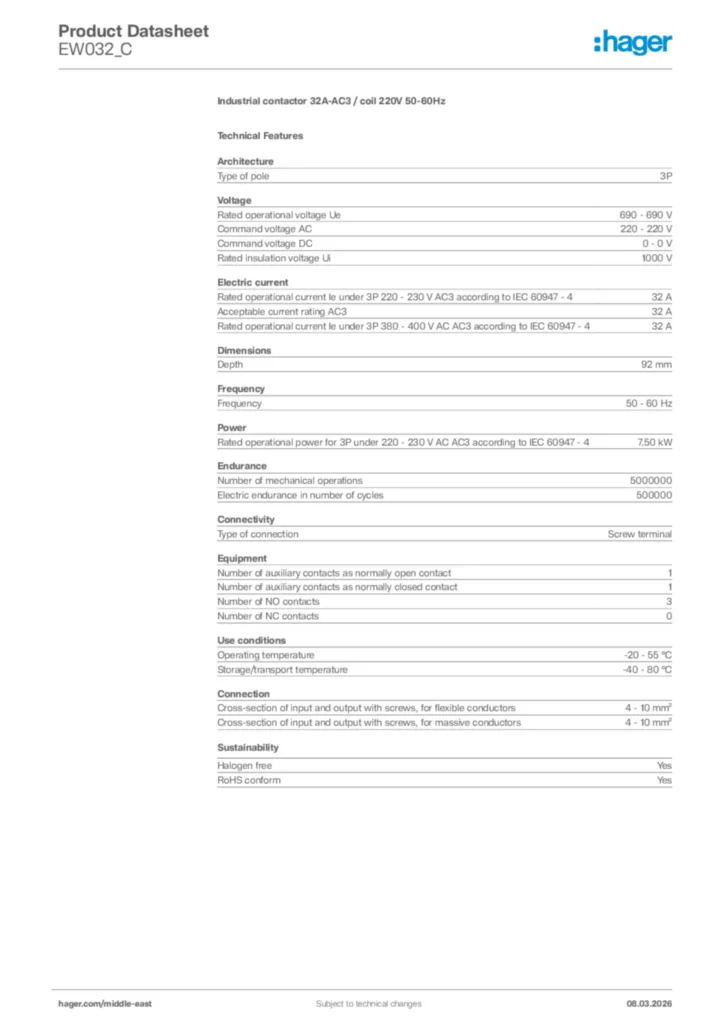

Download the sheet

Complete your system

Auxiliary device for distribution board devices 1 products available
Auxiliary device for distribution board devices 1 products available

Technical characteristics

Type of pole

3P

Rated operational voltage Ue

690 - 690 V
Command voltage AC

220 - 220 V
Command voltage DC

0 - 0 V
Rated insulation voltage Ui

1,000 V

Rated operational current Ie under 3P 220 - 230 V AC3 according to IEC 60947 - 4

32 A
Acceptable current rating AC3

32 A
Rated operational current Ie under 3P 380 - 400 V AC AC3 according to IEC 60947 - 4

32 A

Depth

92 mm

Frequency

50 - 60 Hz

Rated operational power for 3P under 220 - 230 V AC AC3 according to IEC 60947 - 4

7.50 kW

Number of mechanical operations

5,000,000
Electric endurance in number of cycles

500,000

Type of connection

Screw terminal

Cross-section of input and output with screws, for flexible conductors

4 - 10 mm²
Cross-section of input and output with screws, for massive conductors

4 - 10 mm²

Number of auxiliary contacts as normally open contact

1
Number of auxiliary contacts as normally closed contact

1
Number of NO contacts

3
Number of NC contacts

0

Operating temperature

-20 - 55 °C
Storage/transport temperature

-40 - 80 °C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

Halogen free Yes
