Universal Remote Control Dimmers 300W Comfort EVN012
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available
Technical characteristics
Voltage
-
Operating voltage230 - 230 V
-
Rated operational voltage Ue230 - 230 V
Connectivity
-
With bus system KNX radioNo
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourGrey
-
RAL code7035
-
MaterialPlastic, Thermoplastic
Dimensions
-
Height90 mm
-
Width17.50 mm
-
Depth65 mm
Architecture
-
Control/operation elementSwitch
Power
-
Power consumption during operation2.10 VA
-
Power consumption standby0.2 W
-
230 V incandescent and halogen lamp300 W
-
Power incandescent lamp300 - 300 W
Lighting
-
Dimmable 230 V LED lamp60 - 60 W
-
LED lamp power60 W
Use conditions
-
Operating temperature-10 - +45 °C
Connection
-
Cross-section rigid conductor1.5 - 6 mm²
-
Cross-section flexible conductor1.5 - 6 mm²
Capacity
-
Number of modules1
Texts
-
Dimming principleAutomatic load detection
-
FuseWith electronic short-circuit and overload protection
-
Installation modeFor mounting on DIN rail
-
Type of connectionWith screw terminals
-
JunctionConnection for illuminated (max. 5 mA) or standard push-buttons
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

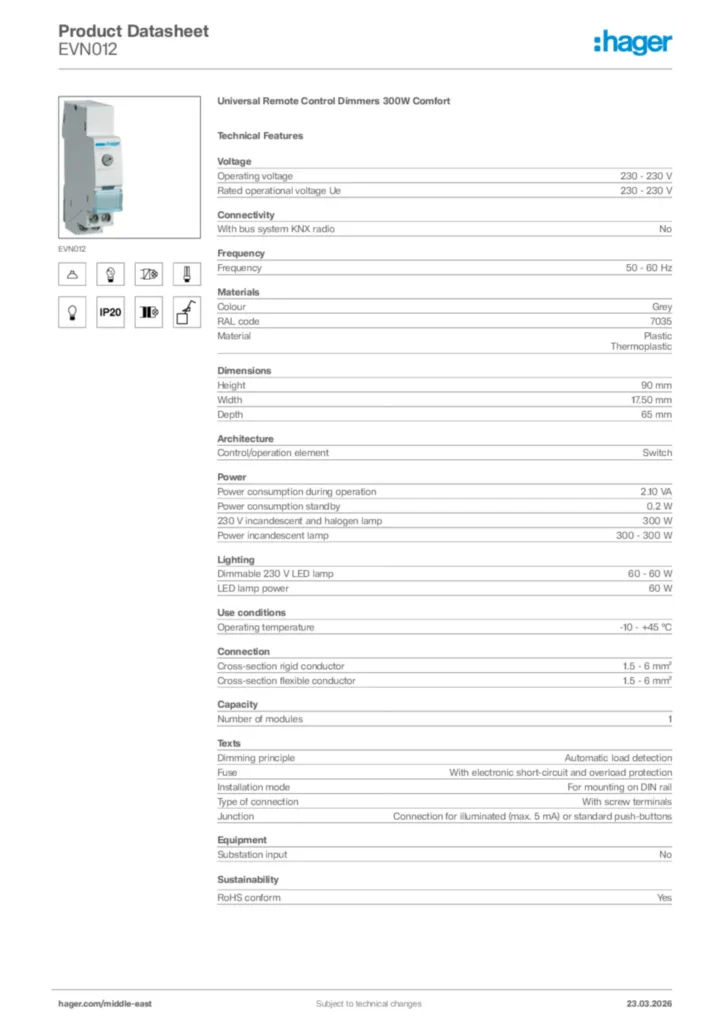

Hager Product data sheet EVN012
Universal Remote Control Dimmers 300W Comfort
PDF -
Installation manual
Installation manual en-GB, fr-FR, de-DE, nl-NL 2011-02-24
PDF1,27 MB
