Remote Control Dimmer universal 500W EVN004
EAN-Nr.
3250617573979
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available
Technical characteristics
Voltage
-
Operating voltage195.5 - 253 V
-
Rated operational voltage Ue230 - 230 V
Connectivity
-
With bus system KNX radioNo
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourGrey
-
RAL code7035
-
MaterialPlastic
Dimensions
-
Height85 mm
-
Width35 mm
-
Depth62 mm
Architecture
-
Control/operation elementSingle push button
Power
-
Power consumption during operation4.50 VA
-
Power consumption standby0.20 W
-
230 V incandescent and halogen lamp500 W
-
Power incandescent lamp500 - 500 W
Lighting
-
Dimmable 230 V LED lamp100 - 100 W
-
LED lamp power100 W
Use conditions
-
Operating temperature-10 - +45 °C
Connection
-
Cross-section rigid conductor1.5 - 6 mm²
-
Cross-section flexible conductor1.5 - 6 mm²
Capacity
-
Number of modules2
Texts
-
Dimming principleAutomatic load detection
-
FuseWith electronic short-circuit and overload protection
-
VoltageOthers
-
Installation modeFor mounting on DIN rail
-
Type of connectionWith screw terminals
-
JunctionConnection for illuminated (max. 5 mA) or standard push-buttons
-
Operation and controlNo Bluetooth interface
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

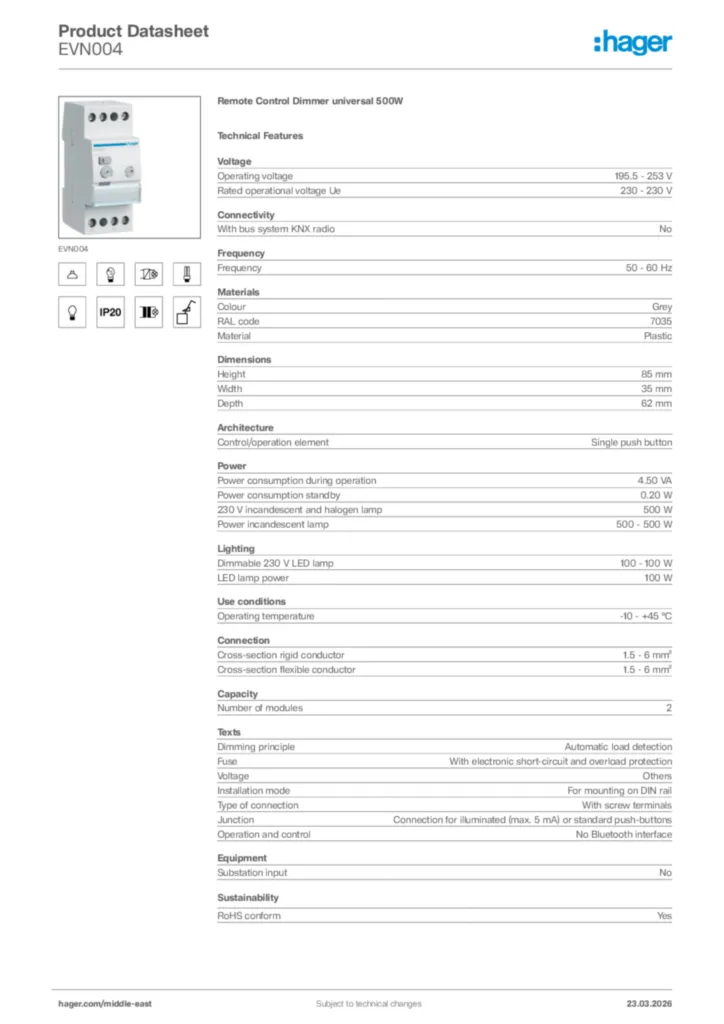

Hager Product data sheet EVN004
