Presence detector 360° monobloc, flush mounted, white EE815
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for movement sensor 2 products available
Technical characteristics
Detection
-
Detection angle360 - 360
-
Type of sensorPresence detector
-
Detection angle horizontal360 - 360
Settings
-
Time delay1 Min - 1 h
-
Response sensitivity adjustableNo
-
Switch off delay time0
-
Switch on delay time0
Lighting
-
Response brightness adjustable5 - 1,000 lx
-
LED lamp power300 W
-
Photocell sensitivity5 - 1,000 lx
Connection
-
Connector/plug typeScrew terminal
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Width80 mm
-
Built-in depth70 mm
-
Recommended installation height2.5 - 3.5 m
-
Installation height2 - 4 m
Use conditions
-
Operating temperature-10 - 45 °C
Materials
-
ColourWhite
-
MaterialPlastic
-
Surface finishMatt
Safety
-
Ingress Protection (IP) classIP41
Installation, mounting
-
Mounting onFlush mounting
-
Suitable for outdoor usageYes
-
Ceiling mounting possibleNo
Texts
-
FunctionCan only be used as individual unit
-
Installation modeWith spring clips for ceiling installation
-
Type of connectionWith screw terminals
Power supply
-
Supply voltage230 V +10%/-15%
Reach distance
-
Max. transmission range frontally7 m
-
Max. transmission range sideways6 m
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

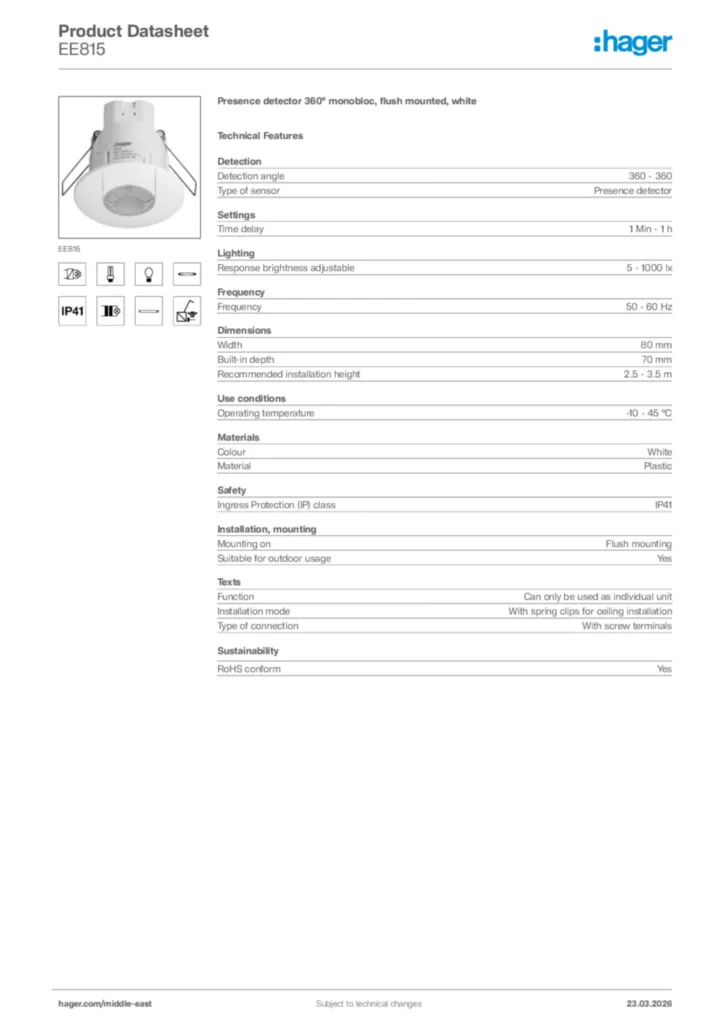

Hager Product data sheet EE815
