1 Phase kWhmeter direct 40A 1M MODBUS MID ECR140D

EAN-Nr.
3250612231423
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

1 Phase kWhmeter direct 40A 1M MODBUS MID

ECR140D

  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Complete your system

Optional accessories

  • Accessories/spare parts for surge protection data networks/MCR-technology 1 products available

Compatible products

  • Referenced by 1 products available

Complete your system

  • Accessories/spare parts for surge protection data networks/MCR-technology
  • SMC120R

    120 Ohm end resistor for MODBUS RTU
    0.00 €  / *

Referenced by

  • TXF121

    KNX interface for electrical energy meters
    0.00 €  / *

Technical characteristics

Architecture
  • Bus system
    MODBUS
  • Type of pole
    1P+N
Electric current
  • Rated current
    40 A
  • Maximum measuring circuit current
    40 A
Capacity
  • Number of modules
    1
Connectivity
  • Type of connection
    Direct connection
  • Connectivity type
    ModBus RS-485 3 wires
Dimensions
  • Height
    92 mm
  • Width
    18 mm
  • Depth
    60 mm
Equipment
  • Type of pulse generator
    Optical
Compatibility
  • Suitable for
    Purchase/supply
Connection
  • Cross-section of metering input
    16 - 16 mm²
  • Cross-section of metering output
    16 - 16 mm²
  • Connector/plug type Bus system
    Bus connection terminal
Installation, mounting
  • Nominal tightening torque
    1 - 1 Nm
  • Mounting on
    DIN rail
Mechanical features
  • Nominal tightening torque digital terminal
    0.50 - 0.50 Nm
Measurement
  • Measuring system
    Direct measurement
  • Type of measuring instrument
    Electronic
  • Current measurement range
    0.25 - 40.0 A
  • Measurement range voltage Ph-N
    92 - 276 V
  • Frequency measuring range
    45 - 65 Hz
Power supply
  • Number of phases for power supply
    1
Functions
  • Accuracy class
    B
  • Tariff type
    - /T1...T8 Modbus
  • Is calibrated
    Yes
Safety
  • Ingress Protection (IP) class
    IP20
Use conditions
  • Operating temperature
    -25 - 55 °C
  • Storage/transport temperature
    -25 - 70 °C
Power
  • Power consumption VA
    2 VA
  • Total power loss under IN
    1 W
Frequency
  • Frequency
    50 - 50 Hz

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration ECR140D
PDF
Hager RoHS report ECR140D
PDF

Downloads

  • Image ECR140D | Hager

    Product Image ECR140D

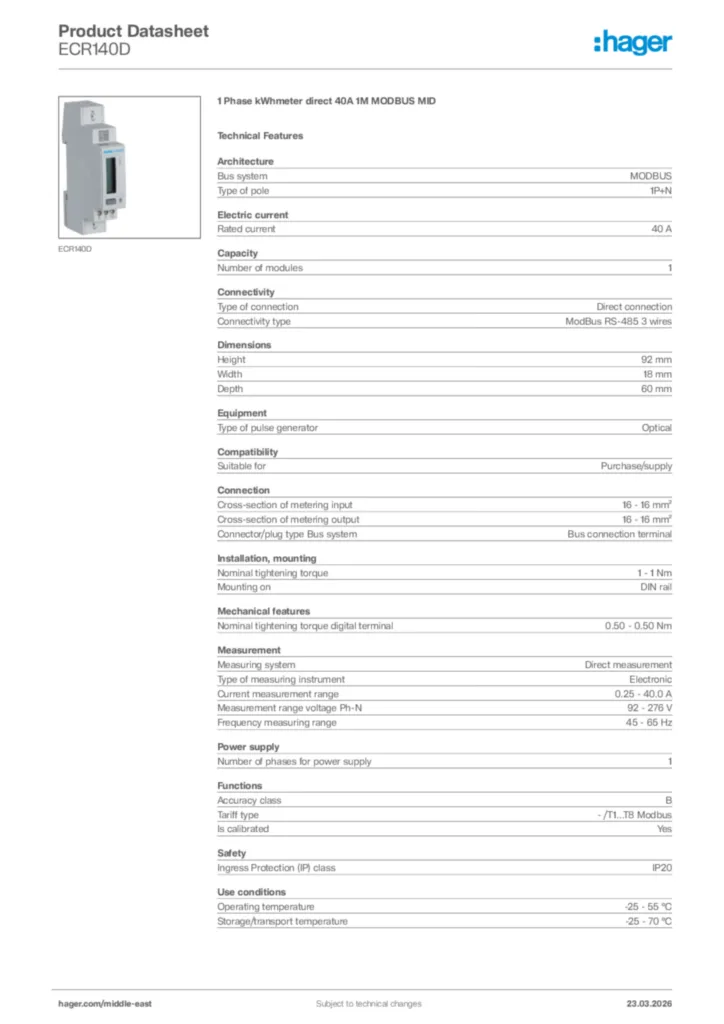

  • Product datasheet

    Image Hager Product data sheet ECR140D | Hager

    Hager Product data sheet ECR140D

    1 Phase kWhmeter direct 40A 1M MODBUS MID

    PDF

  • Product attachment

    Image Modbus table Summary V1 14 | Hager

    Modbus table Summary V1 14

    Product attachment International 2022-10-04

    PDF
    836,11 kB
    Image Product attachment International 2024-04-22 | Hager

    Product attachment International 2024-04-22

    XLS
    177,00 kB

  • Manual

    Image Installer Leaflet ECR140D | Hager

    Installer Leaflet ECR140D

    Manual en-GB, de-DE 2024-01-11

    PDF
    1,91 MB
    Image Installer Leaflet ECR140D | Hager

    Installer Leaflet ECR140D

    Manual ar, pl-PL 2024-01-17

    PDF
    2,00 MB

  • Declaration of conformity

    Image EU Declaration of Conformity | Hager

    EU Declaration of Conformity

    Declaration of conformity en-GB 2024-04-15

    PDF
    451,44 kB
